D. Soft top cover lock cables

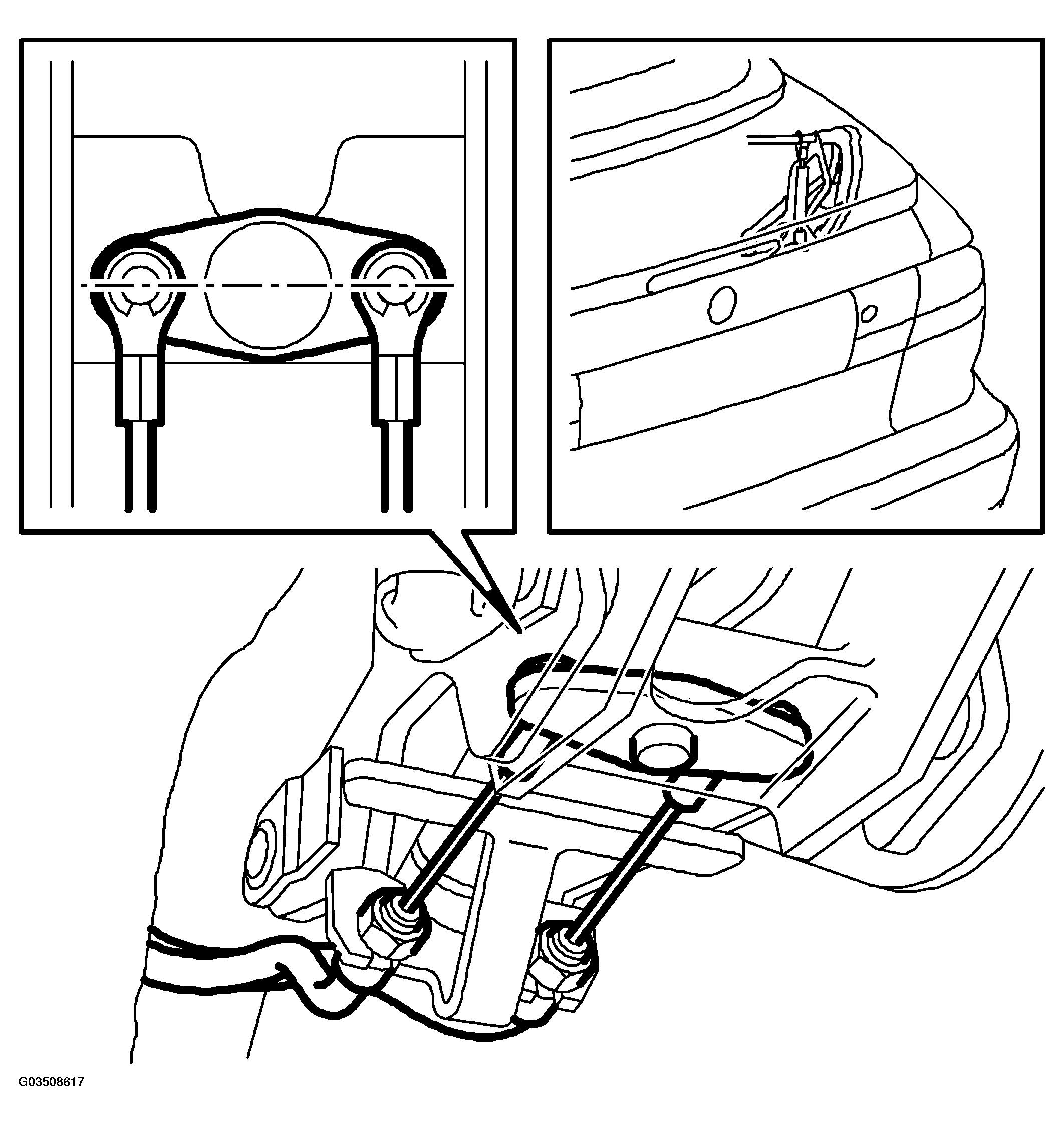

Fig 1: Adjusting Soft Top Cover Drive Mechanism Horizontally

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Adjust the cables so that the lever on the soft top cover drive mechanism is horizontal when the lock is locked.
Check that the distance between the cable adjustment and the cable end is at least 2 mm.

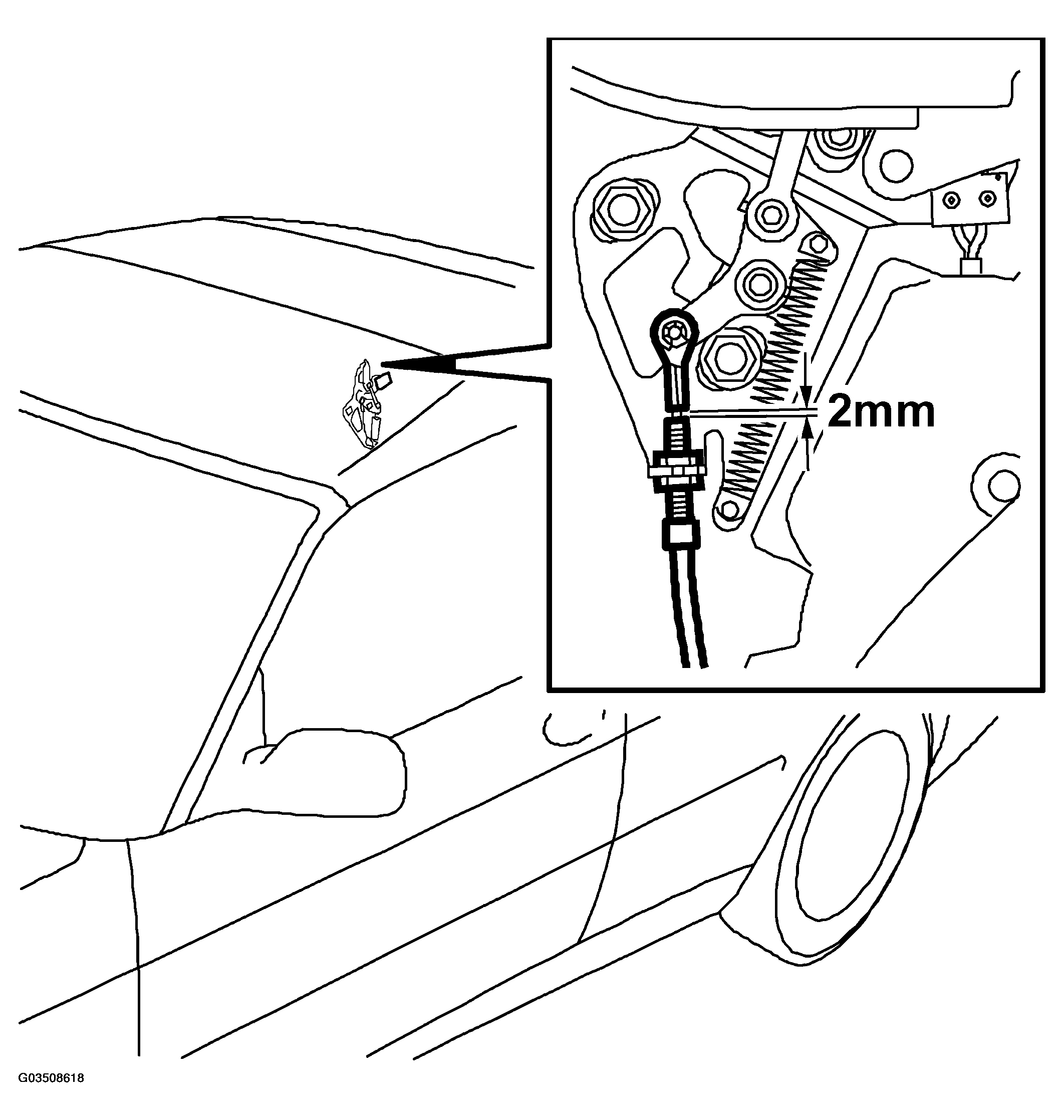

Fig 2: Checking Distance Between Cable Adjustment And Cable End
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Adjust the cable using the cable adjustments by the locks.
Check that the locks open completely.
