B. Lock fittings lateral adjustment

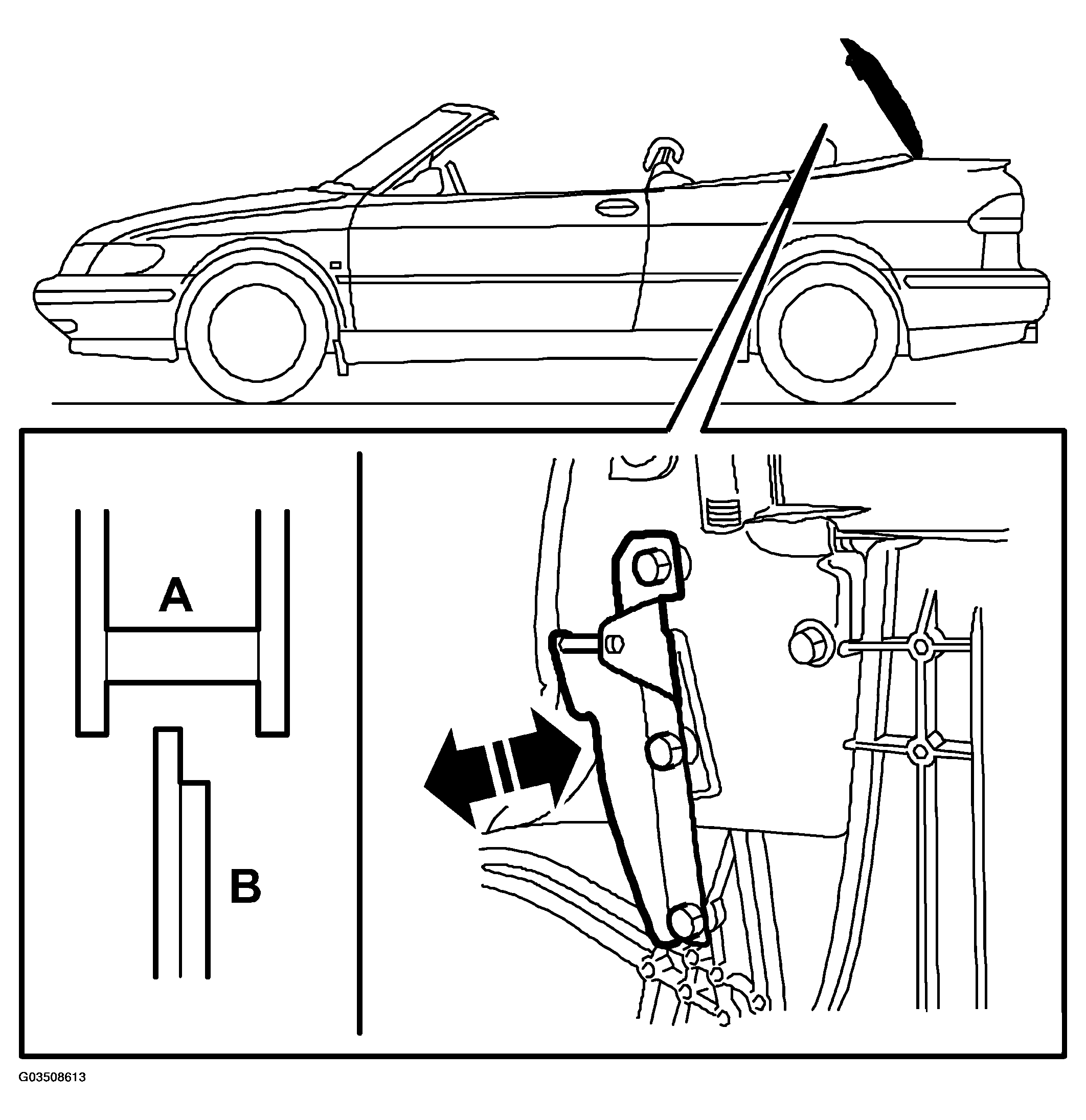

Fig 1: Loosening Lock Fitting Nuts
G03508613Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Loosen the nuts that secure the lock fittings to the soft top cover.
  2. Fold down the soft top cover and adjust the lock fittings (A) so that they strike the middle of the lock (B).
  3. Tighten the nuts that secure the lock fittings.
