Adjustment points for door window
IMPORTANT:
Check the condition of the car battery. Connect a battery charger to the car to improve the result of the adjustment and to avoid discharging the battery while it is being done.

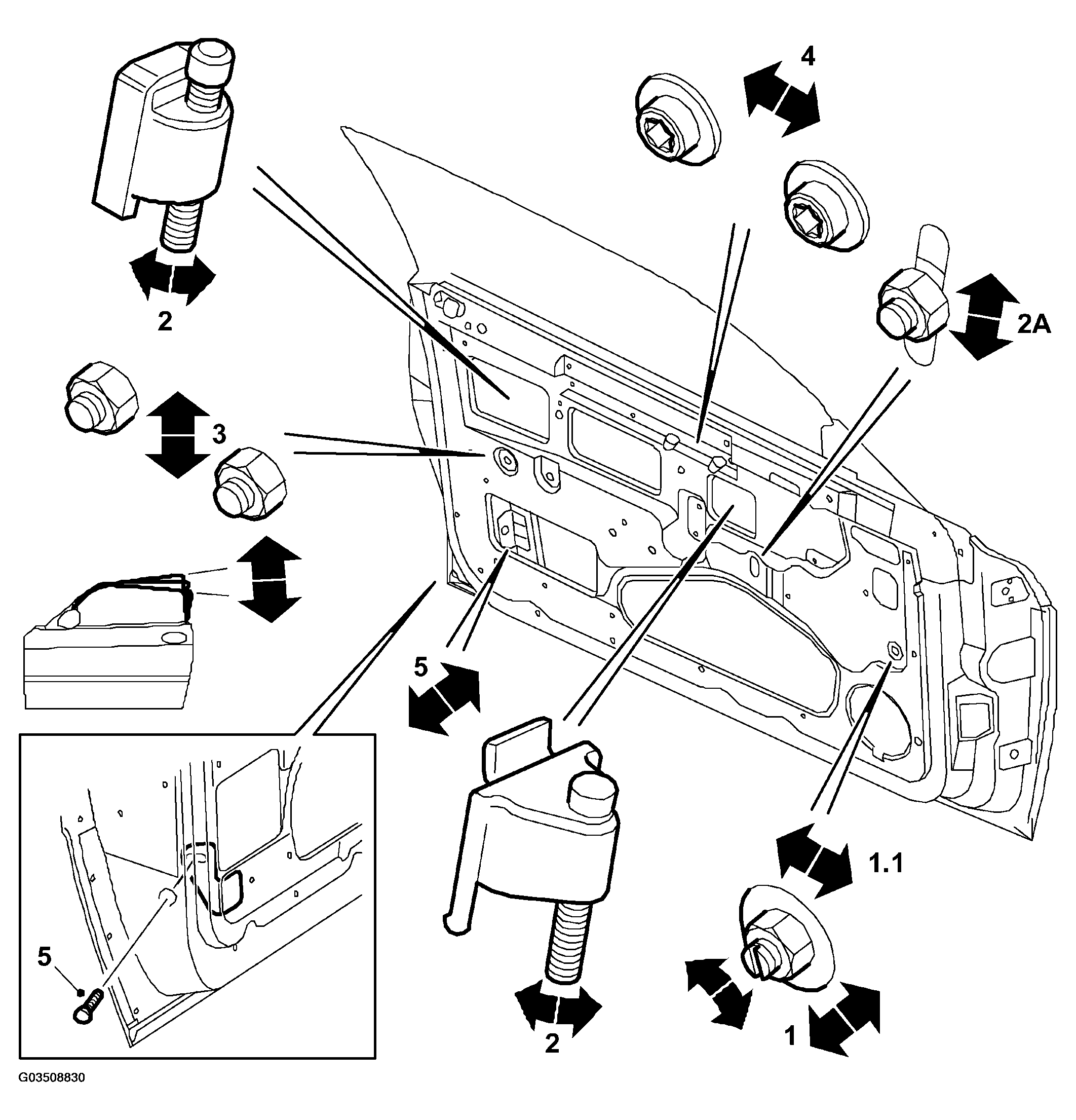

Adjustment 1. Setting the front support rail
- Sideways adjustment affects the door window lateral position at the front edge.
- 1.1. Longitudinal adjustment affects the rail's support for the door window.
Adjustment 2: Setting for door window upper stop .
- Adjustment affects the door window height position in its upper position.
NOTE:
There are two versions of the door window upper stop:
- A. Before VIN number 17008621 there was only one upper stop, ADJUSTMENT 2A.
- C. After VIN number 17008621 there are two extra upper stops, ADJUSTMENT 2, which are added to the former upper stop, ADJUSTMENT 2A.
Adjustment 3. Setting the door window mechanism .
- The adjustment affects the door window longitudinal slope and the height of the door window rear edge and the distribution of the mechanism forces on the front and rear lifting arms.
Adjustment 4. Setting the door window fixing .
- The adjustment affects the door window longitudinal position.
Adjustment 5. Setting the rear support rail .
- Sideways adjustment affects the door window lateral position at the rear edge.
