To fit

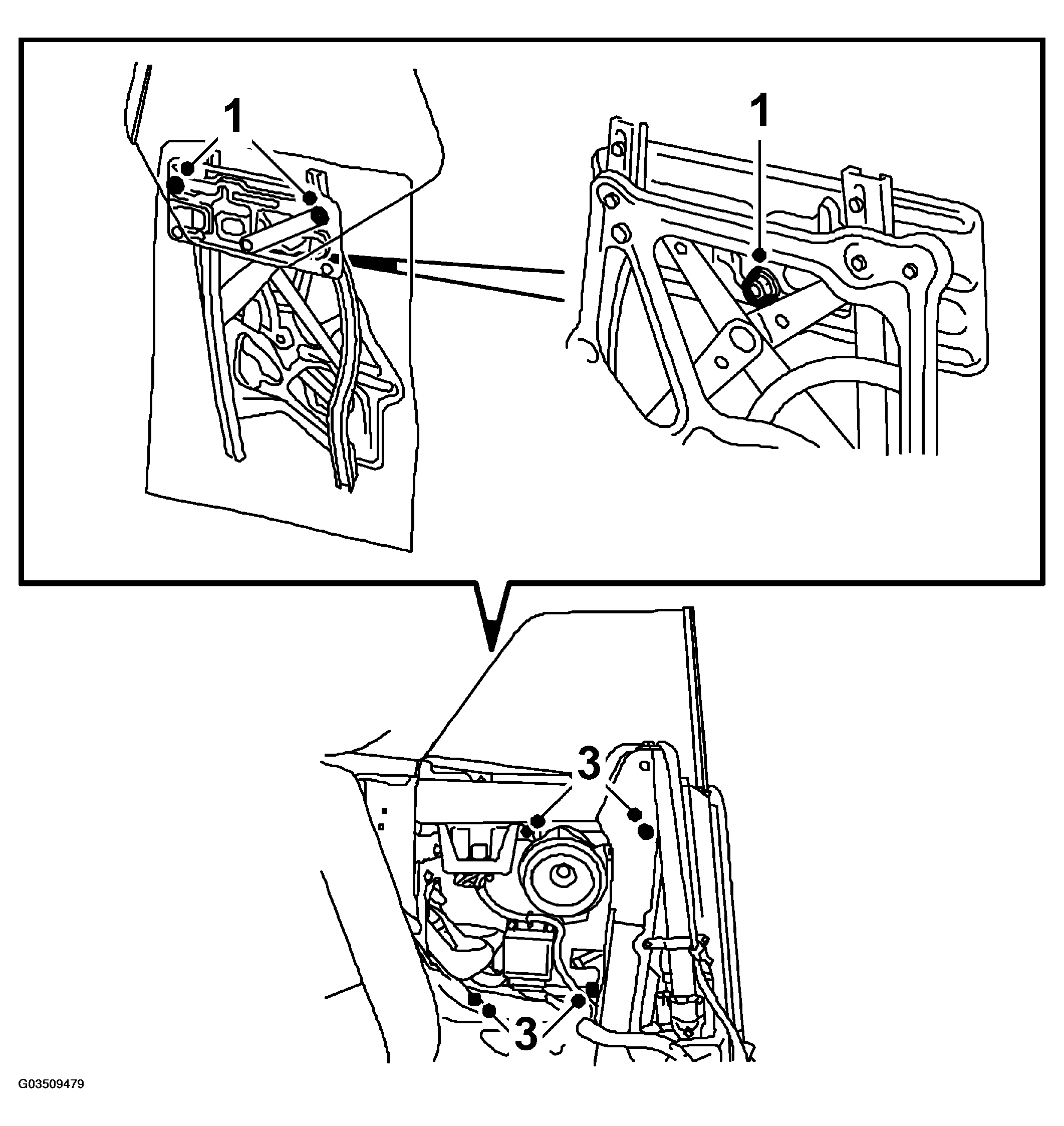

Fig 1: Illustration For Step 1-3
G03509479Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the window on the window lift and tighten the bolts.
  2. Lower the window and lift mechanism in the window-well and plug in the connector.
  3. Fit the lift mechanism and tighten the nuts securing it to the body according to markings.
  4. Refit the loudspeaker.

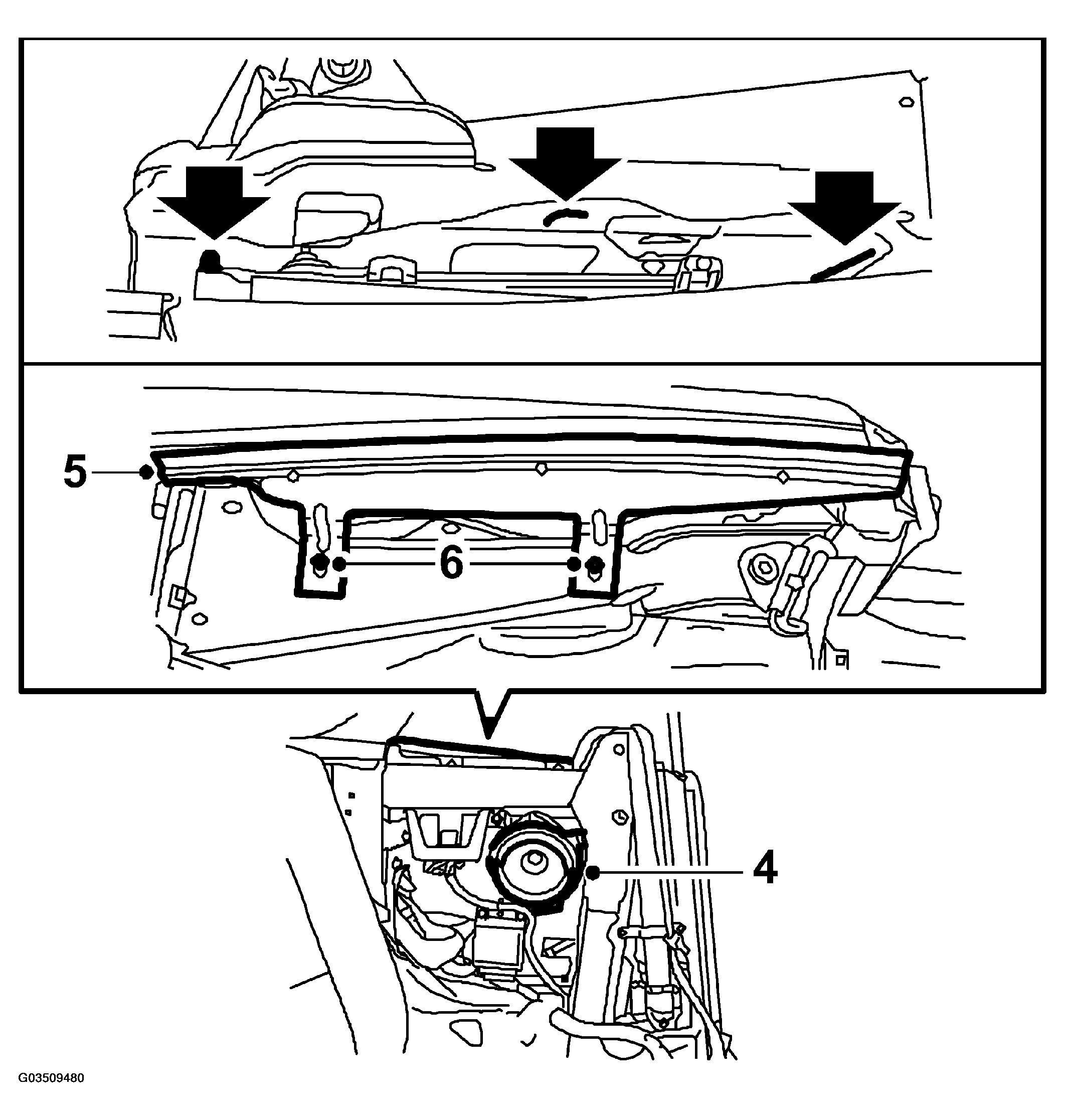

    Fig 2: Illustration For Step 4-5
    G03509480Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Refit the outer window well seal.
  6. Refit the inner window well seal holder according to the markings.
  7. Adjust the rear side window.
  8. Refit the rear side trim. See TO FIT  .
