B. Additional components on RHD cars

ADDITIONAL COMPONENTS ON RHD CARS

  Via crimp J162
which is connected to crimp J115
207P Heater element, passenger door mirror

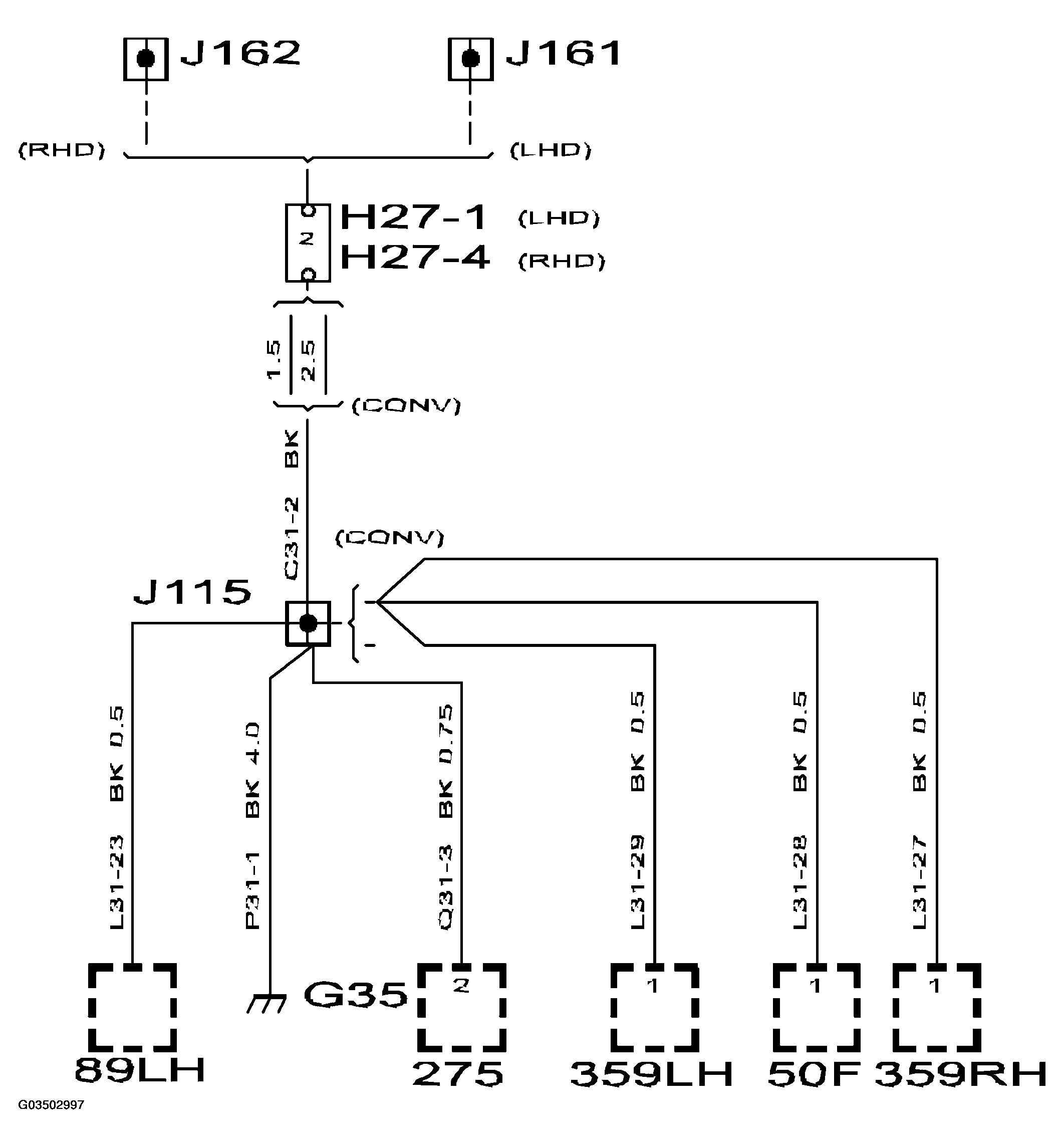

Fig 1: Crimp - Grounding Point G35
G03502997Courtesy of SAAB-SCANIA OF AMERICA, INC.
