B. Connected components on RHD cars

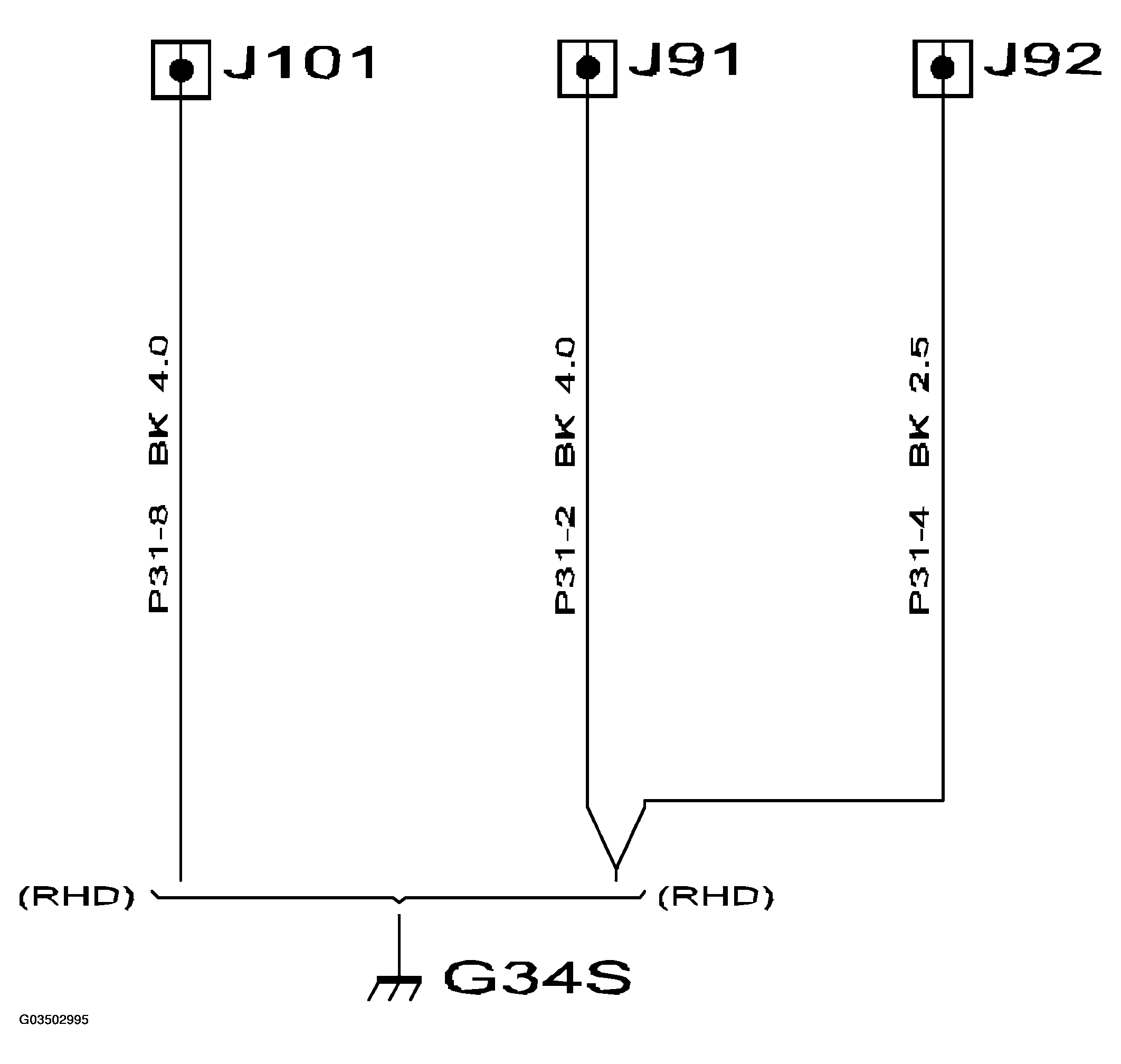

CONNECTED COMPONENTS ON RHD CARS
| Via crimp J91 | |
| 21 | Relay, ignition switch |
| 48F | Cigarette lighter, front |
| 148F | Illumination, ashtray/cigarette lighter |
| 242 | Level switch, coolant |
| 276 | Bonnet switch, anti-theft alarm |
| 375 | Connection, mobile telephone |
| 541 | SID |
| 628 | Control module, DICE |
| Via crimp J92 | |
| 252D | Switch, driver's seat heating pad |
| 252P | Switch, passenger seat heating pad |
| 252R | Switch, electrically heated rear seat |
| 439 | SHIFT LOCK solenoid, selector lever |
| 449 | Switch, TCS |
| 461 | Connector, electronic road-toll |
| 504 | Control panel for heating and ventilation |
| 506 | Switch, WINTER |
| 535 | Transmission oil temperature sensor |
| 580 | Microswitch, air-mixing damper |
| 640 | Limp-home relay |
| 641 | Relay, diesel pre-heating |
