B. Additional components on RHD cars

ADDITIONAL COMPONENTS ON RHD CARS

  Via crimp J90
16 Instrument lighting rheostat
88 Switch, extra fog lights
161 Fog light switch
445 Data link connector, 16-pin CARB
540 Main instrument unit

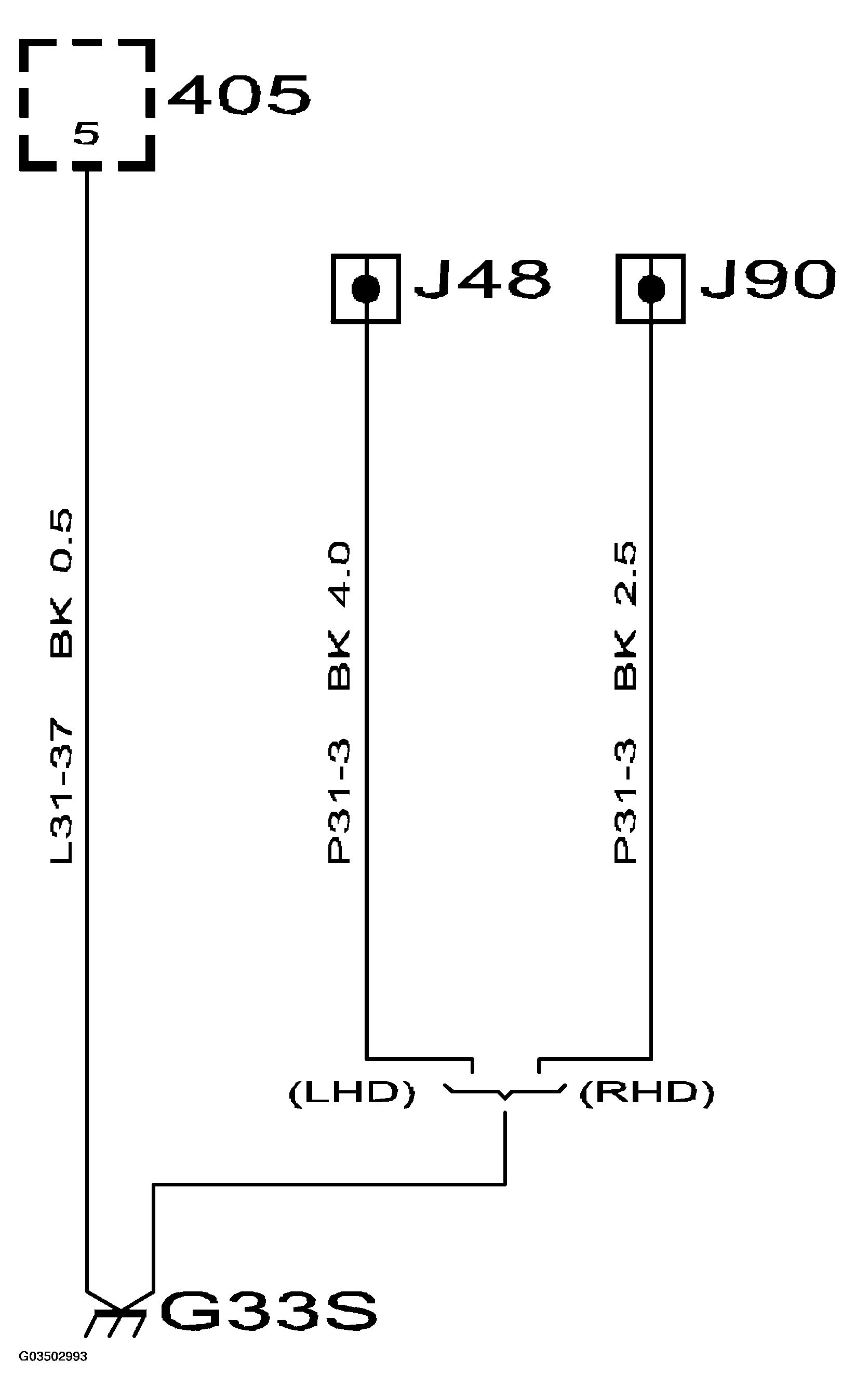

Fig 1: Crimp - Grounding Point G33S
G03502993Courtesy of SAAB-SCANIA OF AMERICA, INC.
