Central locking system motor, rear right door (184RR)

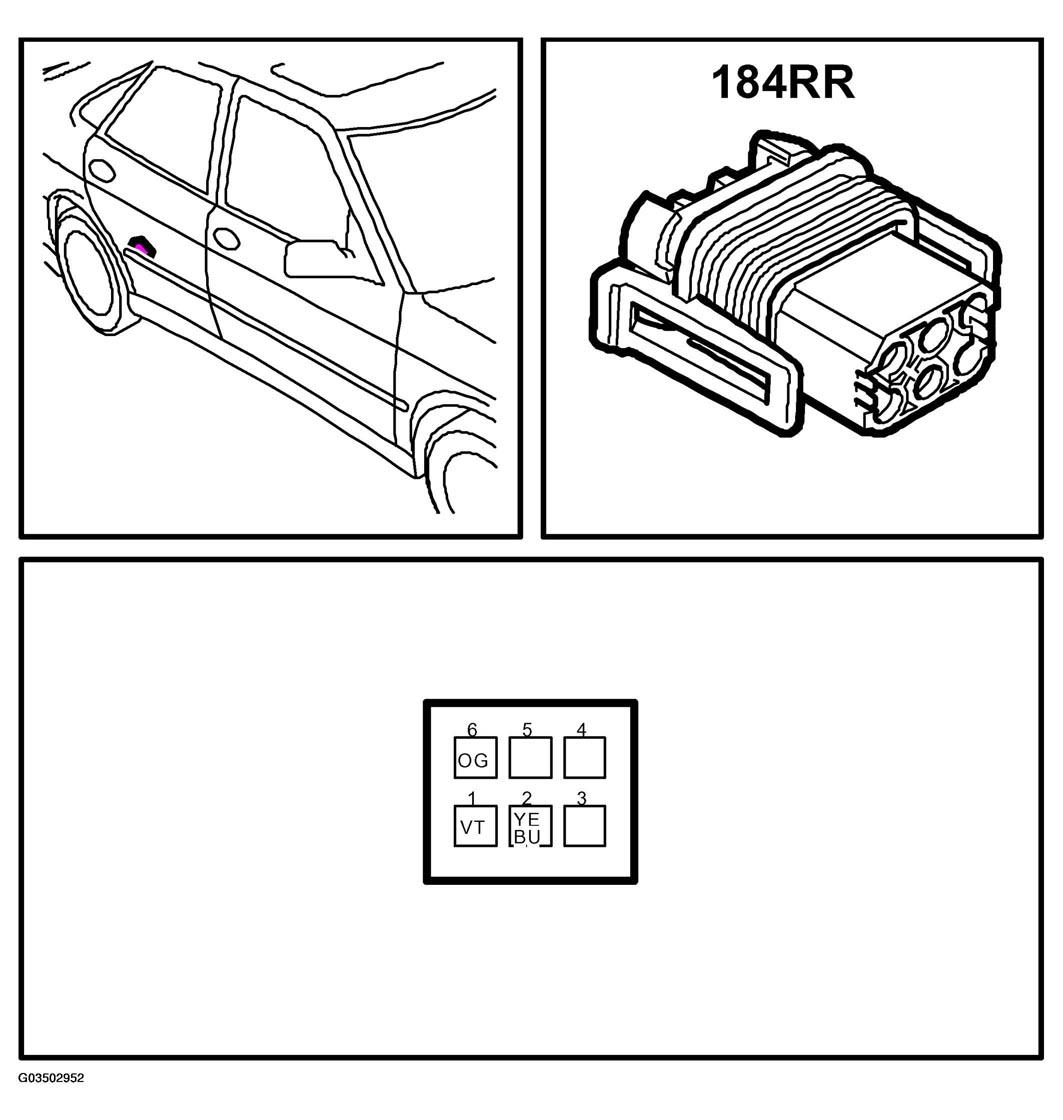

Fig 1: Identifying Central Locking System Motor Connector Pinouts (Rear Right Door (184Rr))

G03502952

Courtesy of SAAB-SCANIA OF AMERICA, INC.
