Open tailgate (convertible)
The convertible tailgate is designed without a handle. When unlocking, the tailgate pops open somewhat due to spring action.

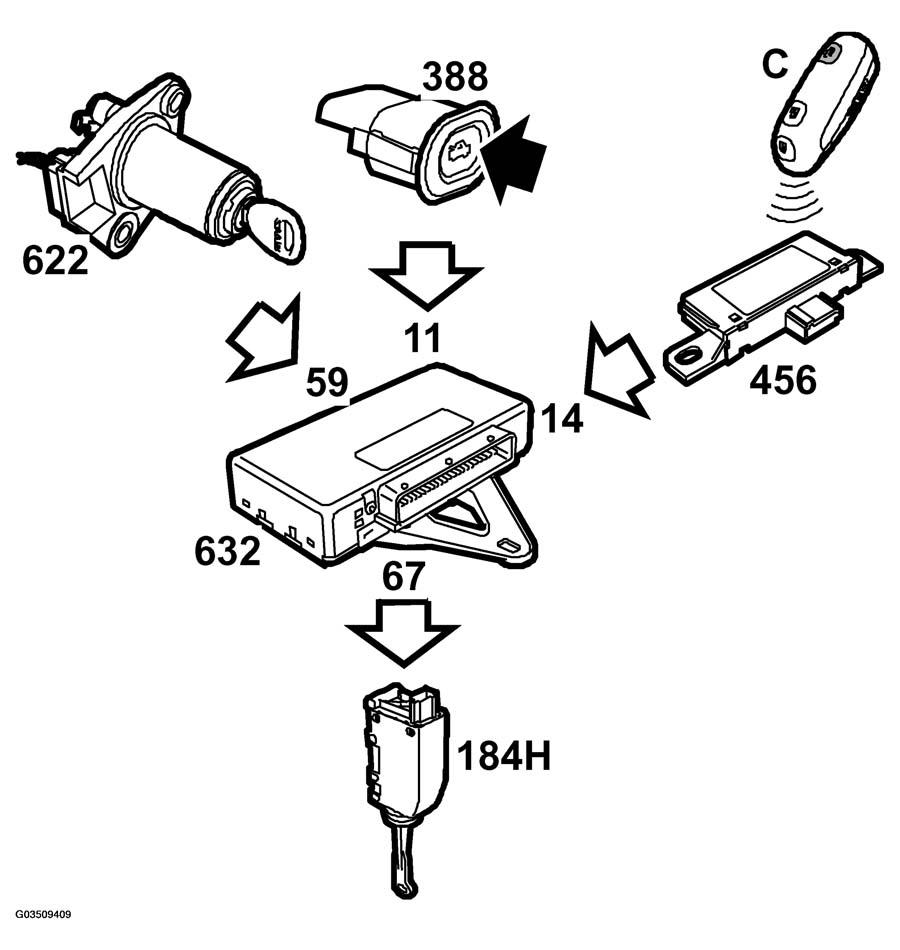

+30 voltage is supplied via fuse 25 to pin 47 on the TWICE control module.
The tailgate can be opened with the key, remote control or the switch in the driver's door.
When switch 388 is activated, a signal is fed to TWICE control module pin 11.
When microswitch 622 is activated by the key being turned, a signal is fed to control module pin 59.
When button C on the remote control is activated, a signal is sent that is received by a receiver, The receiver processes the signal and transfers it on to TWICE control module pin 14.
The TWICE control module outputs a voltage impulse via pin 67 to the tailgate lock motor (184H). The tailgate unlocks and opens.
The lock motor then returns to resting position, which is the locked position.
If soft top opening is activated, the possibility to open the tailgate with the remote control or switch in the driver's door is blocked. The tailgate can be opened with the key, but then opening of the soft top will stop.
