Locking and unlocking tailgate (3 and 5-door bodies): Lock
+30 voltage is supplied via fuse 25 to pin 47 on the TWICE control module.

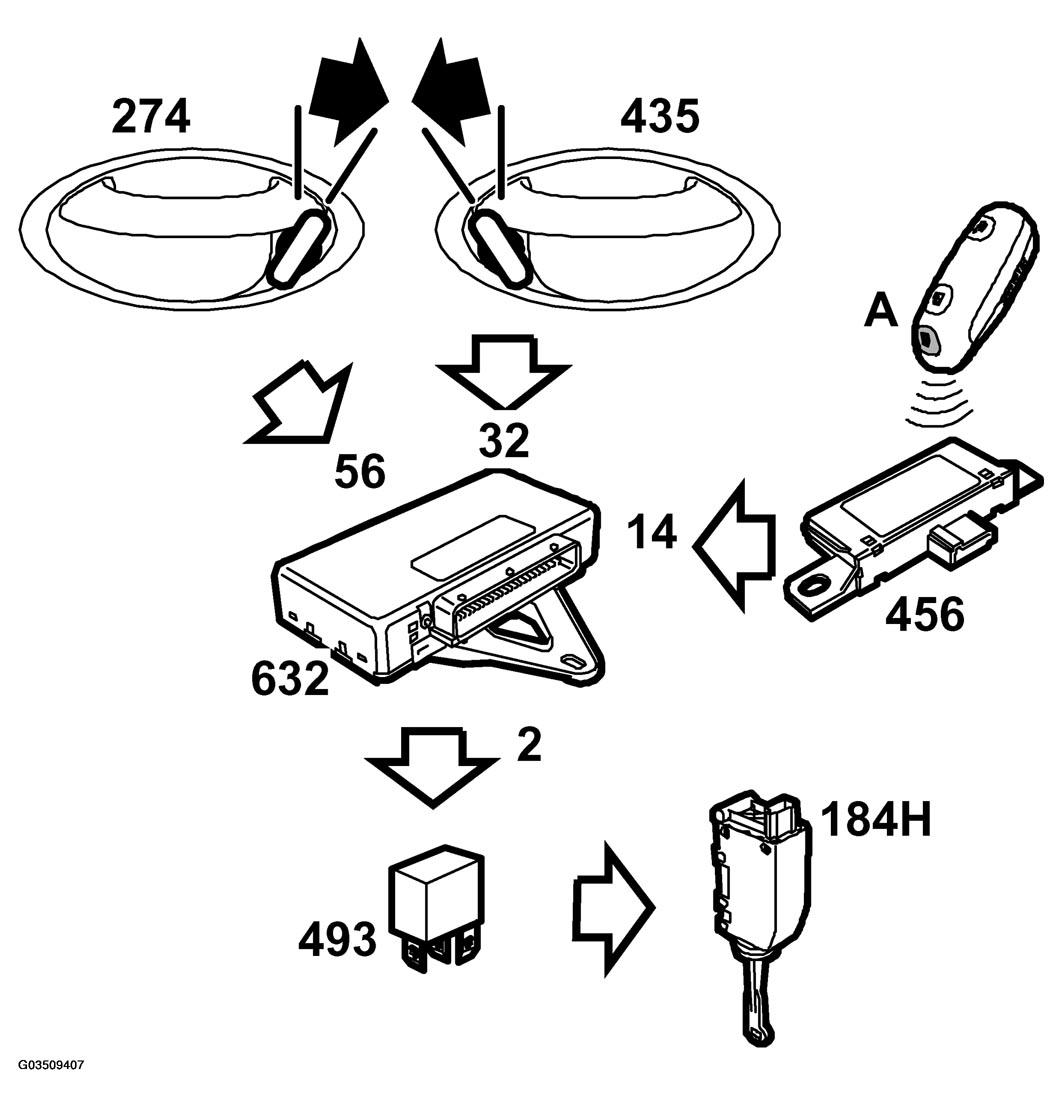

The tailgate is locked together with all other central locking motors. Central locking is achieved with the key, remote control or automatic locking (only tailgate). When the tailgate is locked, the TWICE control module receives a signal at:
- Pin 56, key lock, driver's door
- Pin 32, key lock, front passenger door
- Pin 14, locking with remote control
The TWICE control module outputs a short voltage impulse from pin 2 to relay 493 to the lock motor (184H).
The tailgate lock motor is grounded to TWICE pins 44 and 67.
