B. Additional components on RHD cars

GROUNDING POINT G35 CONNECTED COMPONENTS (ADDITIONAL COMPONENTS ON RHD CARS)

  Via Crimp J162
which is connected to crimp J115
207P Heater element, passenger door mirror

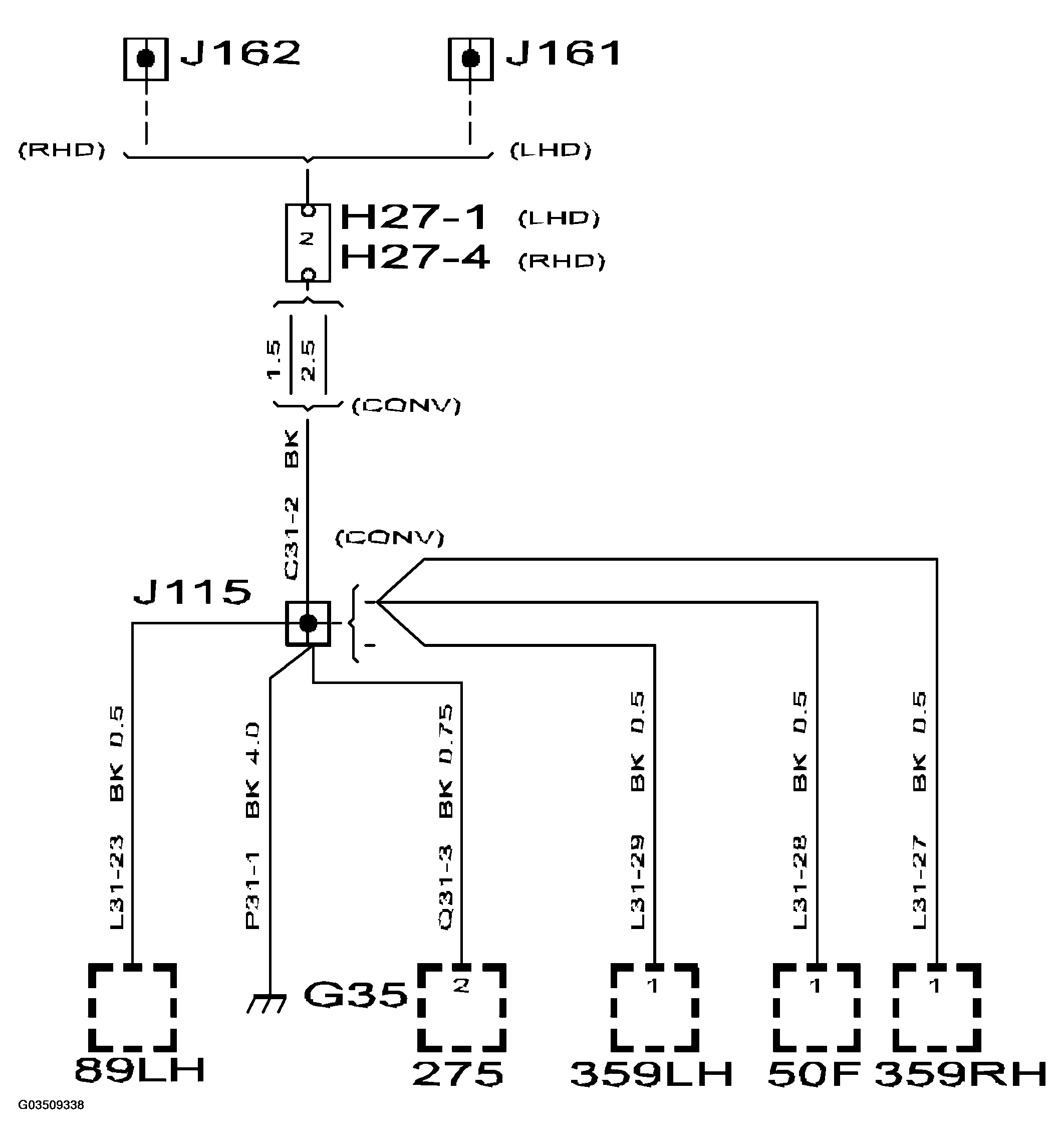

Fig 1: Identifying Grounding Point G35 Connection Diagram
G03509338Courtesy of SAAB-SCANIA OF AMERICA, INC.
