To fit

  1. Fit a new circlip in the groove on the cylinder.
    NOTE: Do not refit a used circlip. Also make sure that the rollers are positioned correctly, otherwise the cylinder must be removed again.

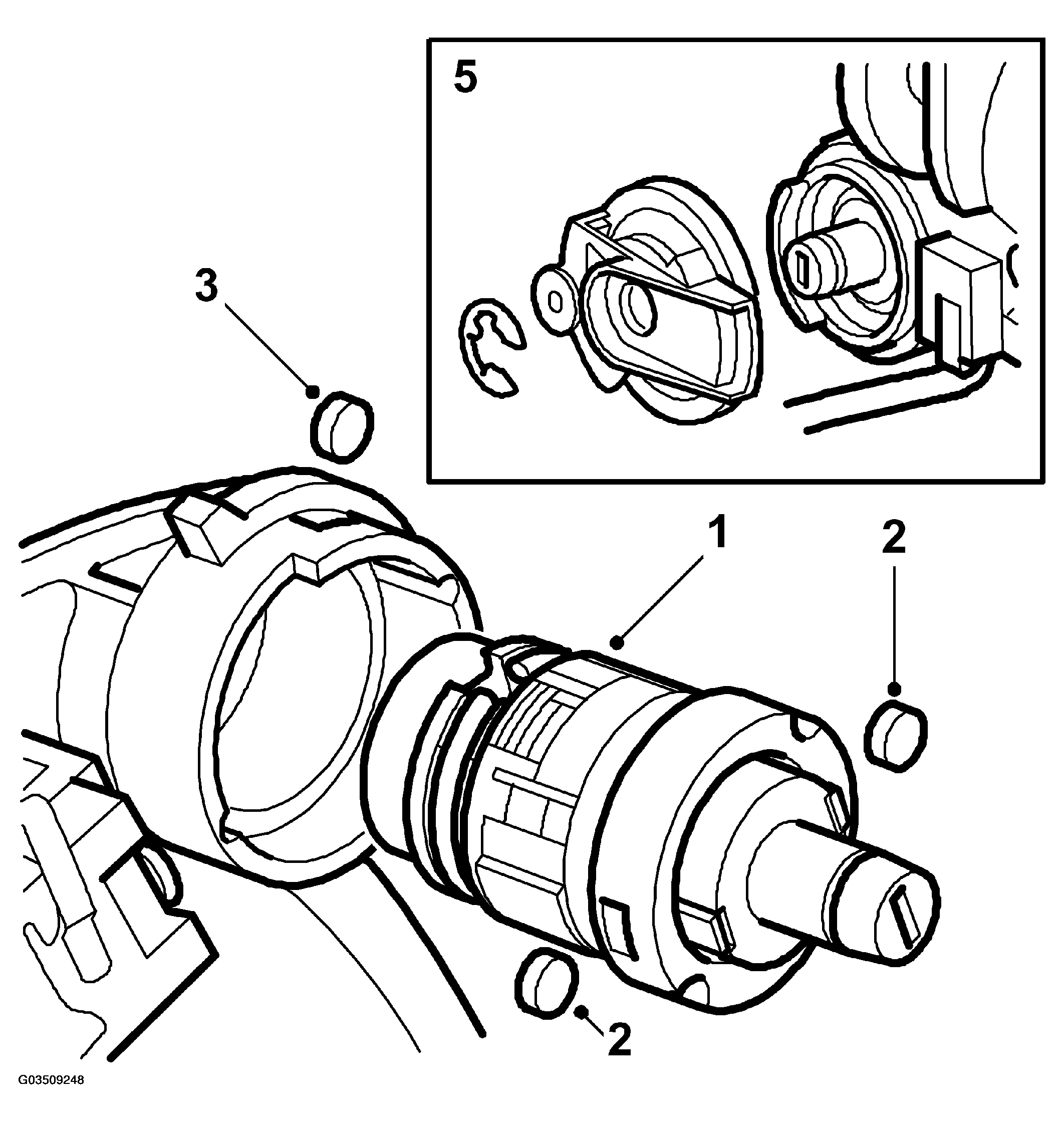

    Fig 1: Illustration For Step 1-5
    G03509248Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit two rollers in position on the cylinder. Grease the lock cylinder and press it into the handle. The circlip must be fitted in its previous groove with the opening facing the drain hole.
  3. Fit the third roller in position.
  4. Make sure that the roller is positioned correctly in the lock arm. Fit the lock arm.
  5. Fit a new circlip to the lock arm and fit the handle gasket.
  6. Fit the microswitch and fasten with the clip, the flat part of the clip facing up.
  7. Fit the door handle, see DOOR HANDLE, FRONT DOOR
