To remove

  1. Open the door.
  2. Remove the door trim, see DOOR TRIM, REAR DOORS .
  3. Remove the plastic water barrier.

    Lift out the collision block to increase accessibility.

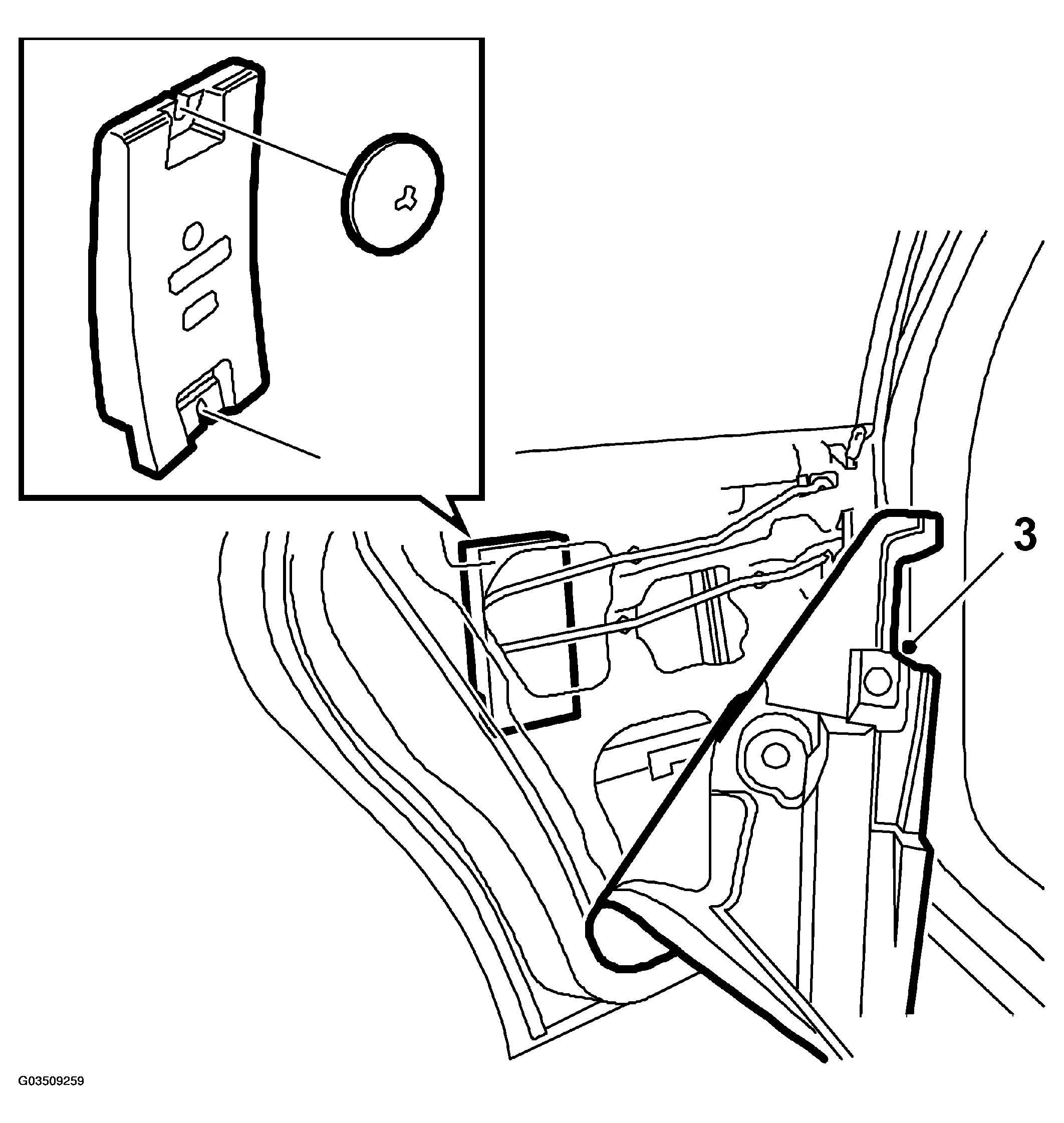

    Fig 1: Illustration For Step 3
    G03509259Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the pull rod, between inside handle and lock, from the lock.

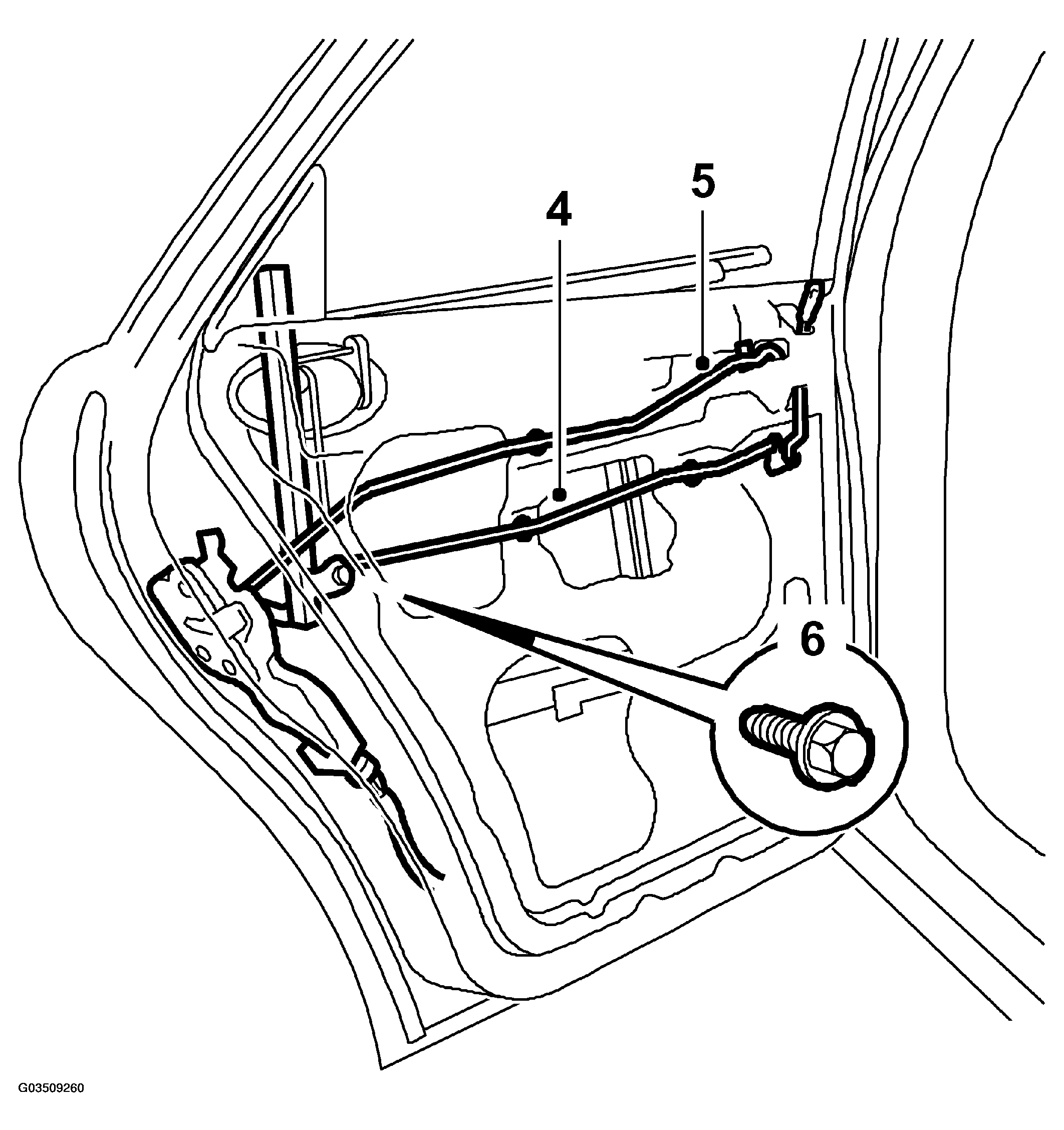

    Fig 2: Illustration For Step 4-5
    G03509260Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the pull rod between lock button and lock, from the lock.
  6. Remove the retaining screw for the rear guide channel.
  7. Remove the three retainer screws from the lock.

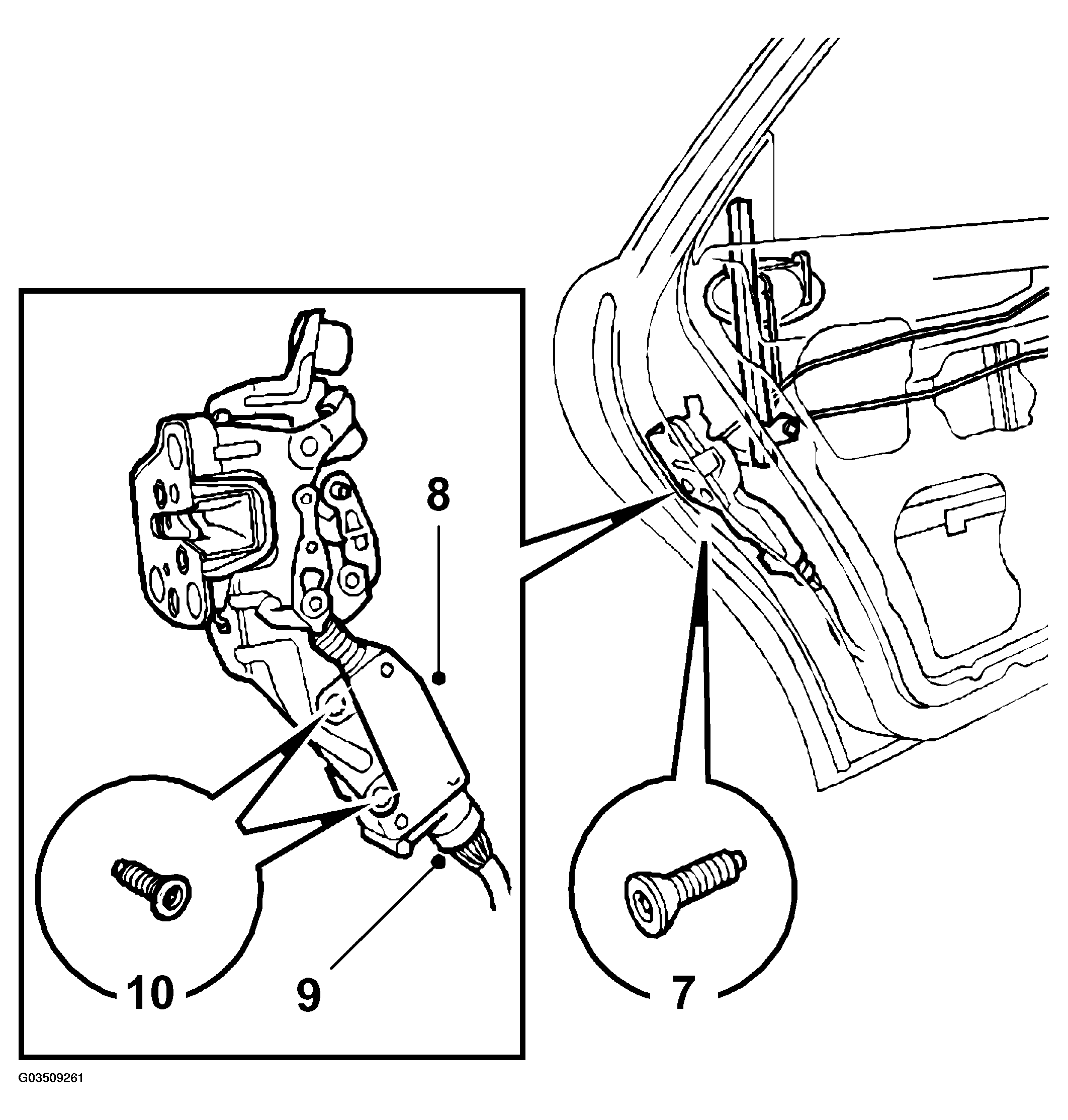

    Fig 3: Illustration For Step 7-10
    G03509261Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Remove the complete lock unit.
  9. Unplug the connector for the central lock motor.
  10. Remove the central lock motor from the lock.
