Noise from side window seals, CV: Procedure

  1. Operate the soft top with the ROOF button so that it is half open with the soft top cover pointing straight up. Place the soft top support 82 93 144 Holder, hydraulic soft top to prevent the soft top from falling down when the hydraulic pressure is released. The rear side windows must be closed and the door windows open.
  2. Apply the lubricant to the surfaces of the sealing strip.

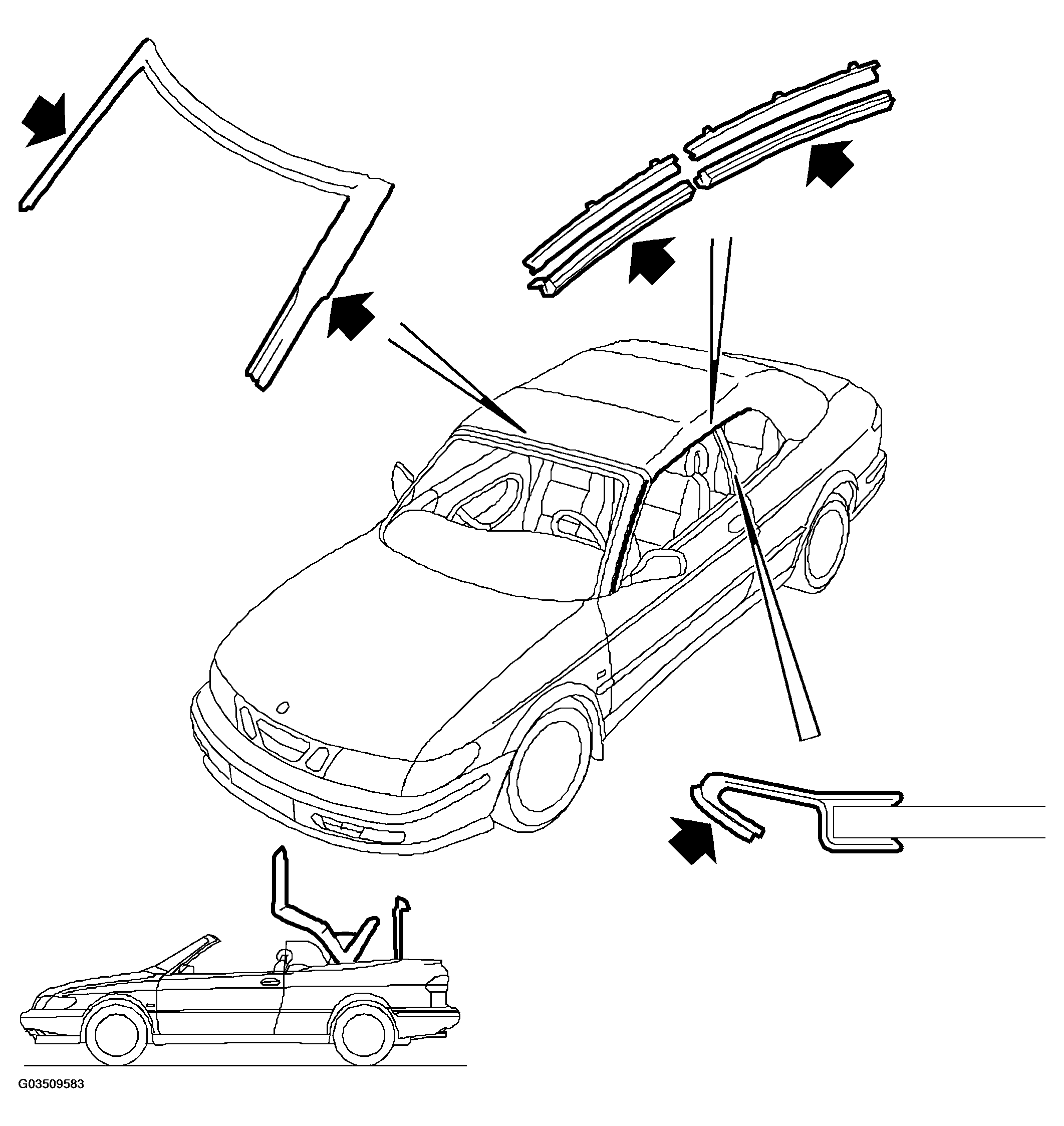

    Fig 1: Applying Lubricant To Surfaces Of Sealing Strip
    G03509583Courtesy of SAAB-SCANIA OF AMERICA, INC.
