To fit

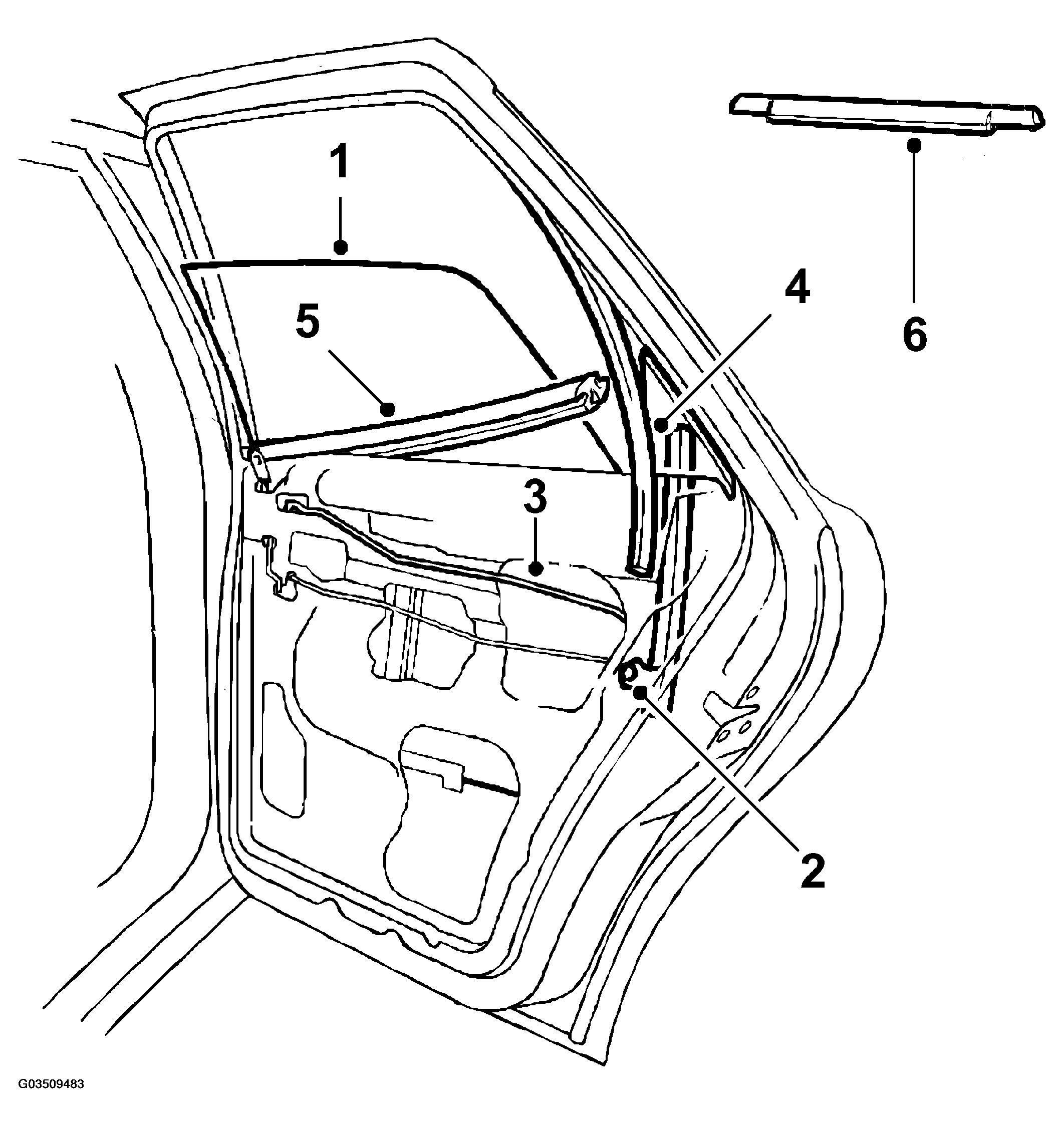

Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Fit the window glass by angling the front edge and guide it down onto the window lift.
- Fit the rear guide channel by pressing it down into the window opening and angle it into position above the pull bars and tighten it.
- Press the pull bar into position between the door handle and door lock.
- Press the window frame seal onto the rear guide channel. Apply Vaseline to the rear of the seal.
- Fit the internal window seal by pressing it into place by hand, it may be necessary to use a rubber mallet.
- Fit the external window seal.
- Fit the cover, press it into position by hand.

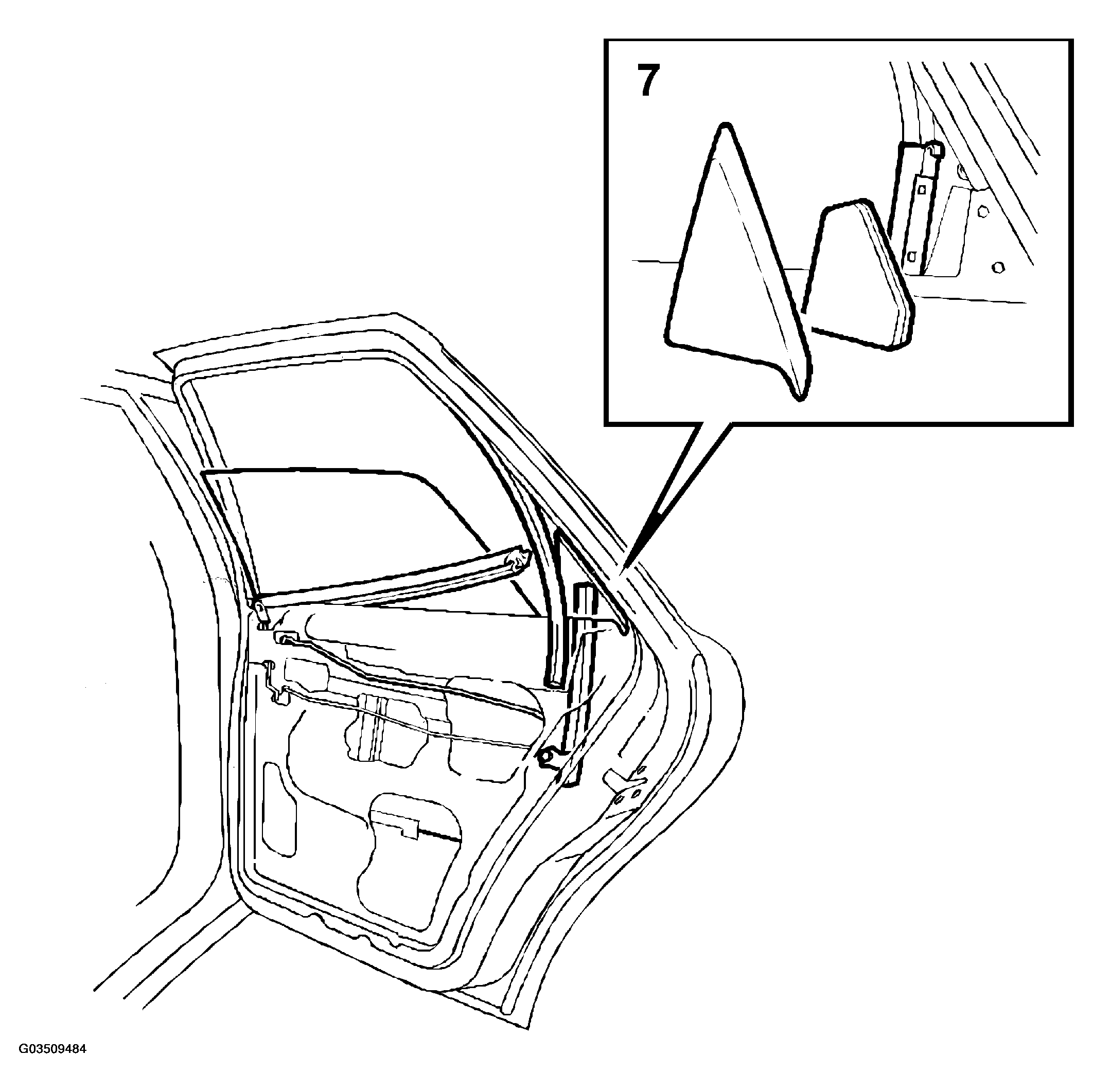

Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Fit the plastic water barrier.
- Fit the door trim. See ADJUSTMENT - REPLACEMENT
in INTERIOR EQUIPMENT.
- Raise the window.
