To remove

  1. Remove the rear side trim. See TO REMOVE  .
  2. Mark the positions of the bolts and then remove the inner window well seal retainer.

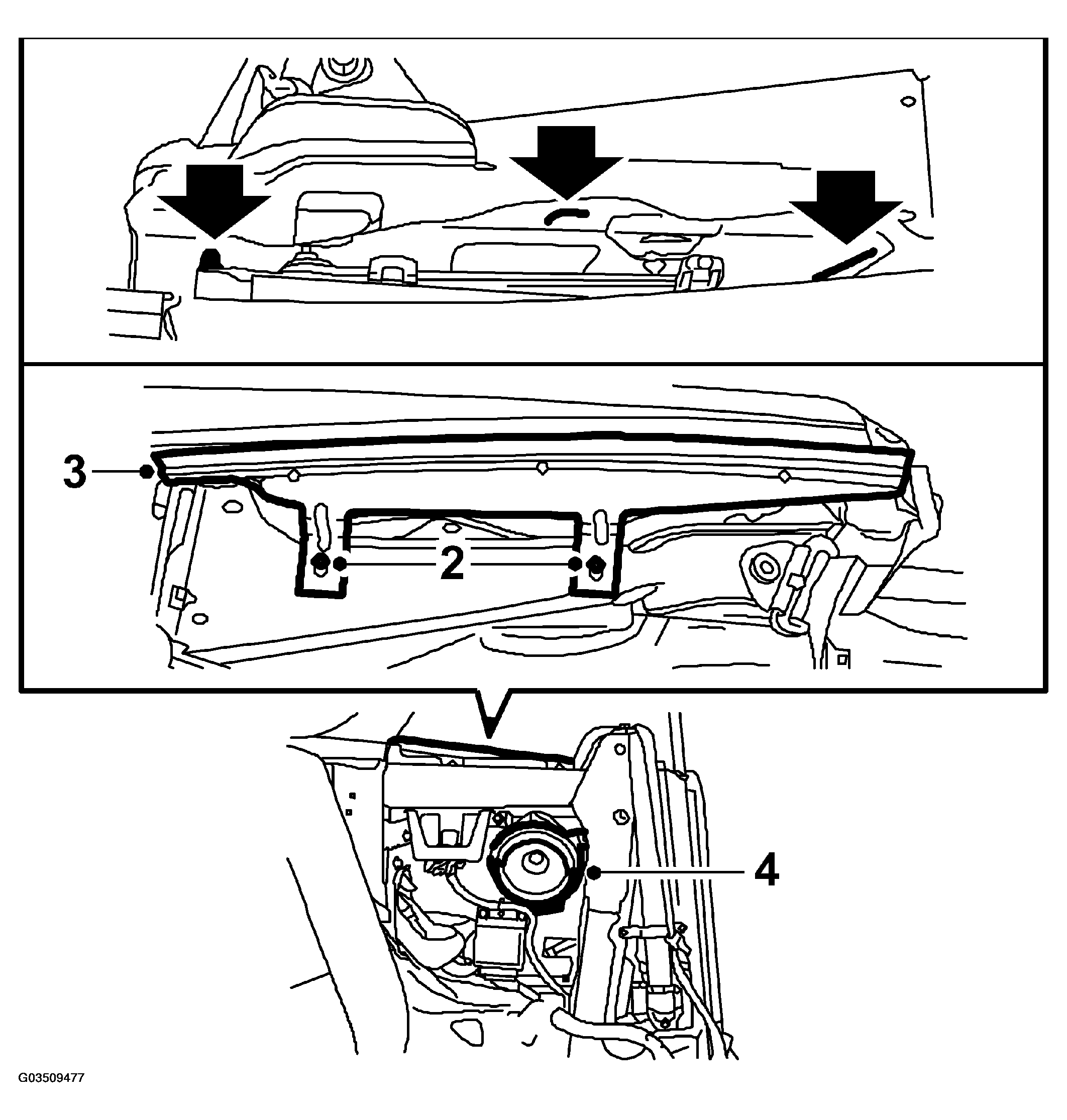

    Fig 1: Illustration For Step 3-4
    G03509477Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the outer window well seal retainer.
  4. Remove the loudspeaker.
  5. Raise the window.
  6. Loosen the nuts securing the lift mechanism to the body.

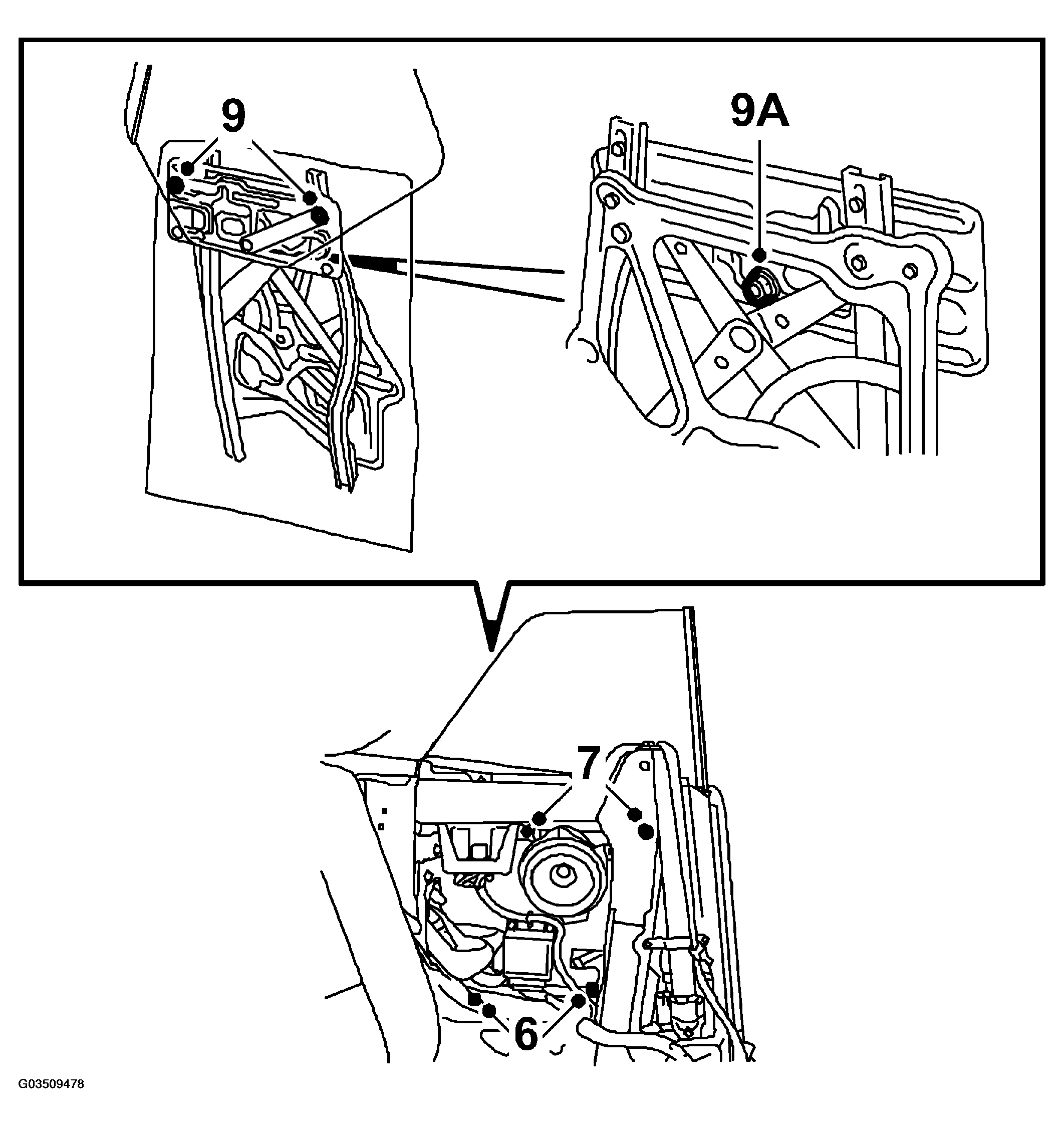

    Fig 2: Illustration For Step 7-9
    G03509478Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Lift up the lift mechanism out of the mounting grooves in the body, lower it and unplug the lift motor connector.
  8. Lift up the window and the lift mechanism.
  9. When replacing a separate mechanism or window, remove the bolts that secure the window to the lift mechanism. When changing the window only, mark the position of bolt "A".
