To fit

The window must be raised when work is started.

1. Hold out the window slightly and fit the guide rail onto the plastic bushings. Hook the rail in the hole in the door panel.
2. Tighten the bolts that secure the upper end of the guide rail.
3. Tighten the adjusting screw at the guide rail lower end according to the marking.
4. Adjust the door window.
5. Fit the rubber plug.
6. Refit the water barrier.

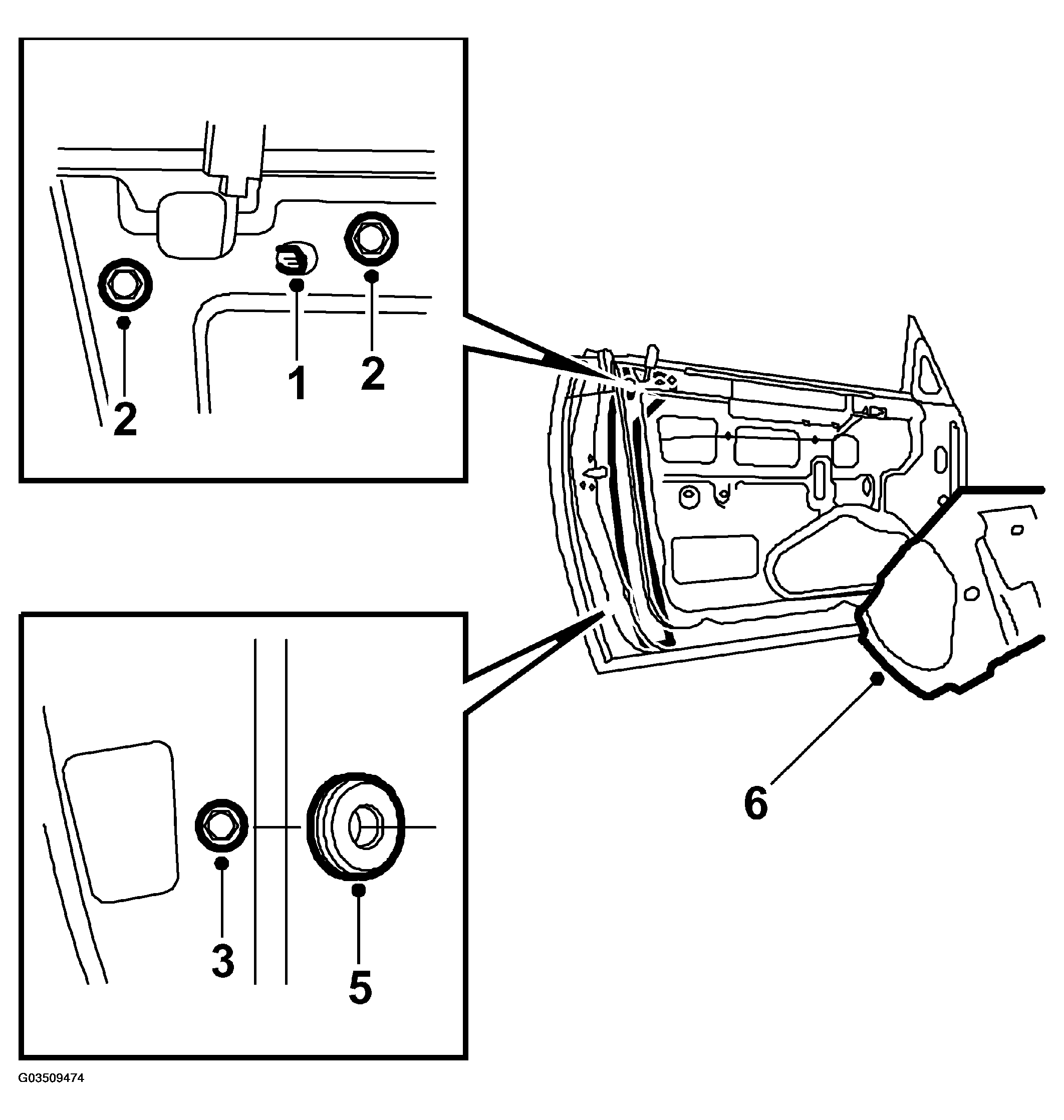

Fig 1: Illustration For Step 1-6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
7. Refit the door trim. See ADJUSTMENT - REPLACEMENT in INTERIOR EQUIPMENT.
