To Fit

VIN 17000027-17000089, if new mat being fitted:  Remove the foam block on the right-hand side of the luggage compartment. Cut off the weld studs as close to the panel as possible.

1. Fit the trim and fasten the clips at the front ends.
2. Fit the load retention eye and tighten the bolt.

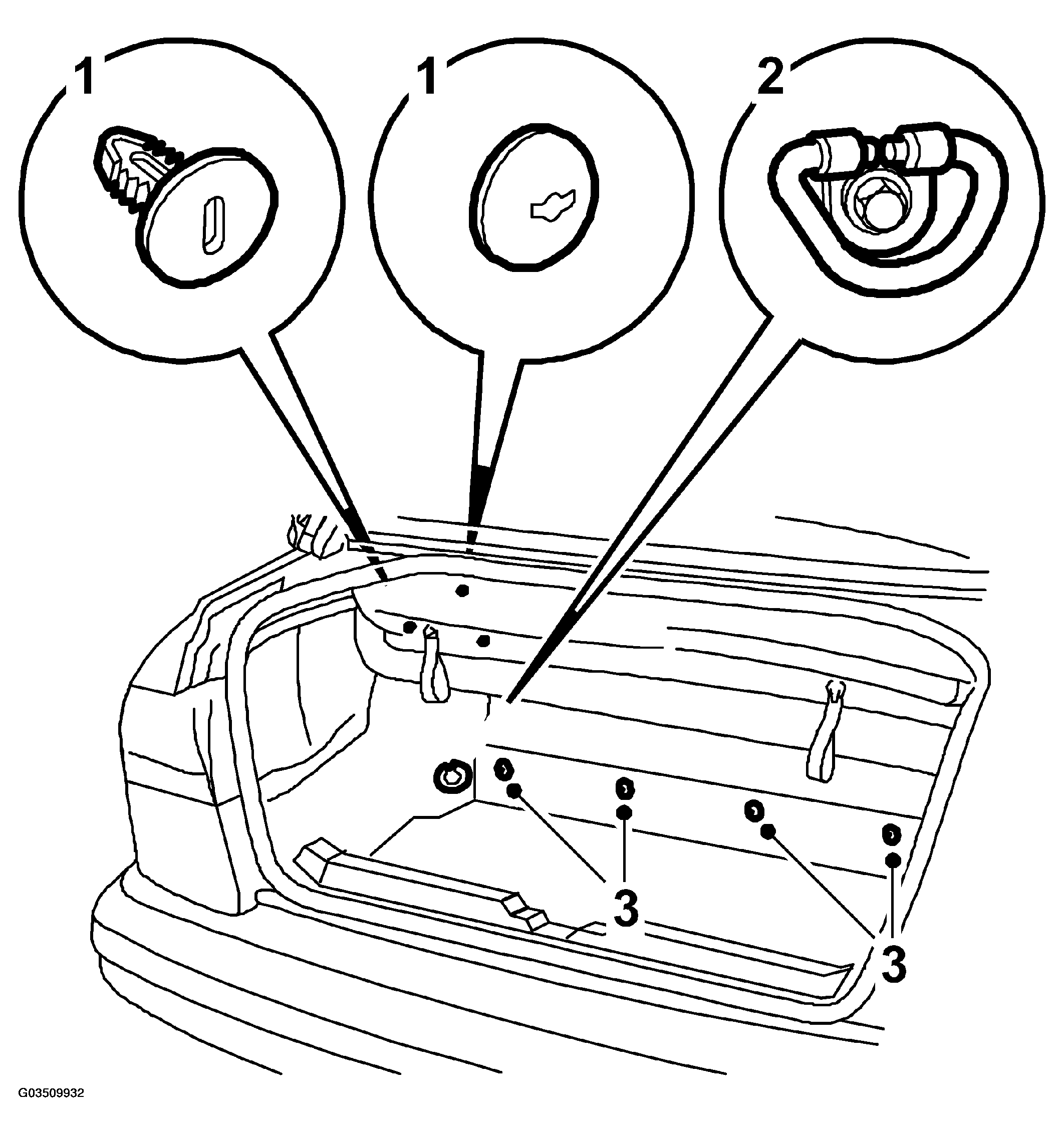

   Fig 1: Installing Clips & Retention Eye

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

   Tightening torque: 25 N.m (18.5 lbf ft)

3. Fit the floor mat and fasten the clips.
4. Plug in the connector for the luggage compartment lighting.
5. Fasten the clips securing the trim at the sides.
6. Fit the luggage compartment seal.

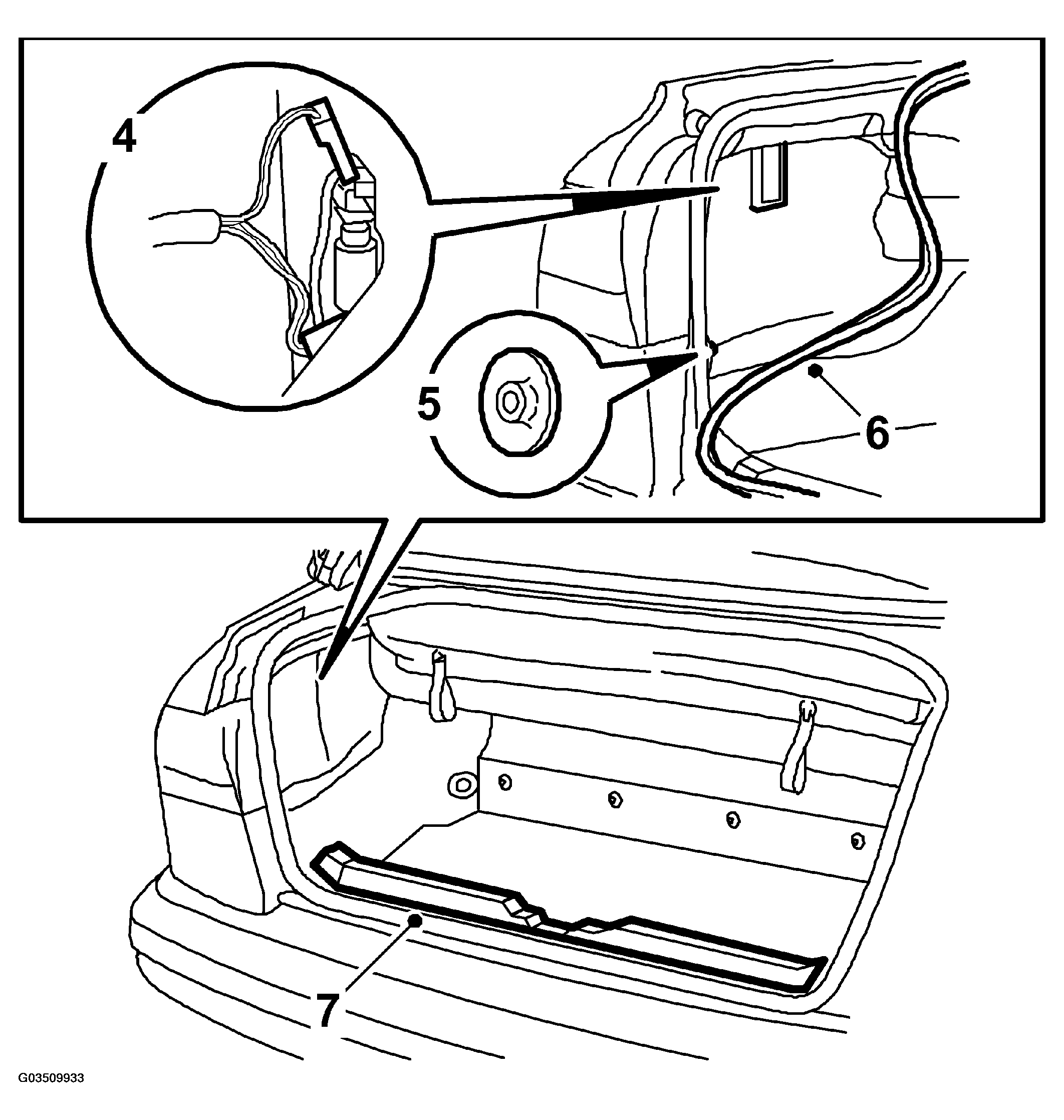

   Fig 2: Installing Luggage Compartment Seal

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
7. Refit the scuff plate.
