To Fit
Fit in reverse order.
VIN 12000073-12000130 and 17000027-17000089, if new mat being fitted: Remove the foam block on the righthand side of the luggage compartment. Cut off the weld studs as close to the panel as possible.

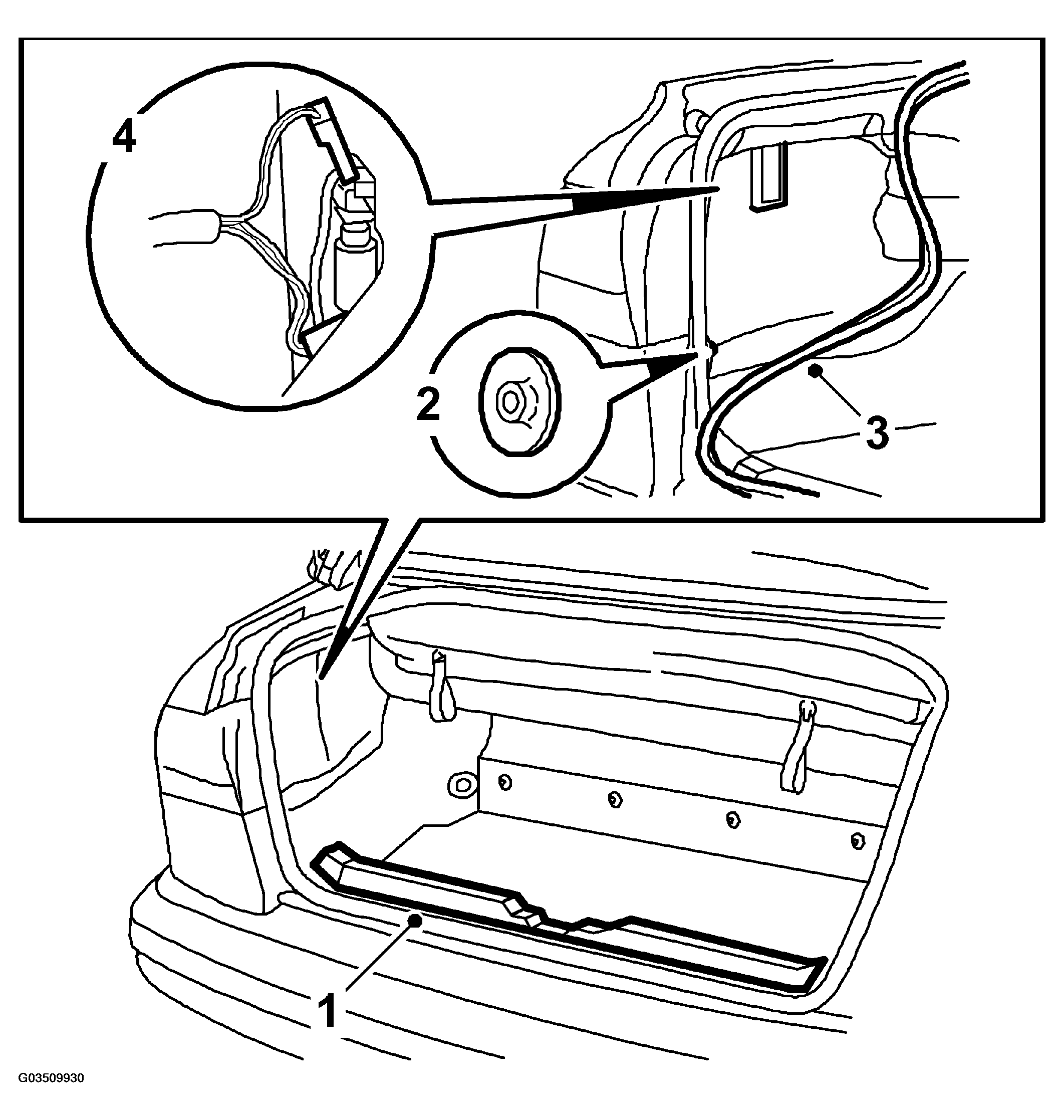

See also Figure.
Fit in reverse order.
VIN 12000073-12000130 and 17000027-17000089, if new mat being fitted: Remove the foam block on the righthand side of the luggage compartment. Cut off the weld studs as close to the panel as possible.
See also Figure.
