To Fit

  1. Place the new air vent face up on a workbench.
  2. Remove the transport lock, making sure no loose components fall out of position.
  3. Press the instrument plate onto the air vent. Make sure all the snap fasteners engage.

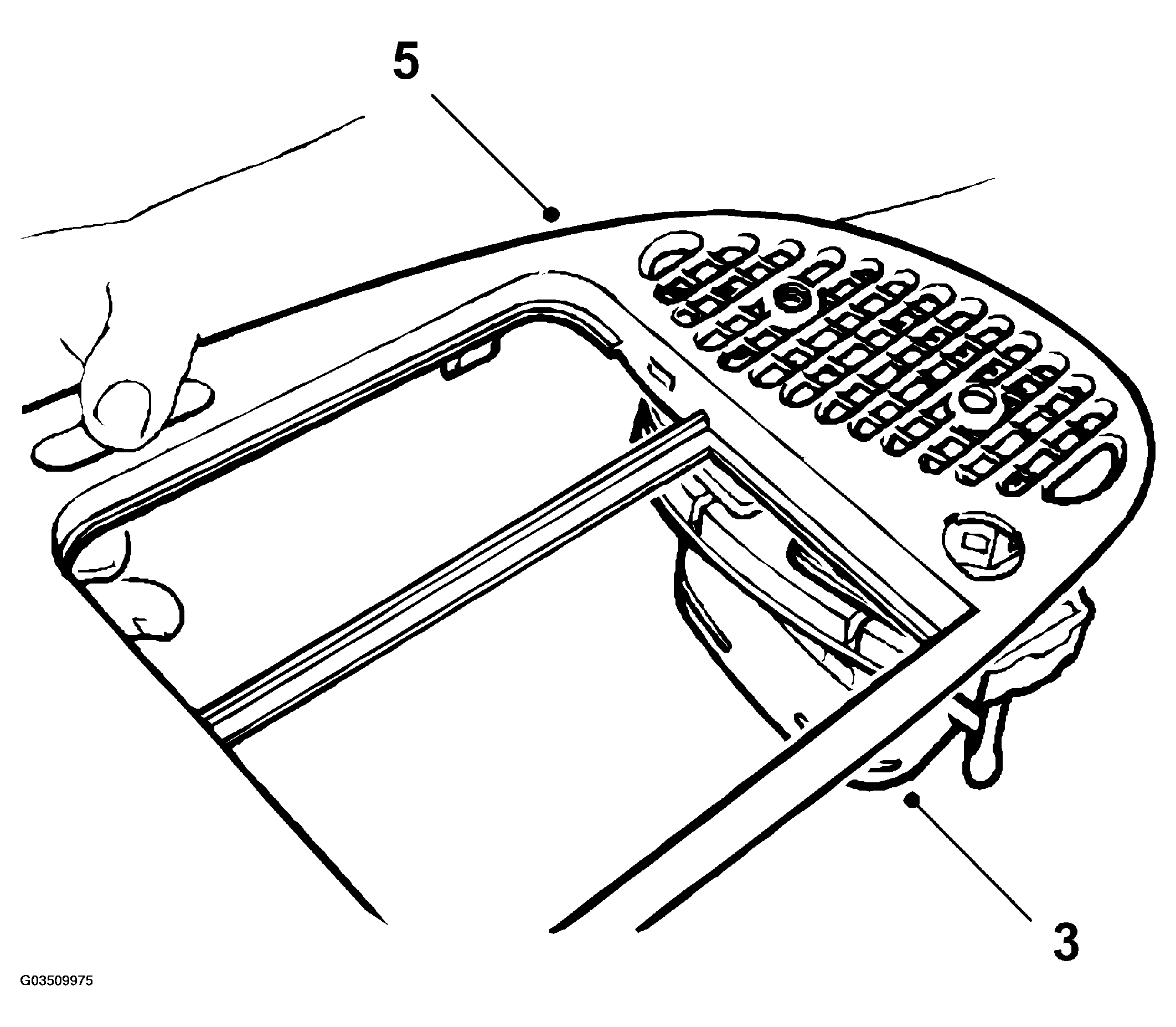

    Fig 1: Pressing Instrument Plate Onto Air Vent
    G03509975Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Test the air vent control.
  5. Fit the instrument plate, see INSTRUMENT PLATE .
