To remove

  1. Remove the door trim to gain access to the loudspeakers.
  2. Remove the screws securing the loudspeakers.
  3. Take out the loudspeaker and unplug the connectors.

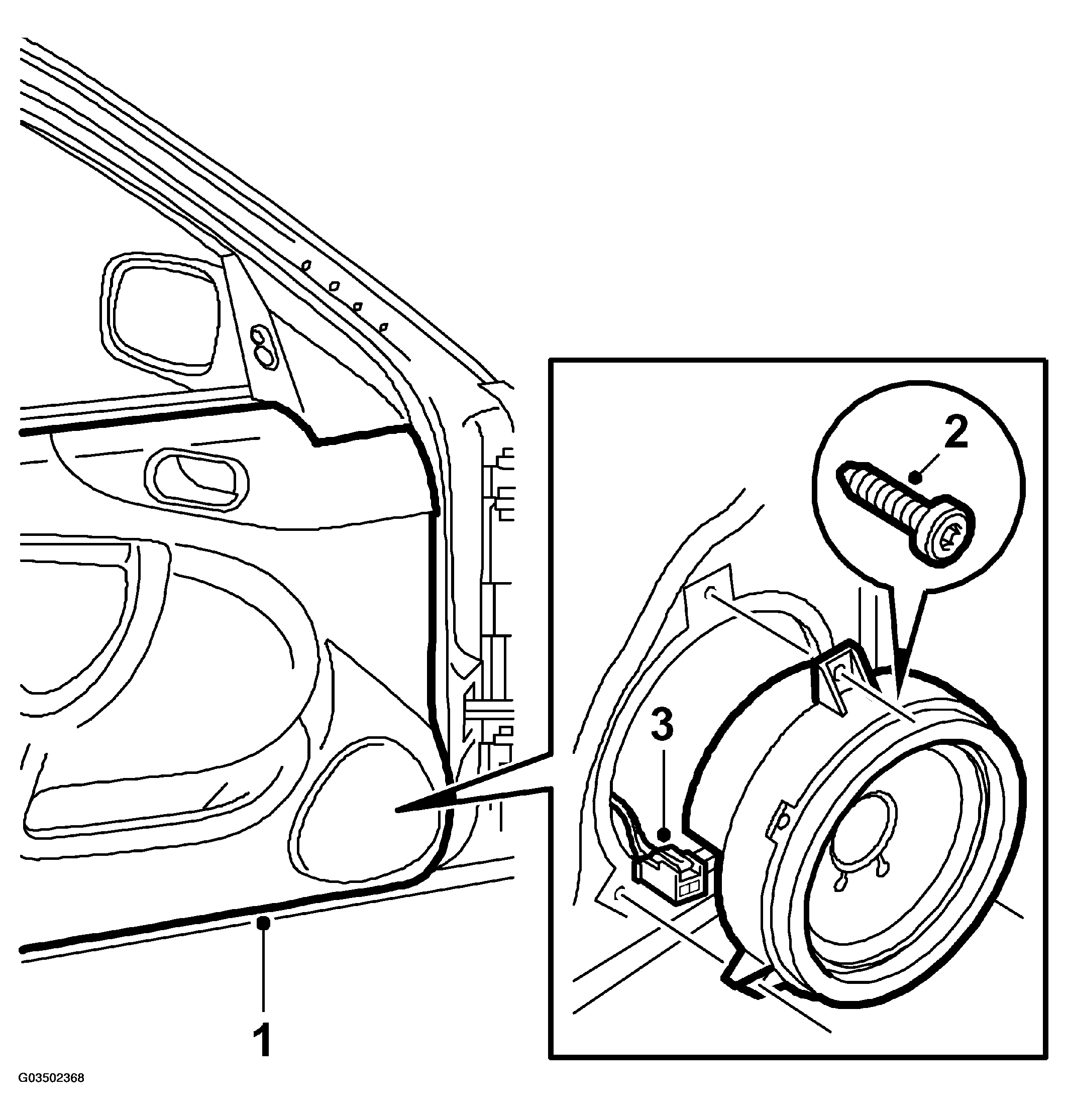

    4. Fig 1: Illustration For Step 1-3
    G03502368Courtesy of SAAB-SCANIA OF AMERICA, INC.
