Home >> Saab >> 2001 >> 9-3 Base, 4D Hatchback, Automatic >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Audio System - 9-3 (9400) >> Adjustment - Replacement >> Loudspeaker, rear, convertible >> To remove

To remove

  1. Remove the rear side trim.
  2. Remove the screws securing the loudspeaker.
  3. Disconnect the electrical connection and lift away the loudspeaker.

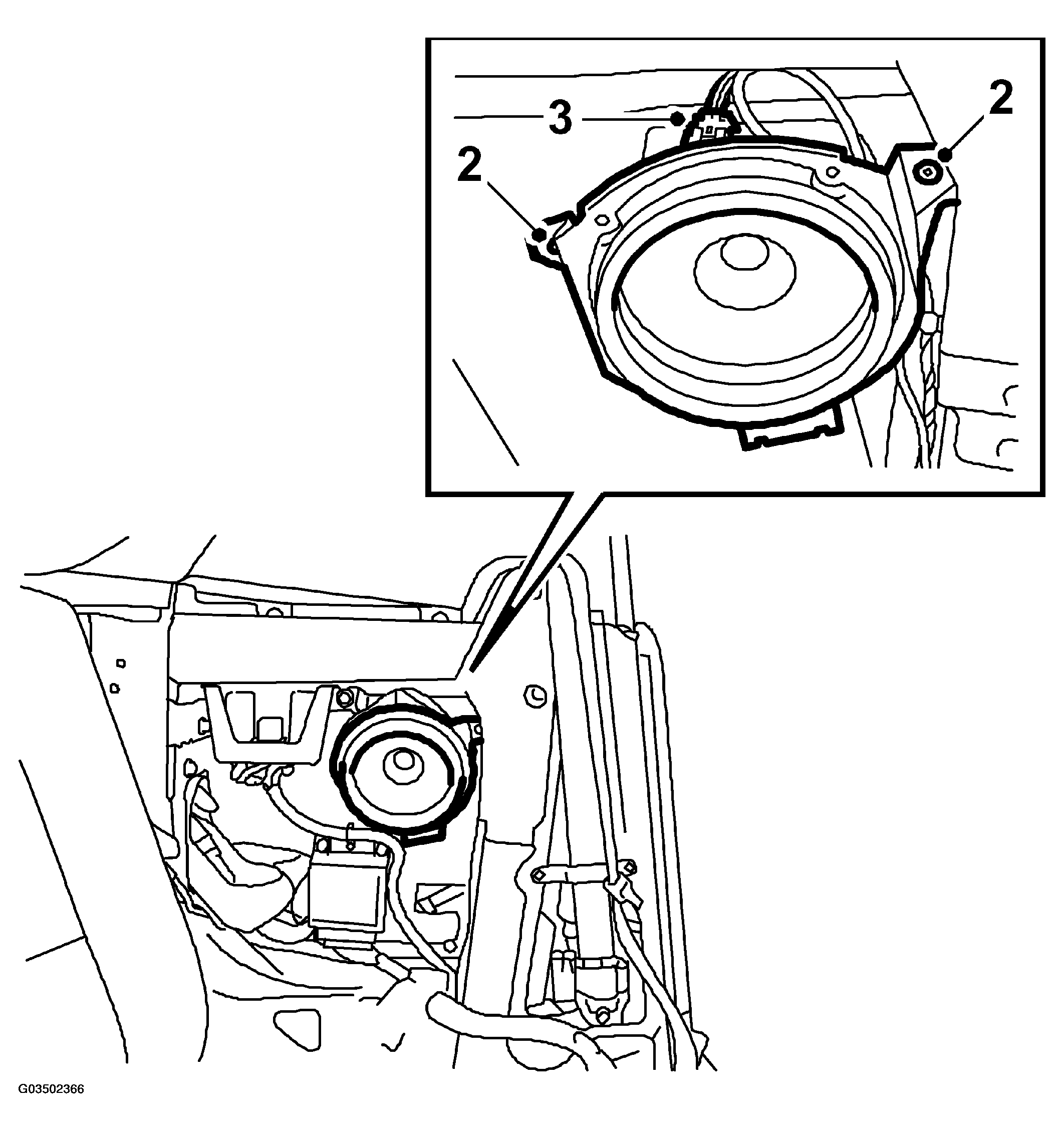

    4. Fig 1: Illustration For Step 2-3
    G03502366Courtesy of SAAB-SCANIA OF AMERICA, INC.
