To remove

  1. Fold down the rear seat backrest.
  2. Remove the loudspeaker grilles from the left and right-hand sides of the parcel shelf.
  3. Remove the C pillar trim on left and right-hand sides.

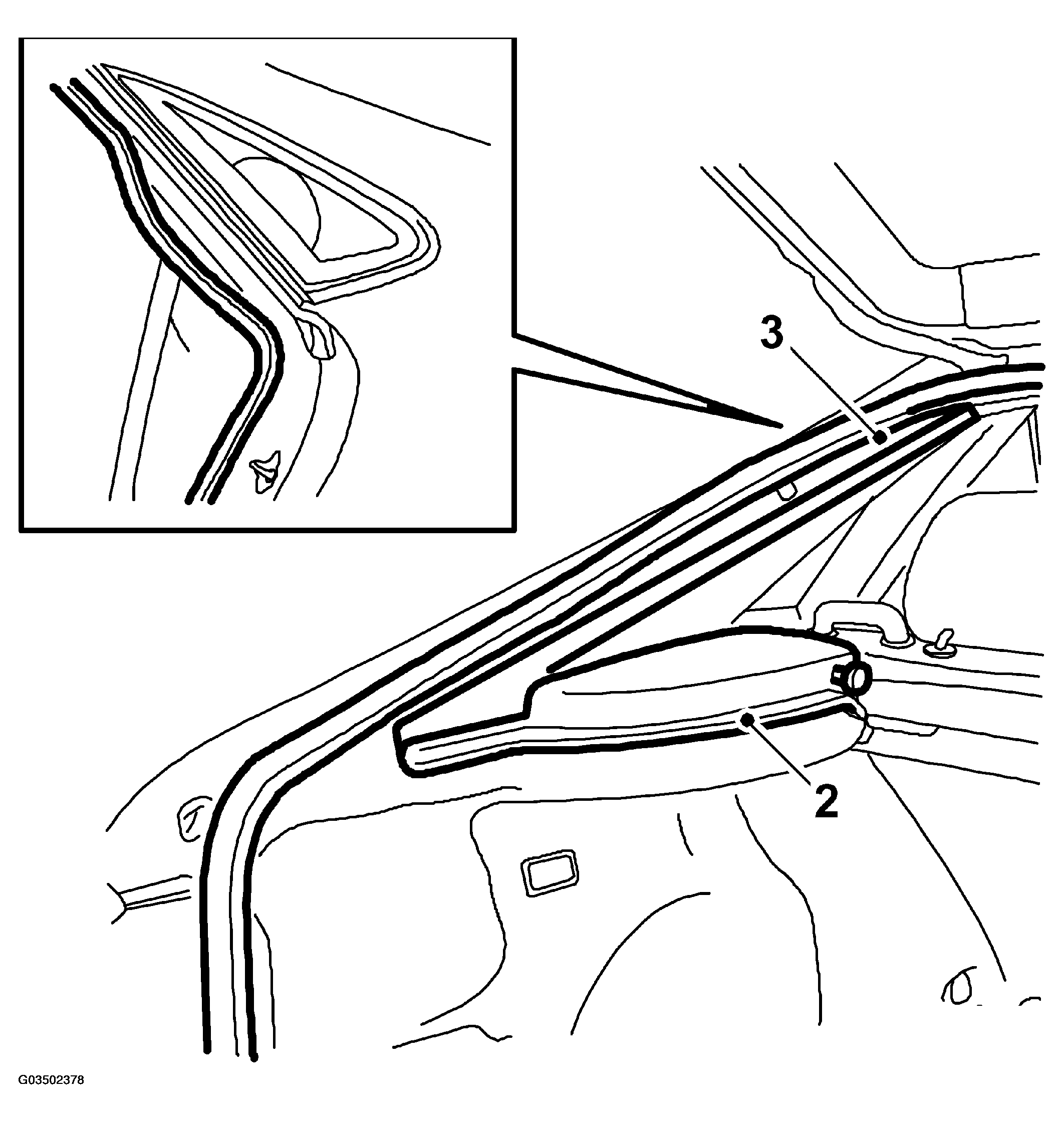

    4. Fig 1: Illustration For Step 2-3
    G03502378Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the rear left and right-hand courtesy handles.
  5. Remove the two plastic clips and lower the headlining. Exercise care when handling the headlining as it can easily break.

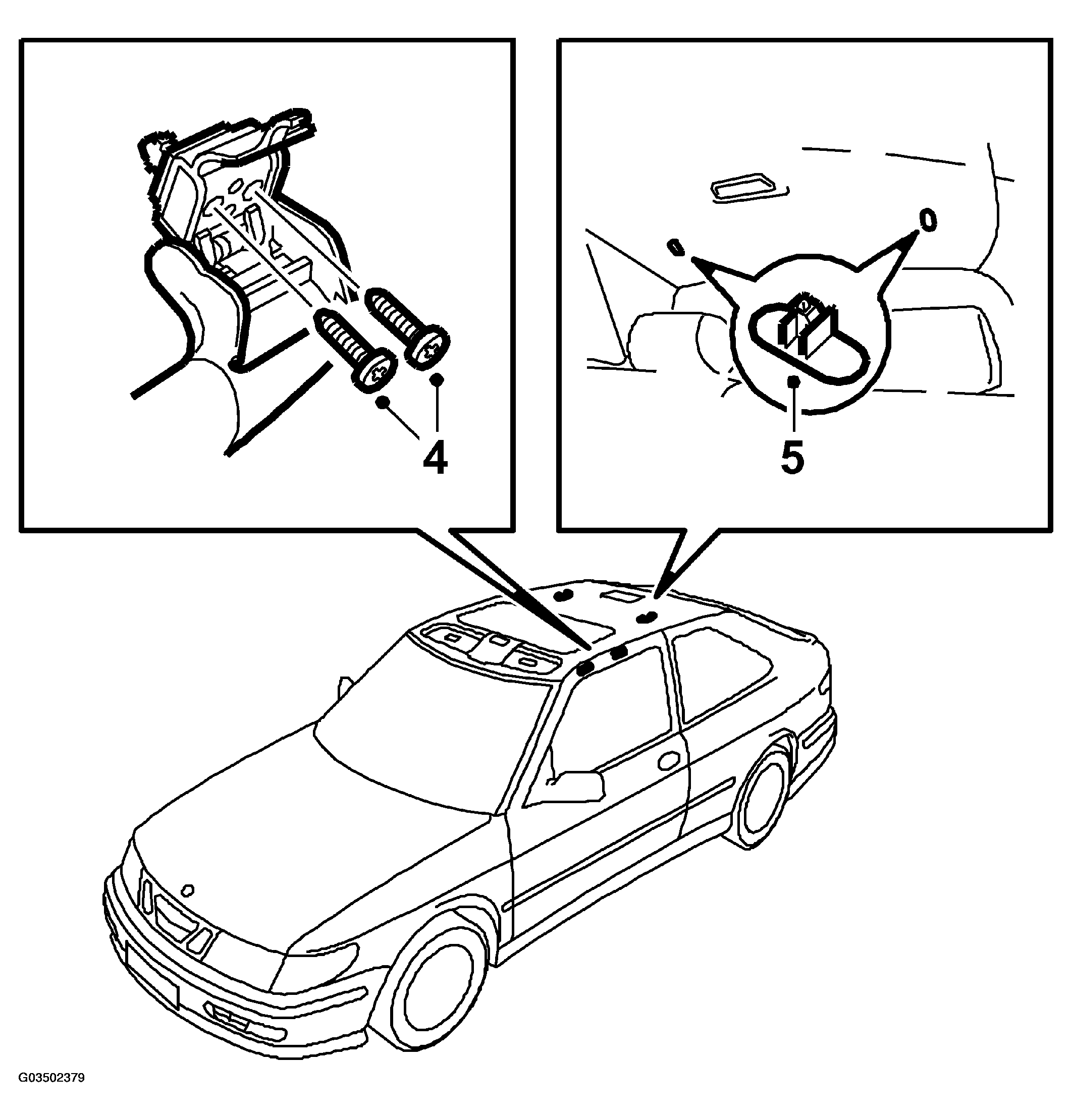

    6. Fig 2: Illustration For Step 4-5
    G03502379Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Unplug the cables that are connected to the antenna.
  7. Undo the nut by the antenna base and lift out the antenna from the inside.

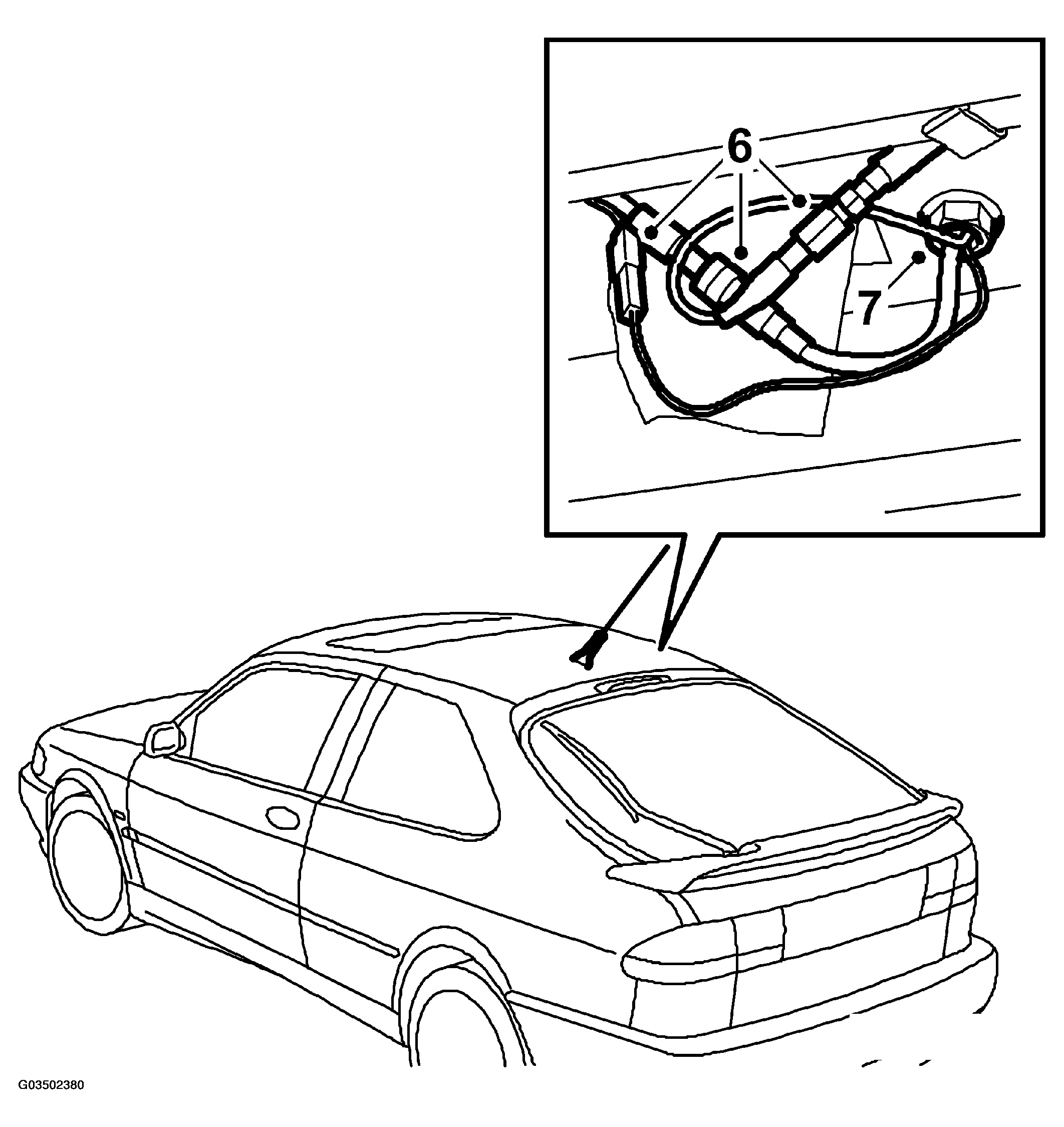

    8. Fig 3: Illustration For Step 6-7
    G03502380Courtesy of SAAB-SCANIA OF AMERICA, INC.
