To remove

  1. Remove the antenna, see ANTENNA, ELECTRIC .
  2. Undo the screws securing the antenna tube and pull out the tube.

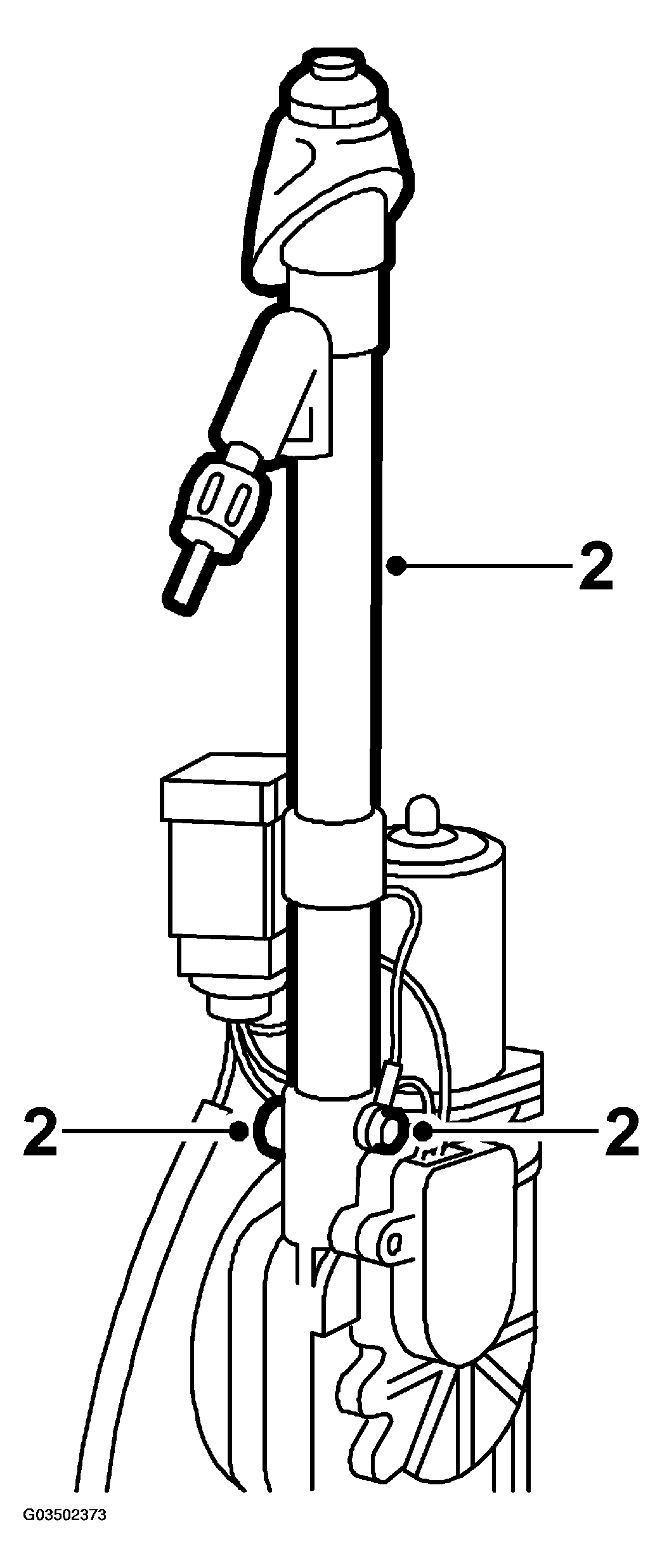

    3. Fig 1: Illustration For Step 2
    G03502373Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Connect the motor to a 12V battery and wait until the motor has stopped with the antenna extended.

    Then, carefully pull out the antenna tube rack from the motor.

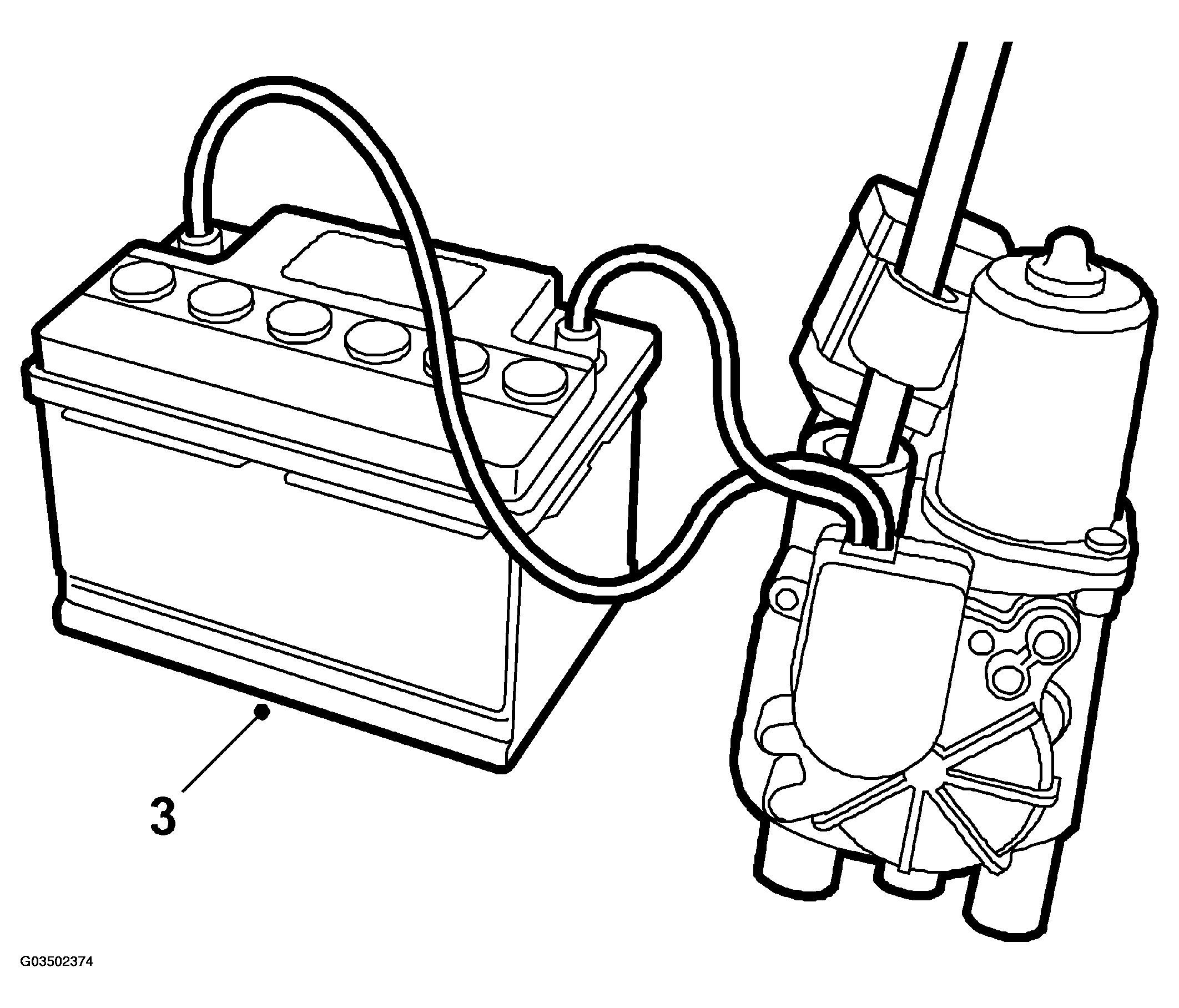

    4. Fig 2: Illustration For Step 3
    G03502374Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Push the new rack into the motor with the teeth facing the motor.

    Apply a little grease to the rack.

  5. Reconnect the motor to the battery at the same time as the rack is carefully pushed in.
    NOTE: Connect the positive supply to the battery intermittently to make it easier to insert the rack.

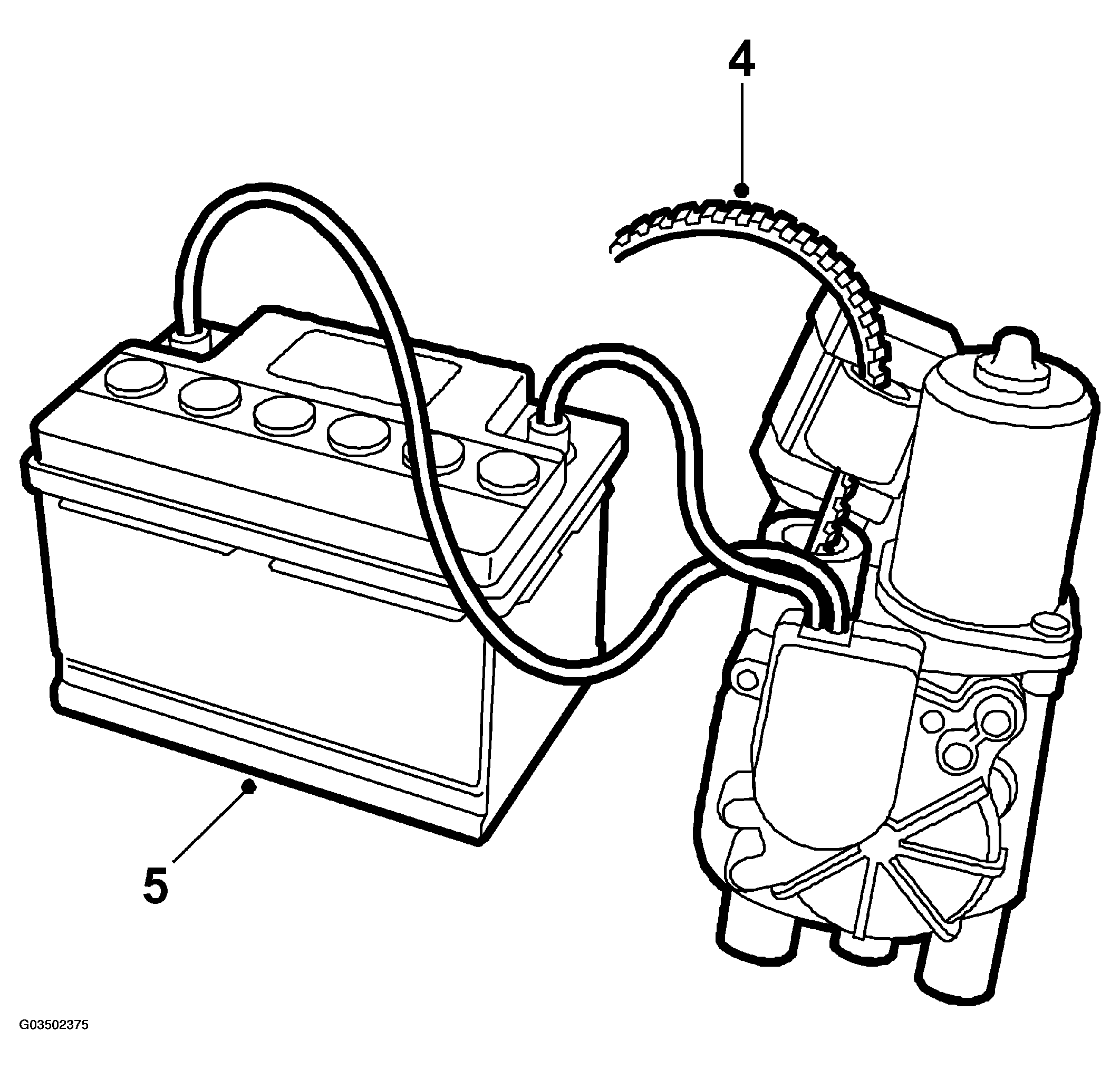

    6. Fig 3: Illustration For Step 4-5
    G03502375Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Disconnect the battery when the whole rack has been inserted.
  7. Fit the antenna tube.

    Make sure the tube is turned the right way.
