Fault Symptoms

Luggage compartment lighting malfunctioning

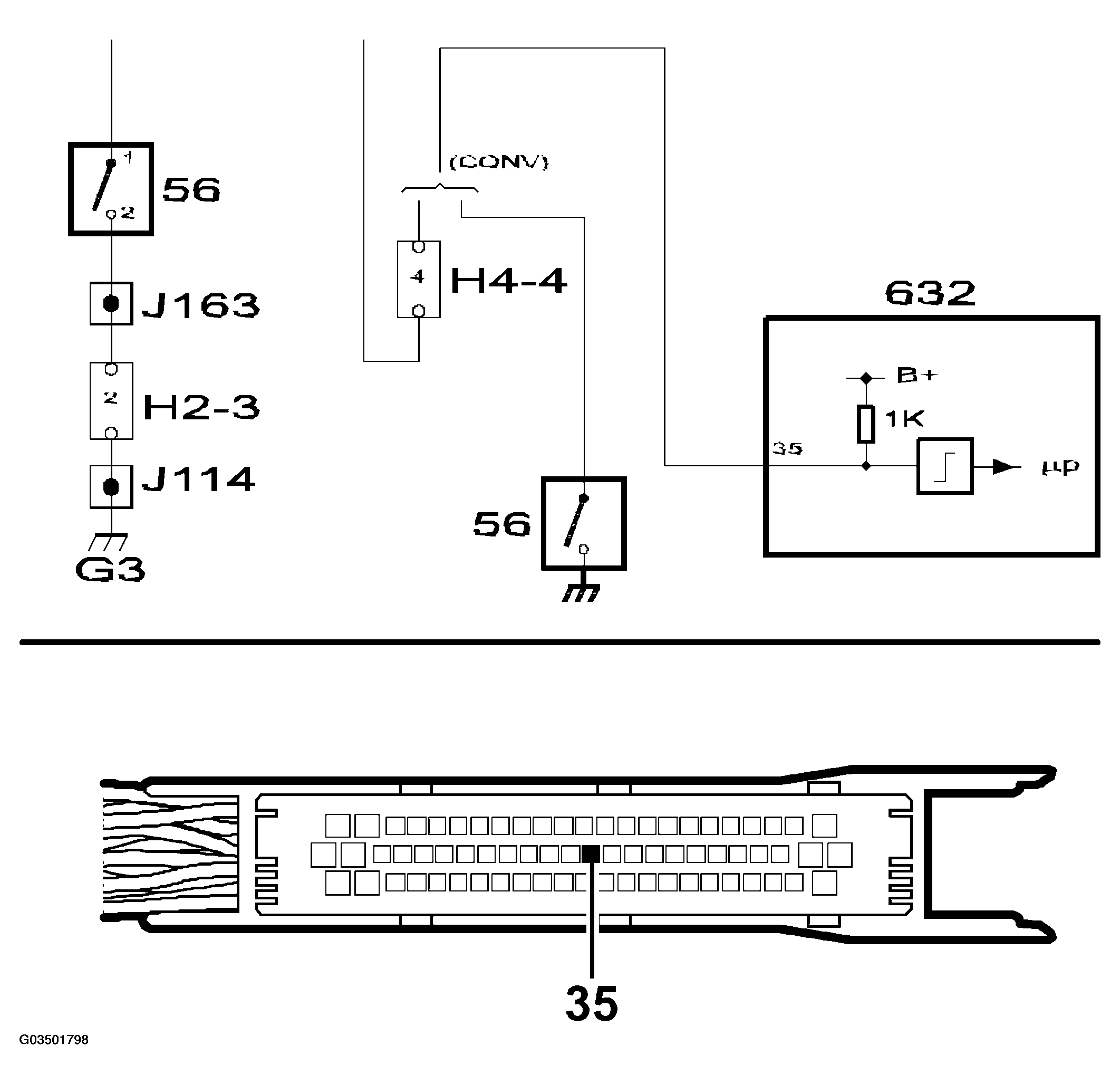

Fig 1: Identifying Luggage Compartment Lighting Malfunctioning Circuit Diagram (1 Of 2)
G03501798Courtesy of SAAB-SCANIA OF AMERICA, INC.

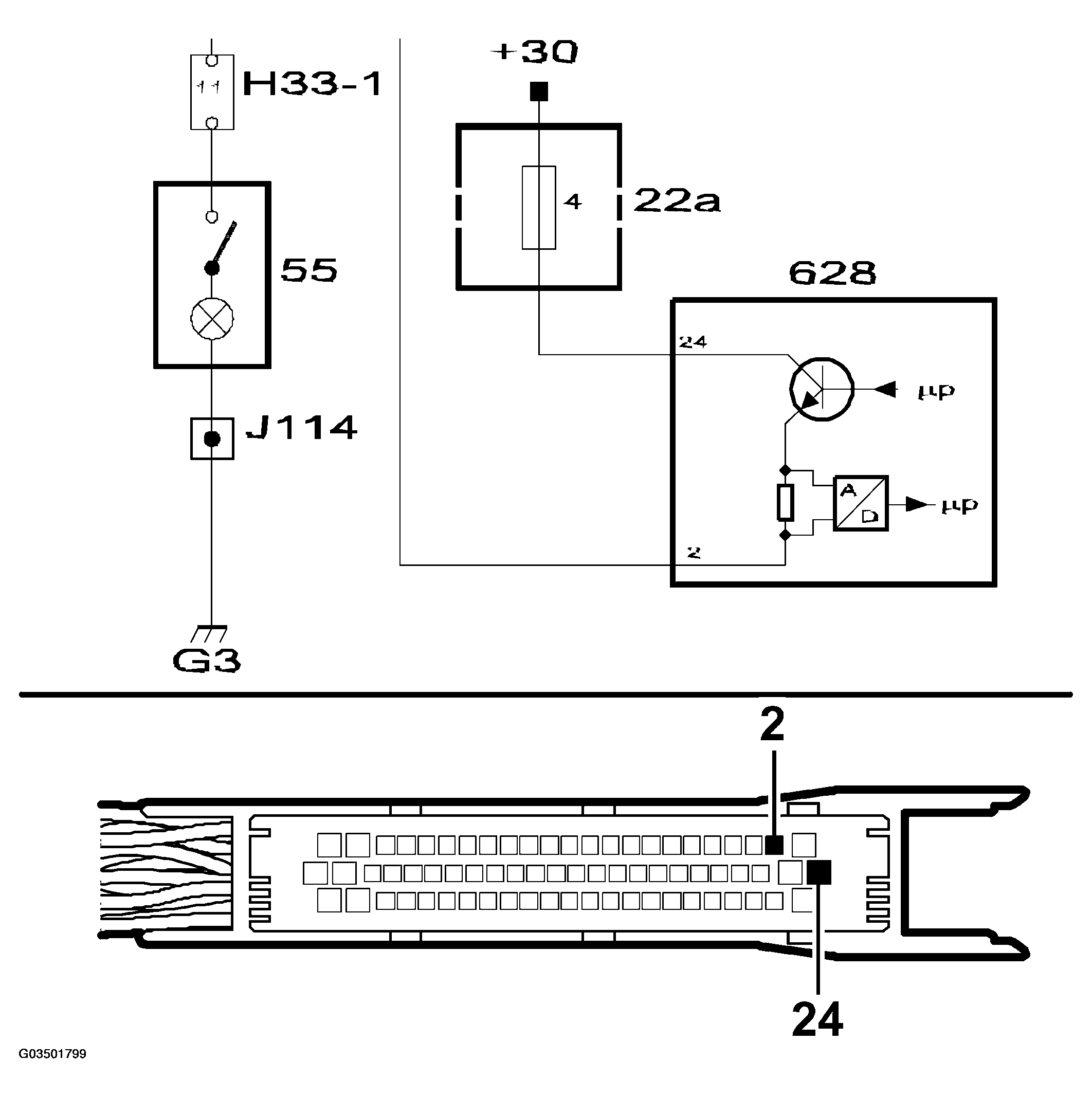

Fig 2: Identifying Luggage Compartment Lighting Malfunctioning Circuit Diagram (2 Of 2)
G03501799Courtesy of SAAB-SCANIA OF AMERICA, INC.
