Main instrument unit for petrol cars (540d)

K12

Fig 1: Identifying Main Instrument Unit For Petrol Cars (K12) - Connector Pinouts
G03501688Courtesy of SAAB-SCANIA OF AMERICA, INC.

K20

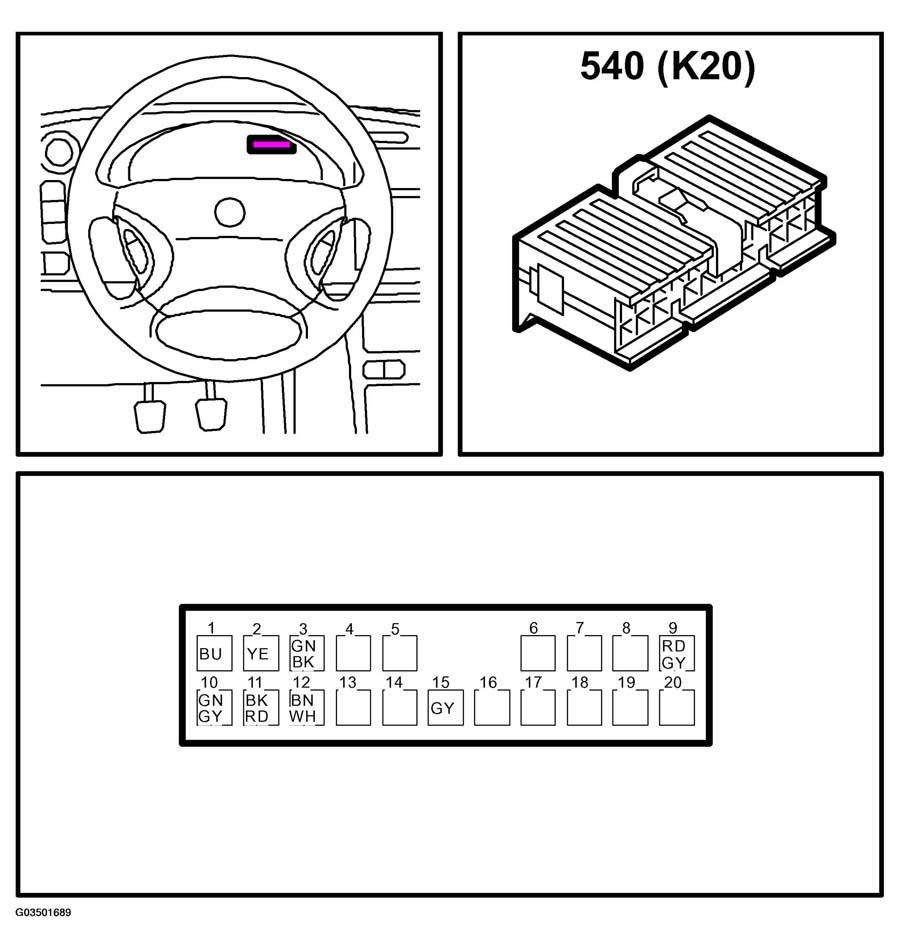

Fig 2: Identifying Main Instrument Unit For Petrol Cars (K20) - Connector Pinouts
G03501689Courtesy of SAAB-SCANIA OF AMERICA, INC.
