Main instrument unit for diesel cars (540c)

K12

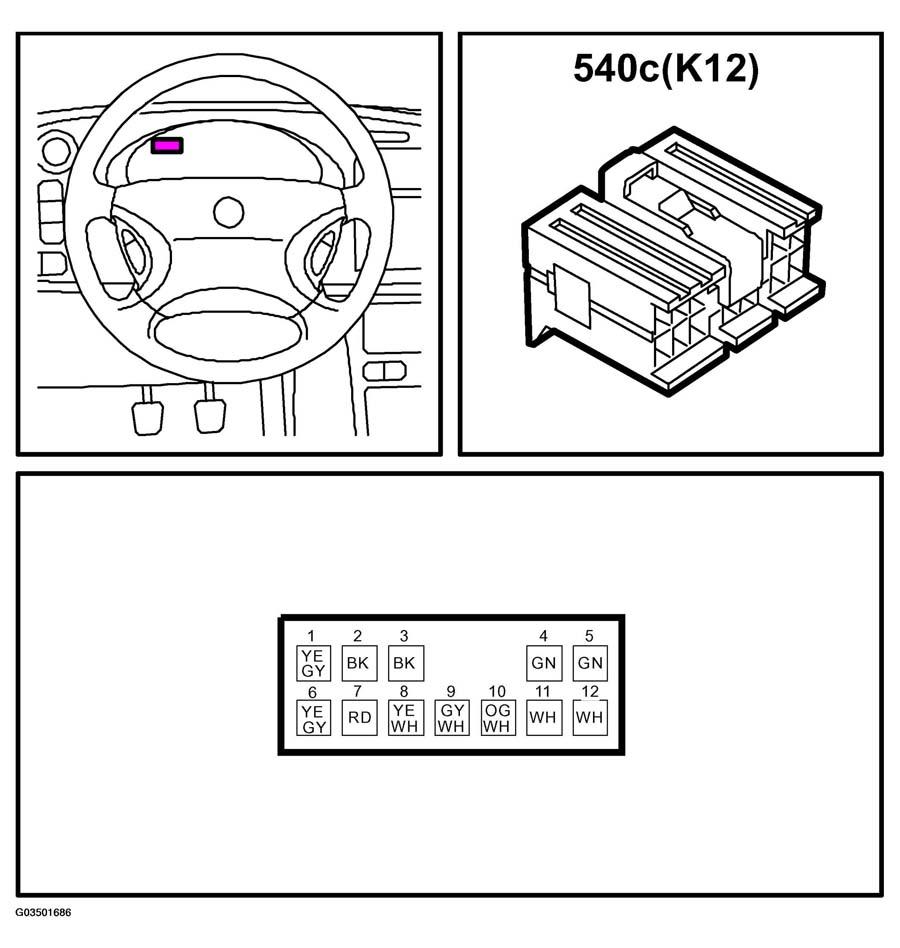

Fig 1: Identifying Main Instrument Unit For Diesel Cars (K12) - Connector Pinouts
G03501686Courtesy of SAAB-SCANIA OF AMERICA, INC.

K20

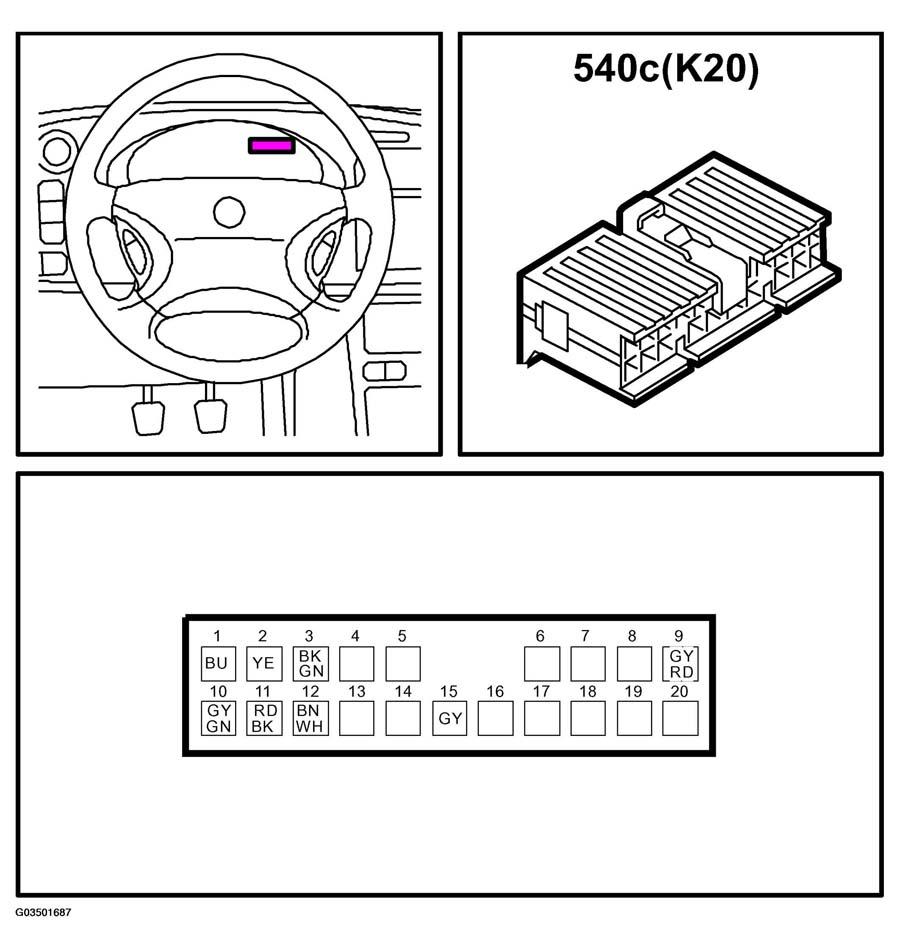

Fig 2: Identifying Main Instrument Unit For Diesel Cars (K20) - Connector Pinouts
G03501687Courtesy of SAAB-SCANIA OF AMERICA, INC.
