To Fit

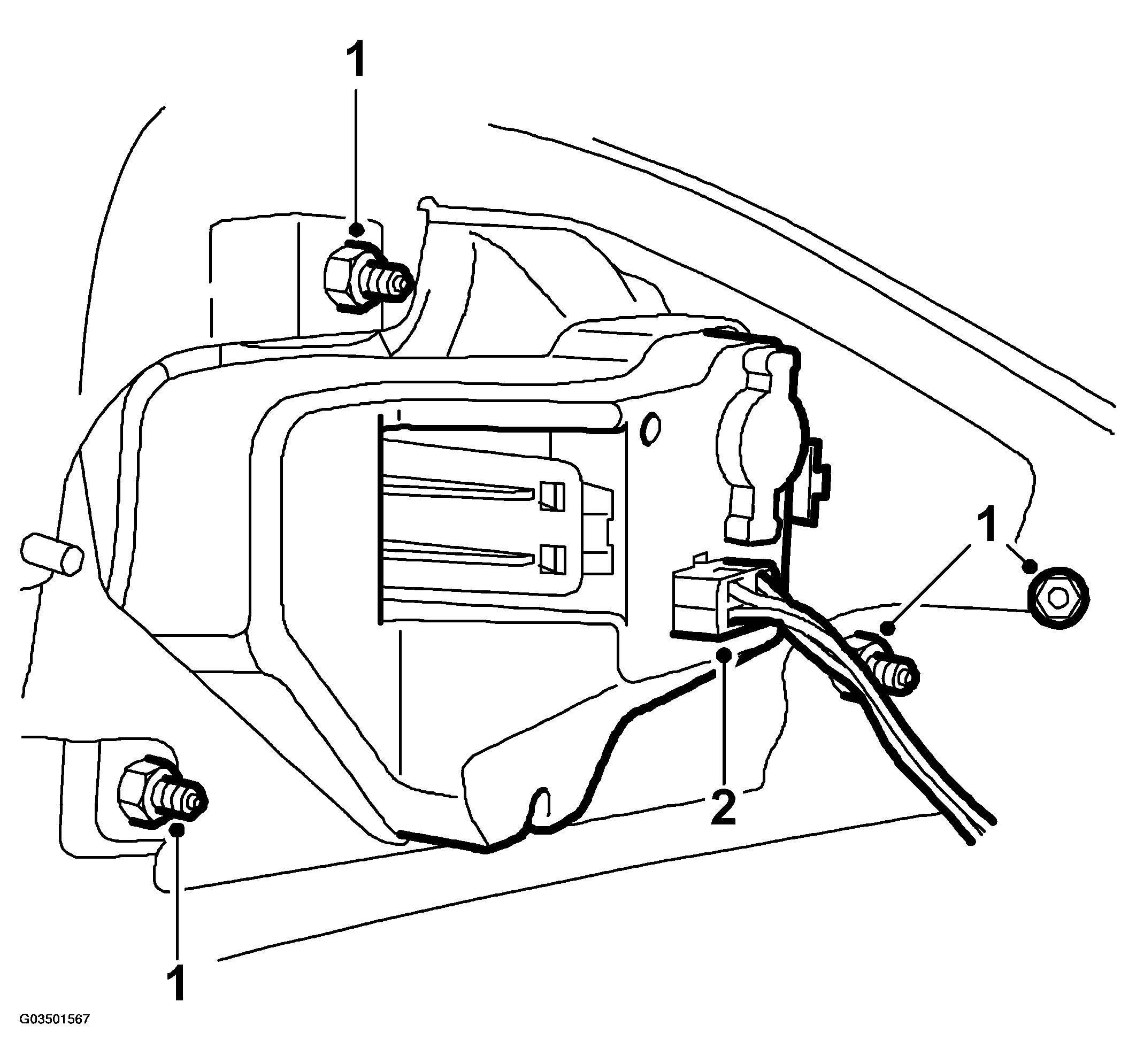

Fig 1: Illustration For Step 1-2
G03501567Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Position the lamp glass correctly and screw on the retaining nuts.
  2. Fit the lamp holder.
  3. Replace the nuts and side trim.

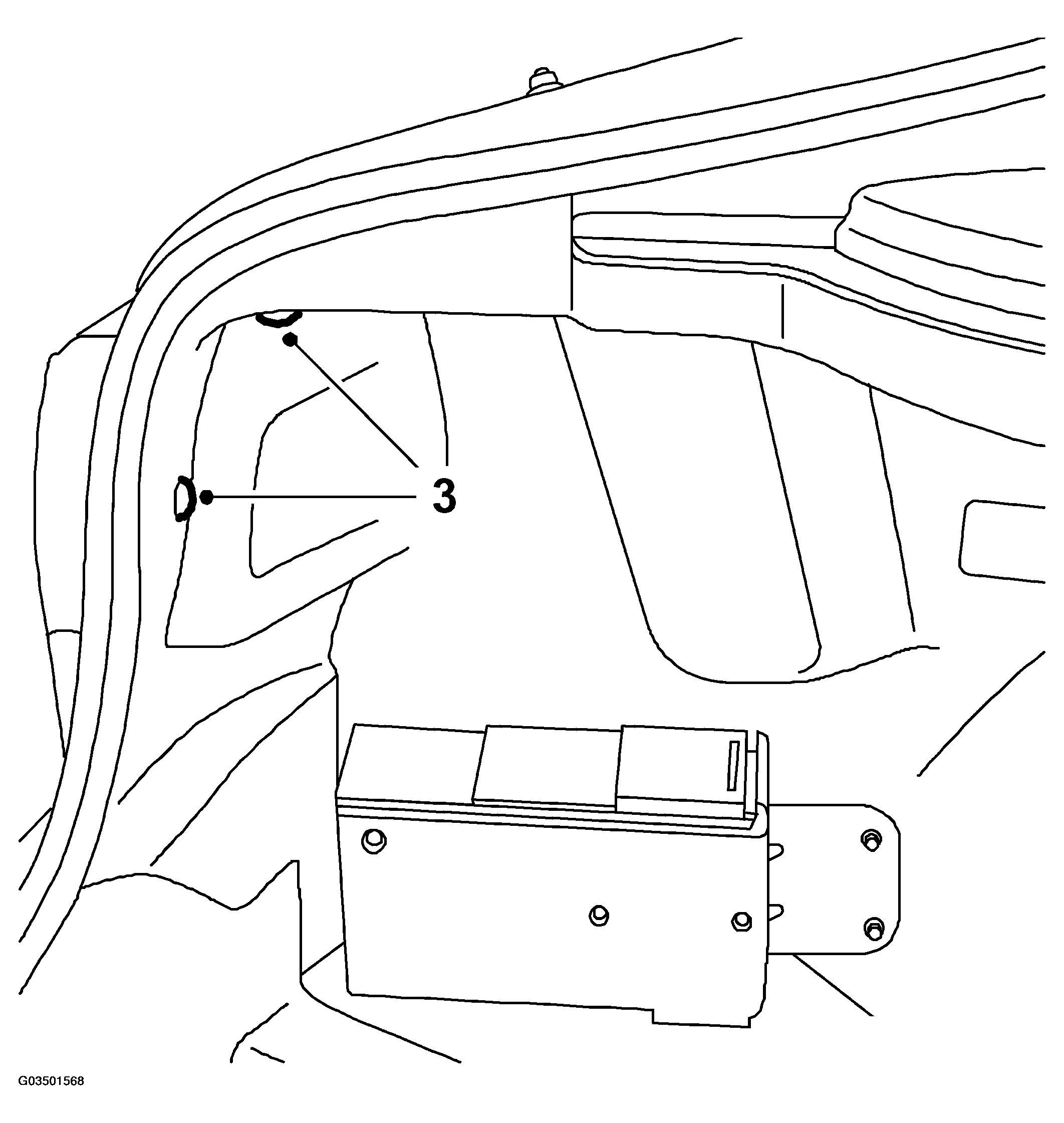

    Fig 2: Illustration For Step 3
    G03501568Courtesy of SAAB-SCANIA OF AMERICA, INC.
