Lamp Bulb, Rear Light

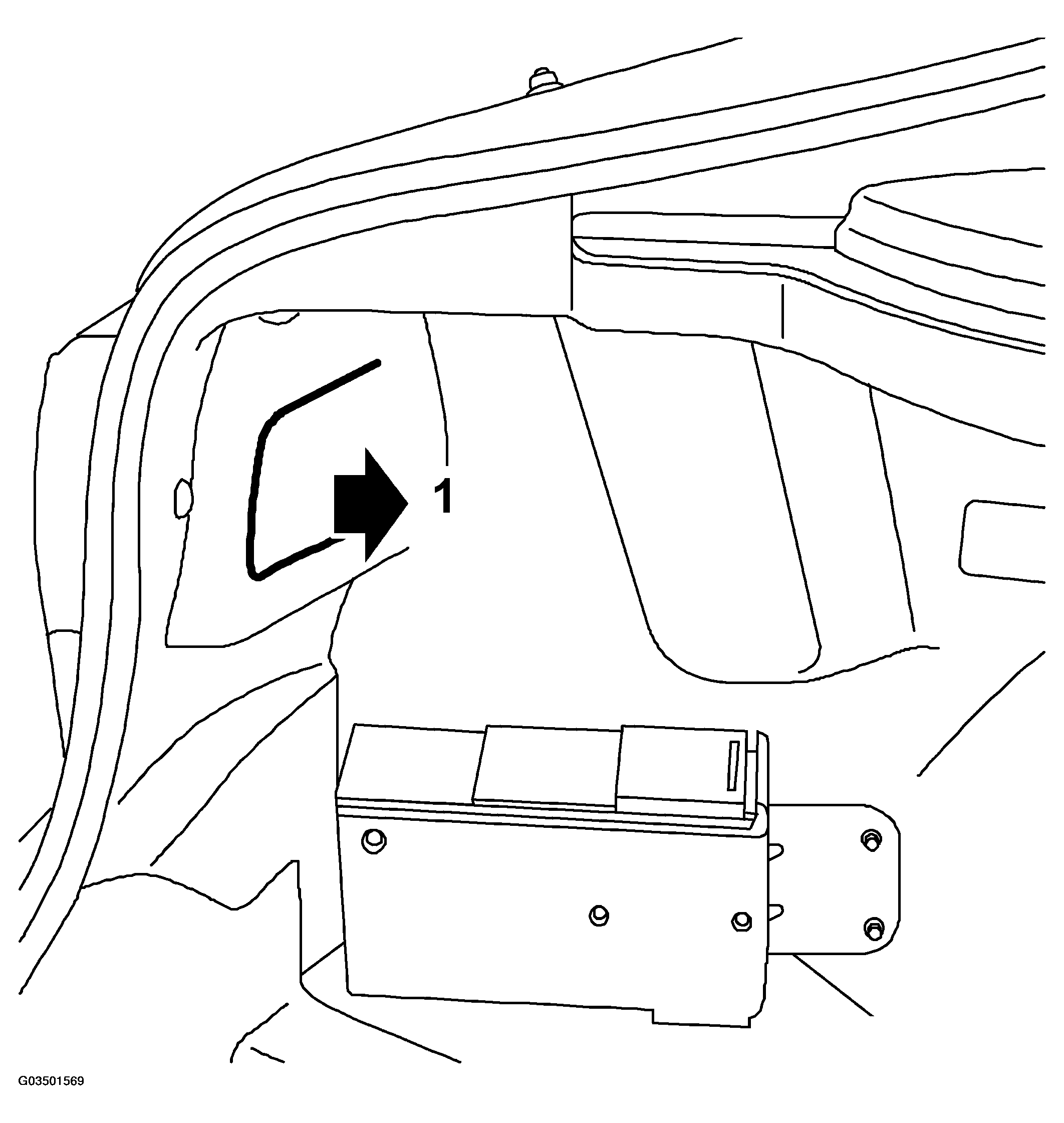

Fig 1: Illustration For Step 1
G03501569Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Open the cover in the trim.
  2. Loosen the lamp holder.

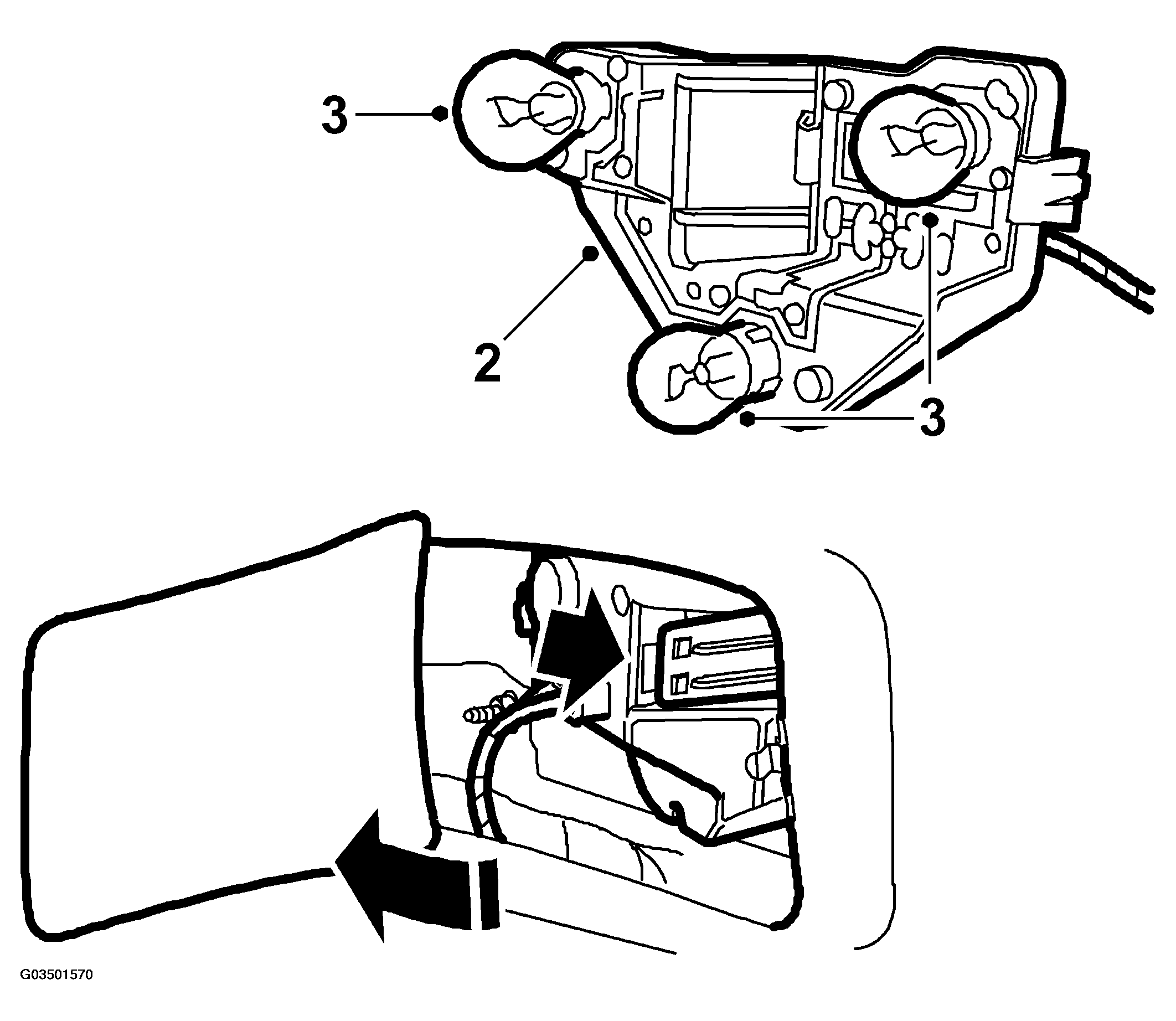

    Fig 2: Illustration For Step 2-3
    G03501570Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove and change the bulb.
  4. Fit the bulb holder.
  5. Put back the trim cover.
