Lamp Bulbs, Rear Light Fittings

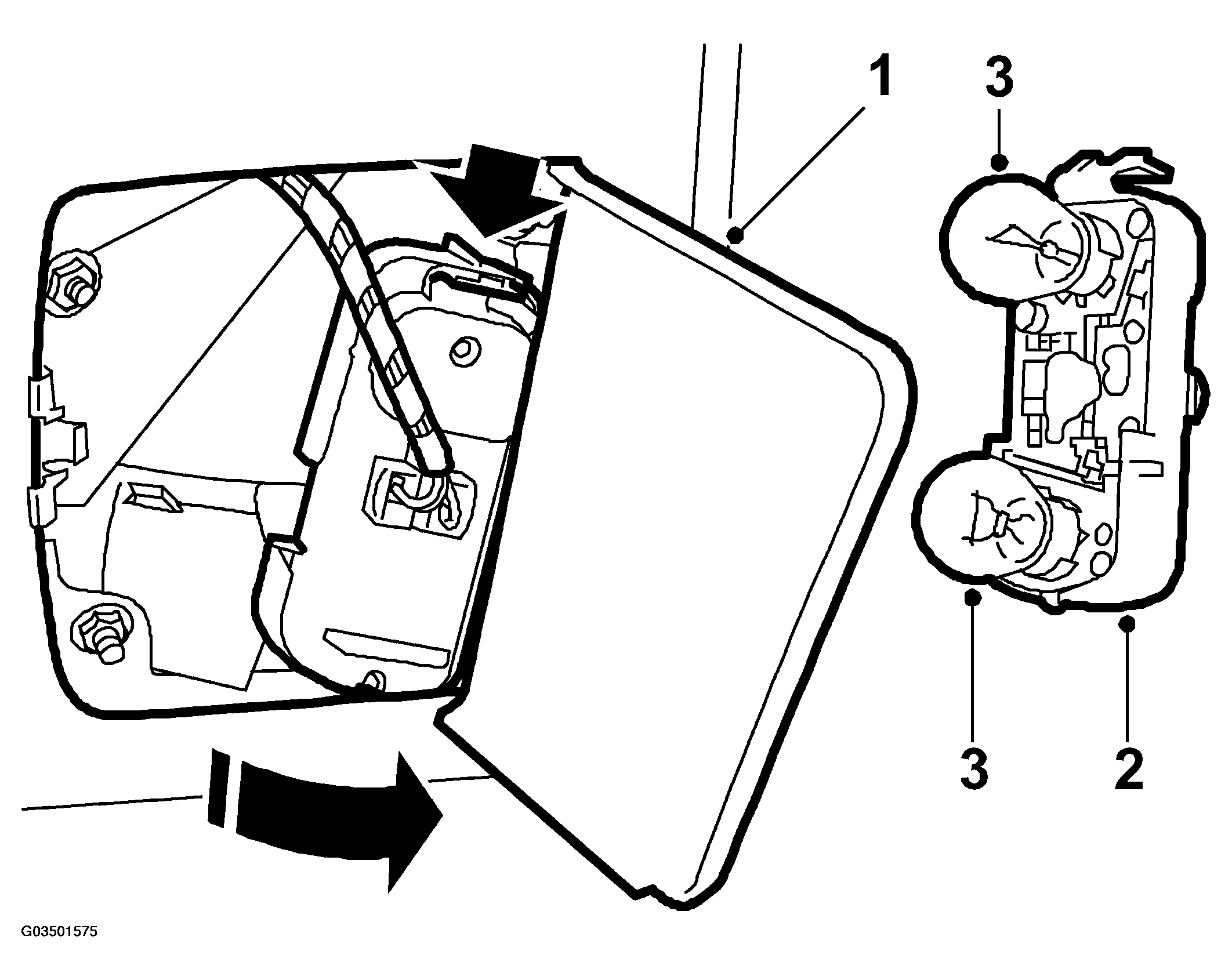

Fig 1: Illustration For Step 1-3
G03501575Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Open the cover in the luggage compartment trim on the side in question.
  2. Lift out the lamp holder.
  3. Remove and change bulb.
  4. Fit the bulb holder.
  5. Close the cover.
