Technical description: Ground: Ground

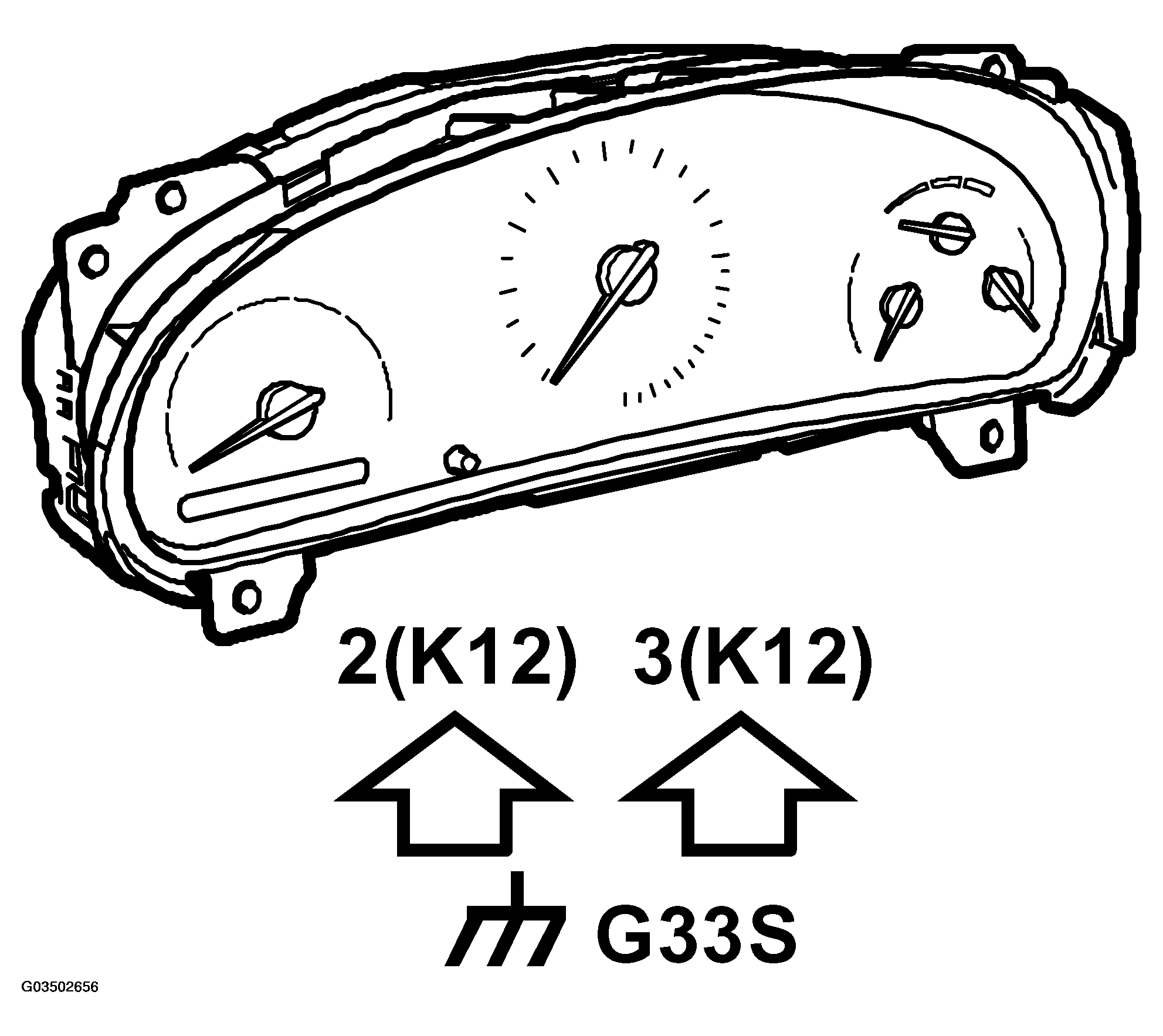

Fig 1: Identifying Ground Point Of Main Instrument Panel

Courtesy of SAAB-SCANIA OF AMERICA, INC.

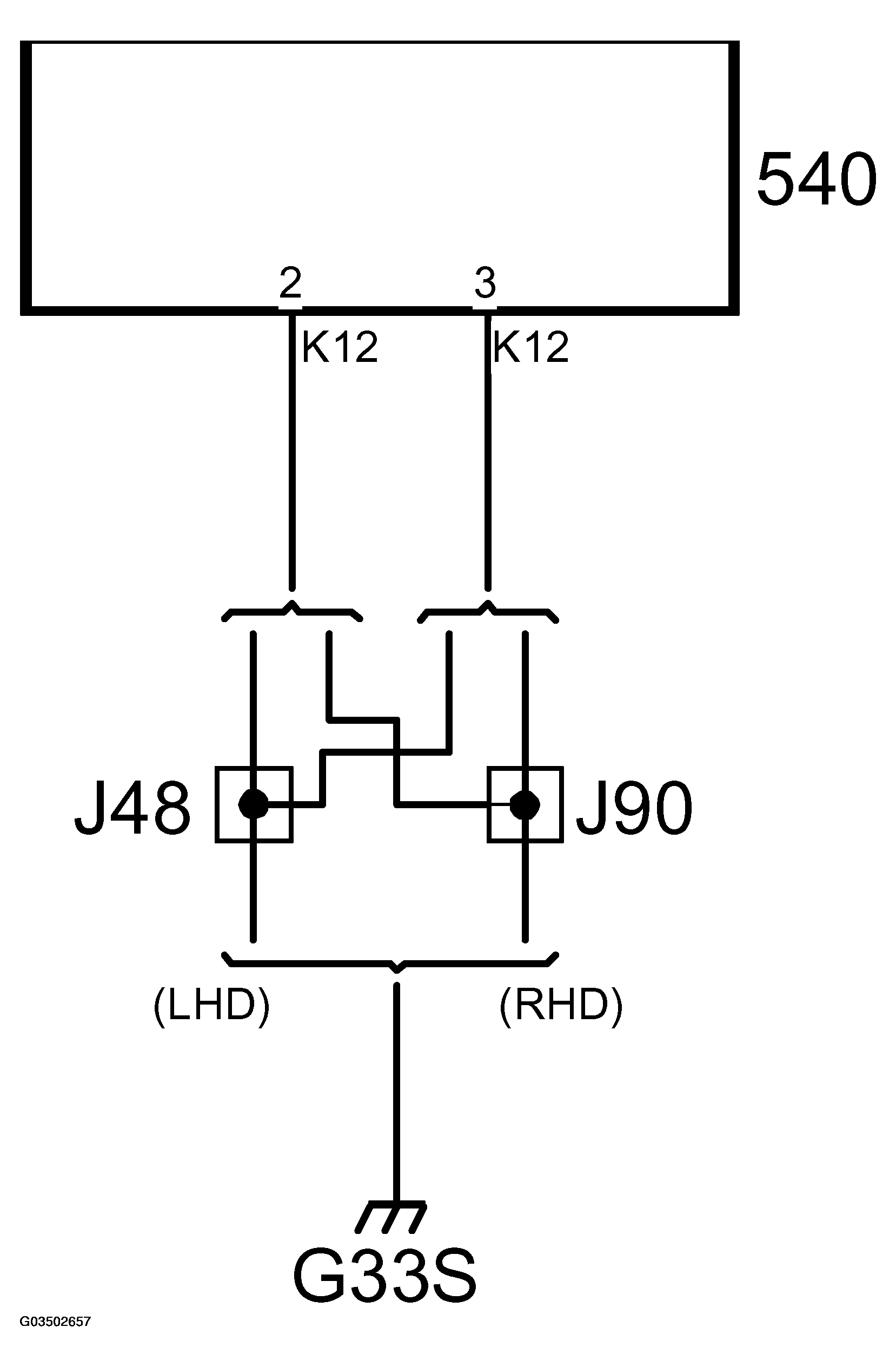

Fig 2: Identifying Circuit Diagram - Grounding Point To Main Instrument Panel

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The main instrument unit is grounded through pin 2 (K12) and pin 3 (K12) to grounding point G33S. The grounding points are internally connected.
