Home >> Saab >> 2001 >> 9-3 Base, 4D Hatchback, Automatic >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Exterior Lights >> Lighting And Signaling Systems >> Component location >> Switch, beam length adjustment (282)

Switch, beam length adjustment (282)

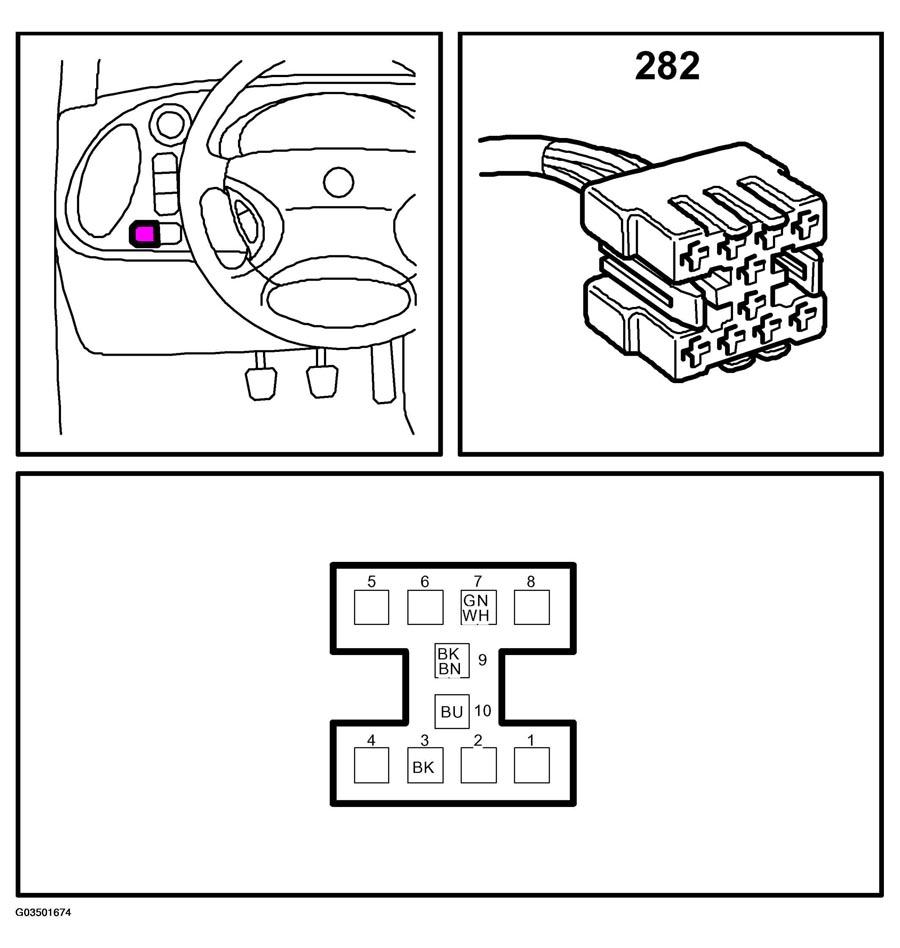

Fig 1: Identifying Beam Length Adjustment Switch - Connector Pinouts

G03501674

Courtesy of SAAB-SCANIA OF AMERICA, INC.
