To Fit

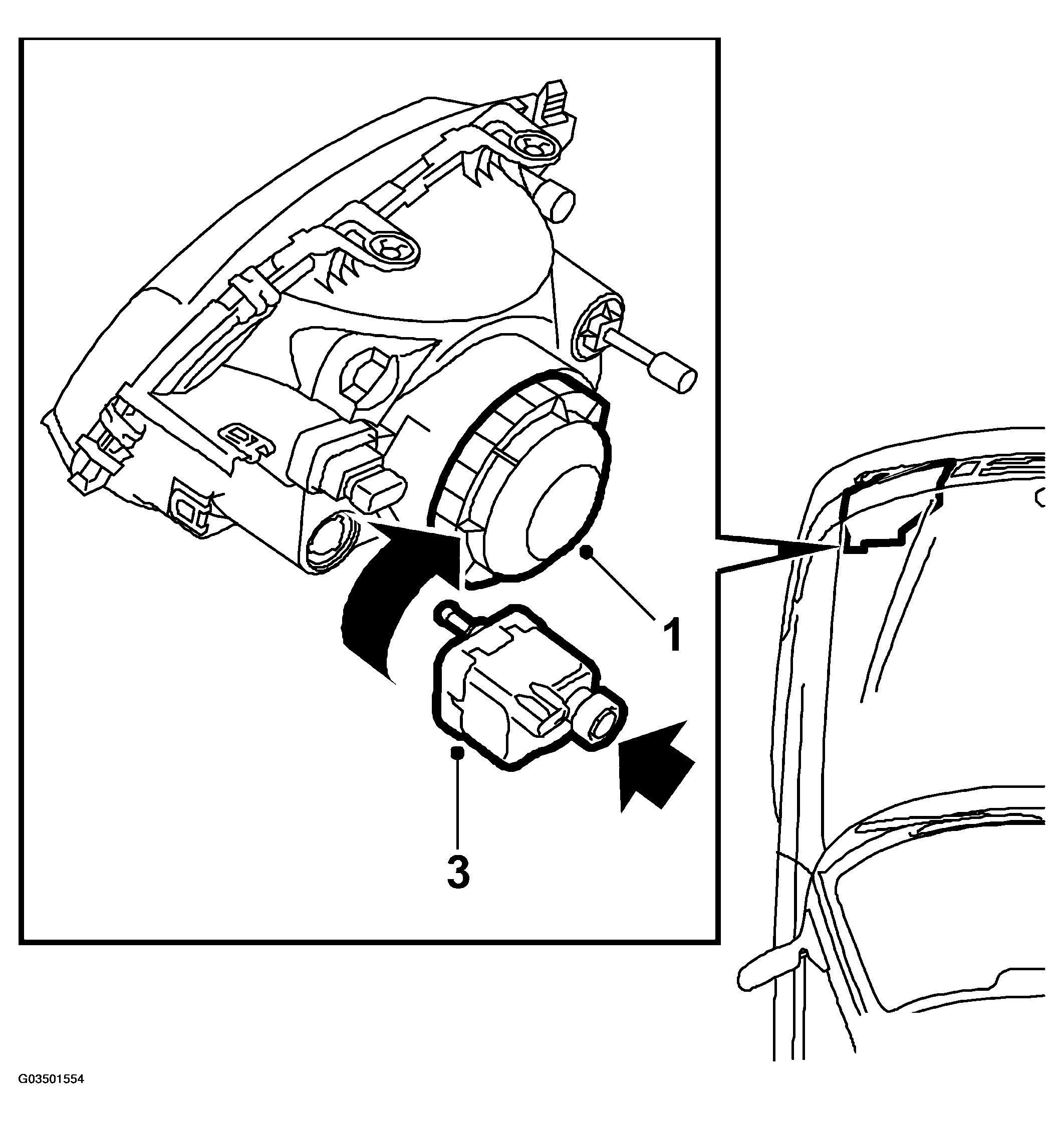

Fig 1: Illustration For Step 1-3
G03501554Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the cover.
  2. Lift up the reflector and press down the motor shaft into the groove.
  3. Press in the motor and turn it approx. 45° to fasten it.
  4. Fit the headlamp, see Main Lighting .
  5. Fit the direction indicator, see Direction Indicators, Front .
