4-pin connector (loudspeaker)

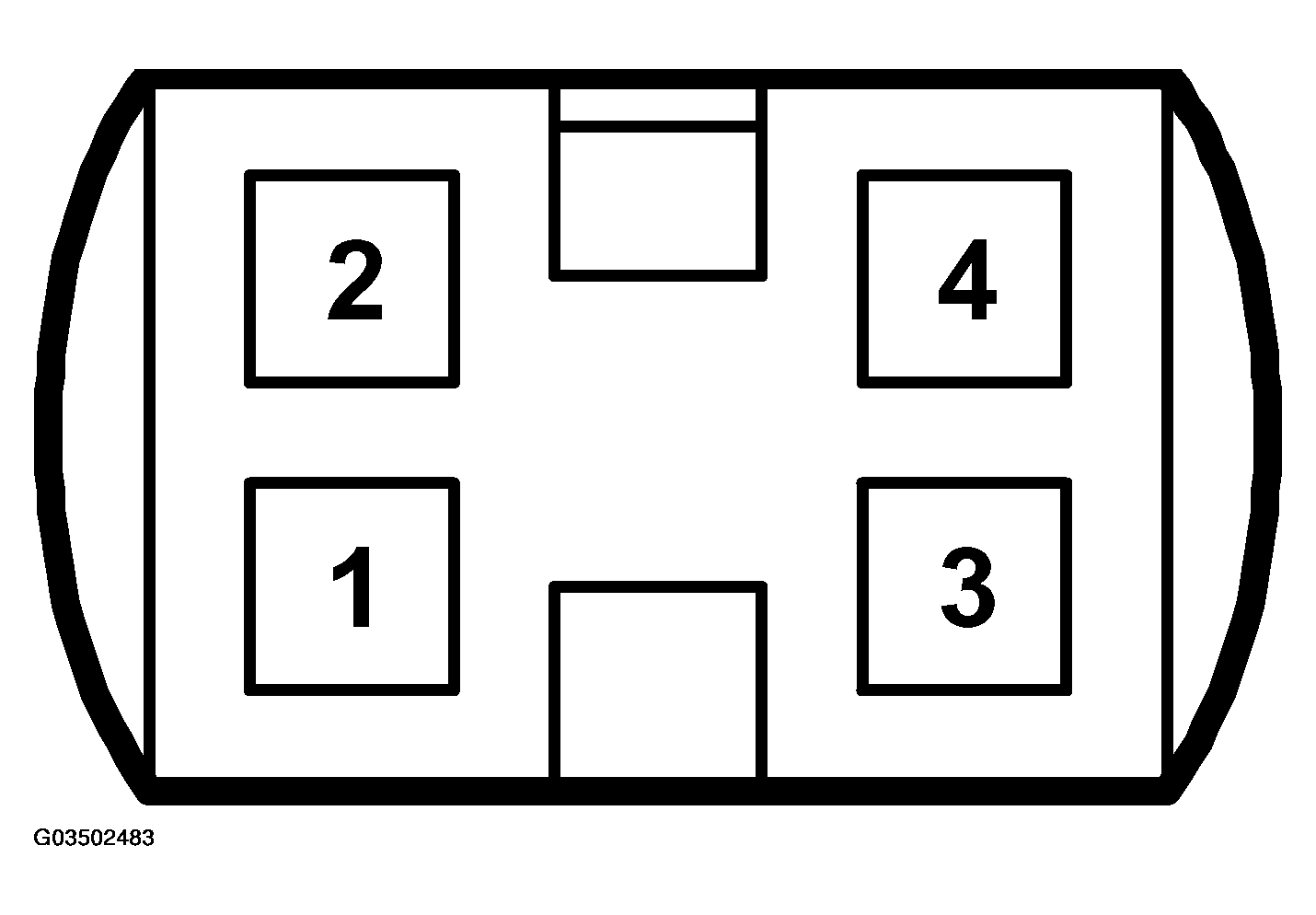

Fig 1: Identifying 4-Pin Loudspeaker - Connector Pinout
G03502483Courtesy of SAAB-SCANIA OF AMERICA, INC.

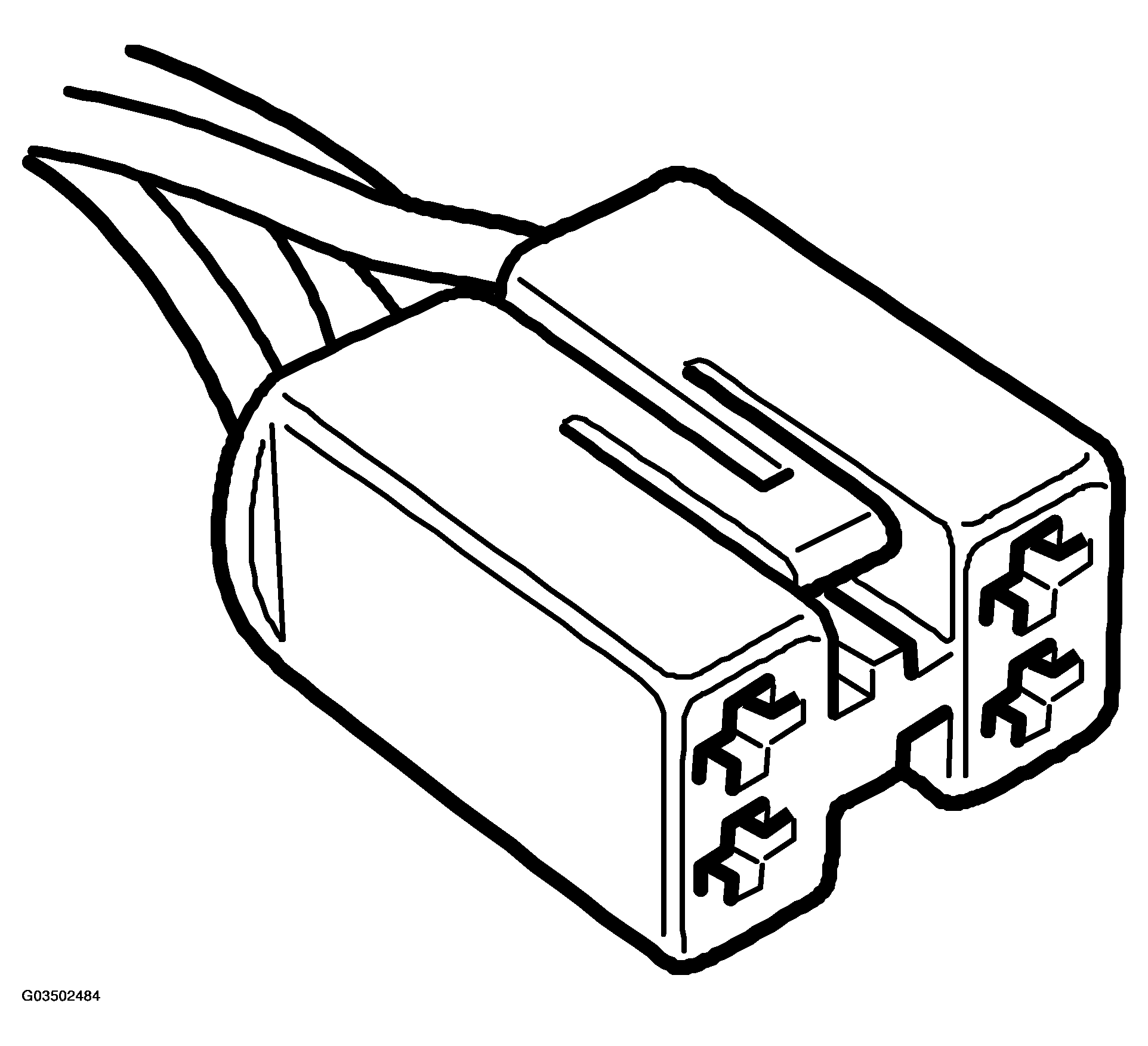

Fig 2: Identifying 4-Pin Loudspeaker Connector
G03502484Courtesy of SAAB-SCANIA OF AMERICA, INC.
4-PIN LOUDSPEAKER CONNECTOR SPECIFICATION

Pin No. Lead colour Component/Function In/out Test conditions Across Test reading See
1 GY Loudspeaker right front door (+) Out Connector unplugged from the amplifier. 1--2 Approx. 3.2 ohms SYSTEM WIRING DIAGRAMS
2 BN/RD Loudspeaker right front door (-) Out Connector unplugged from the amplifier. 1--2 Approx. 3.2 ohms SYSTEM WIRING DIAGRAMS
3 YE/WH Loudspeaker left front door (+) Out Connector unplugged from the amplifier. 3--4 Approx. 3.2 ohms SYSTEM WIRING DIAGRAMS
4 OG/WH Loudspeaker left front door (+) Out Connector unplugged from the amplifier. 3--4 Approx. 3.2 ohms SYSTEM WIRING DIAGRAMS
