2-pin connector (power supply)

Fig 1: Identifying 2-Pin Power Supply - Connector Pinout
G03502485Courtesy of SAAB-SCANIA OF AMERICA, INC.

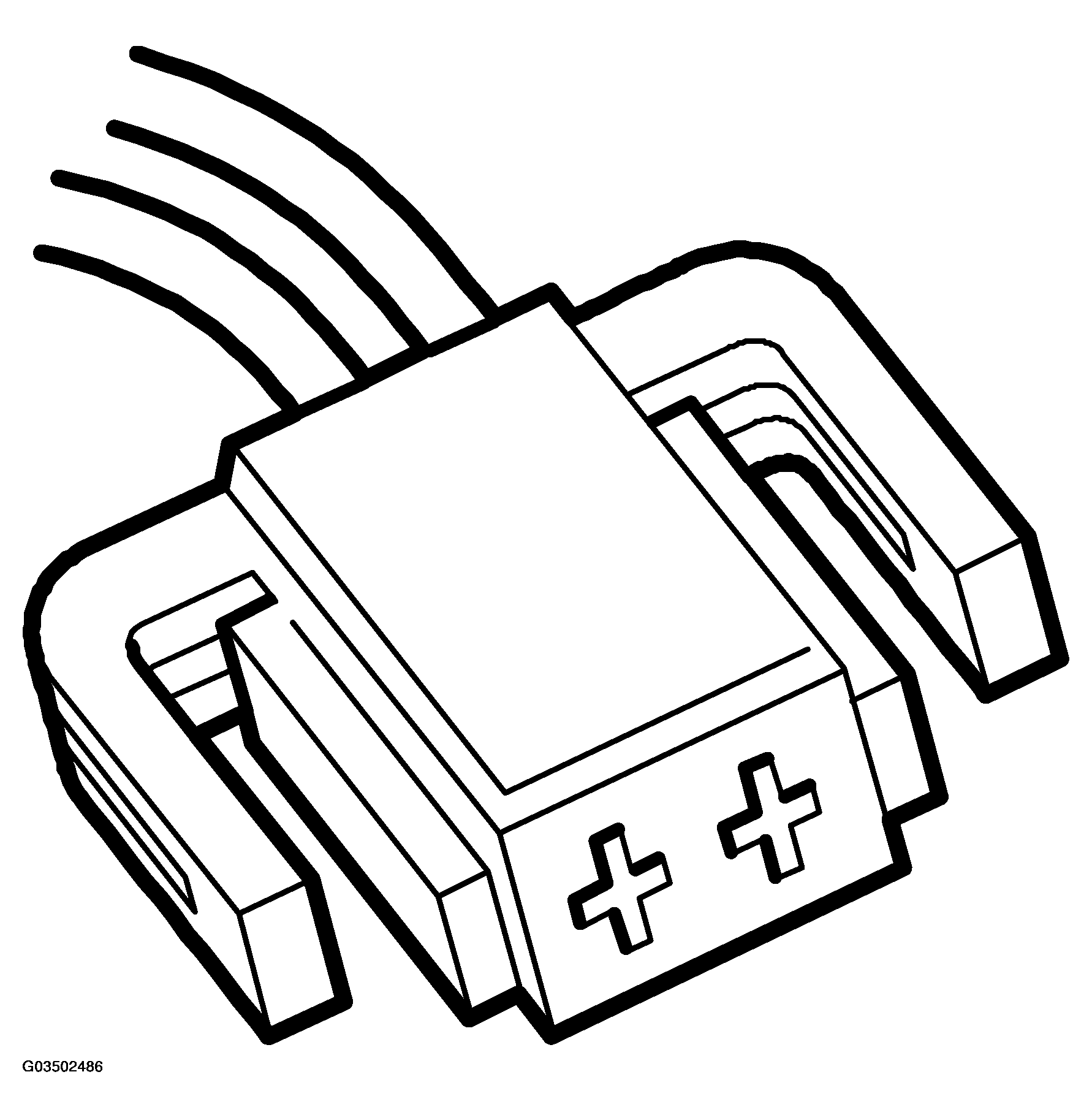

Fig 2: Identifying 2-Pin Power Supply Connector
G03502486Courtesy of SAAB-SCANIA OF AMERICA, INC.
2-PIN POWER SUPPLY CONNECTOR SPECIFICATION

Pin No. Lead colour Component/Function In/out Test conditions Across Test reading See
1 BK Ground In Always B+ -1
1-B		 B+
<0.5V		 SYSTEM WIRING DIAGRAMS
2 RD Power supply (+30 circuit) In Always 2-B
B+ -2		 B+
<0.5V		 SYSTEM WIRING DIAGRAMS
