Home >> Saab >> 2001 >> 9-3 Base, 4D Hatchback, Automatic >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Entertainment Systems >> Audio System - 9-3 (9400) >> Fault Diagnosis, Symptoms >> No sound from one of the loudspeakers >> Notes

No sound from one of the loudspeakers: Notes

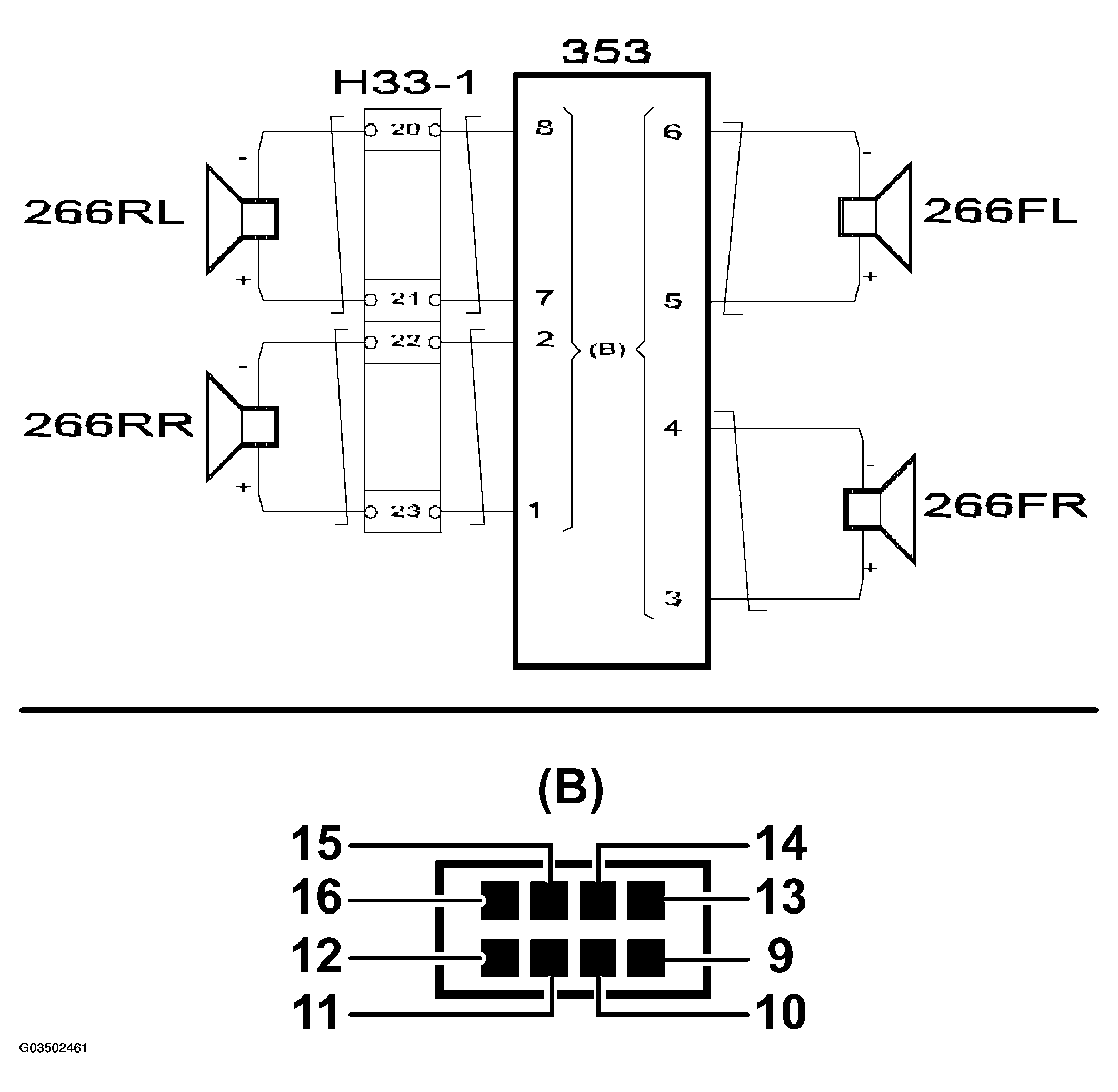

Fig 1: Loudspeaker Circuit Diagram

G03502461

Courtesy of SAAB-SCANIA OF AMERICA, INC.
