To remove

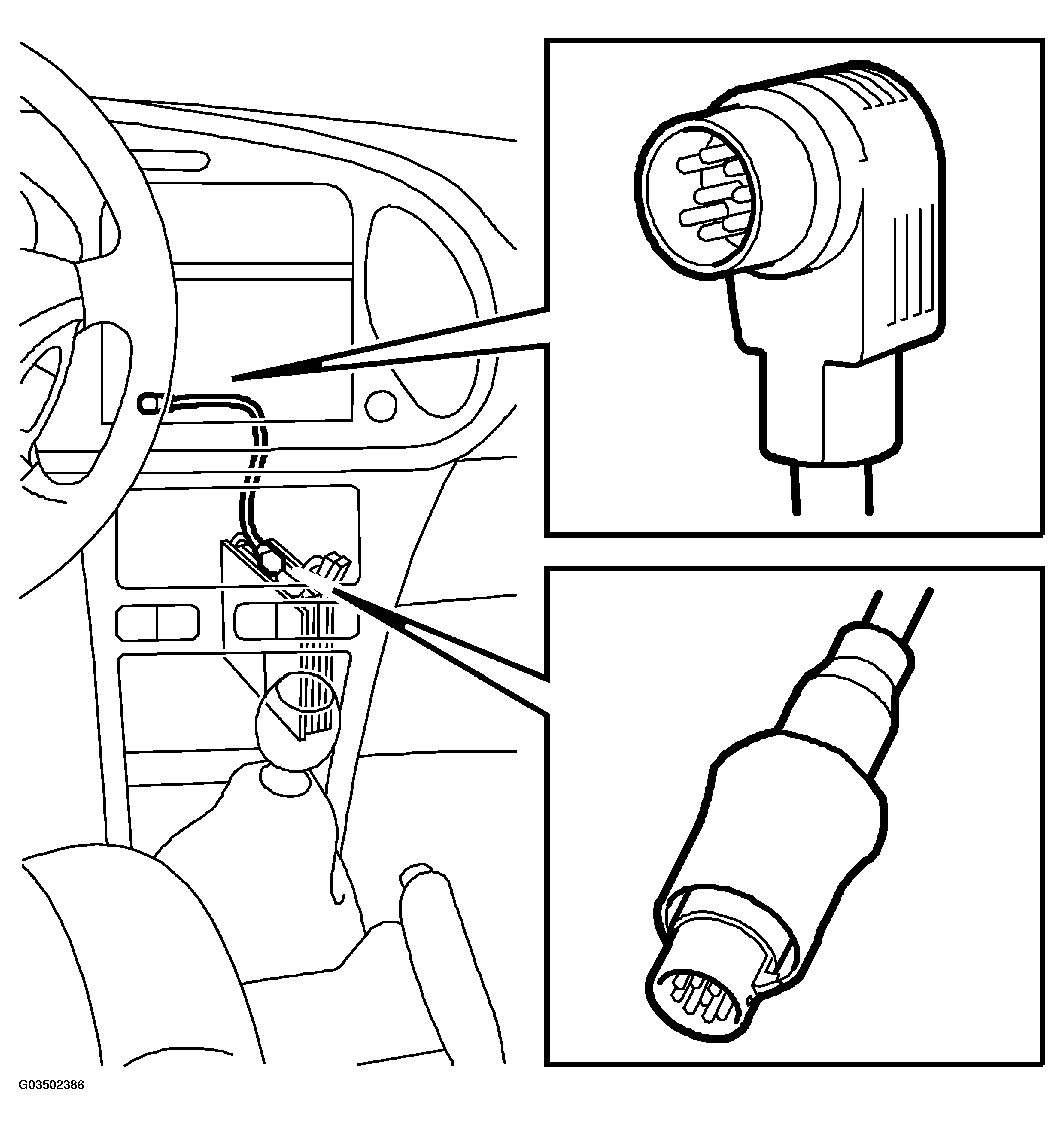

Fig 1: Identifying Wiring Harness Between The Radio And The Amplifier
G03502386Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the glove box and the side panel on the right-hand side of the centre console.
  2. Unplug the connectors to the radio and the amplifier.
