To fit

  1. Connect the electric lead.
  2. Put the loudspeaker in place and tighten the screws.

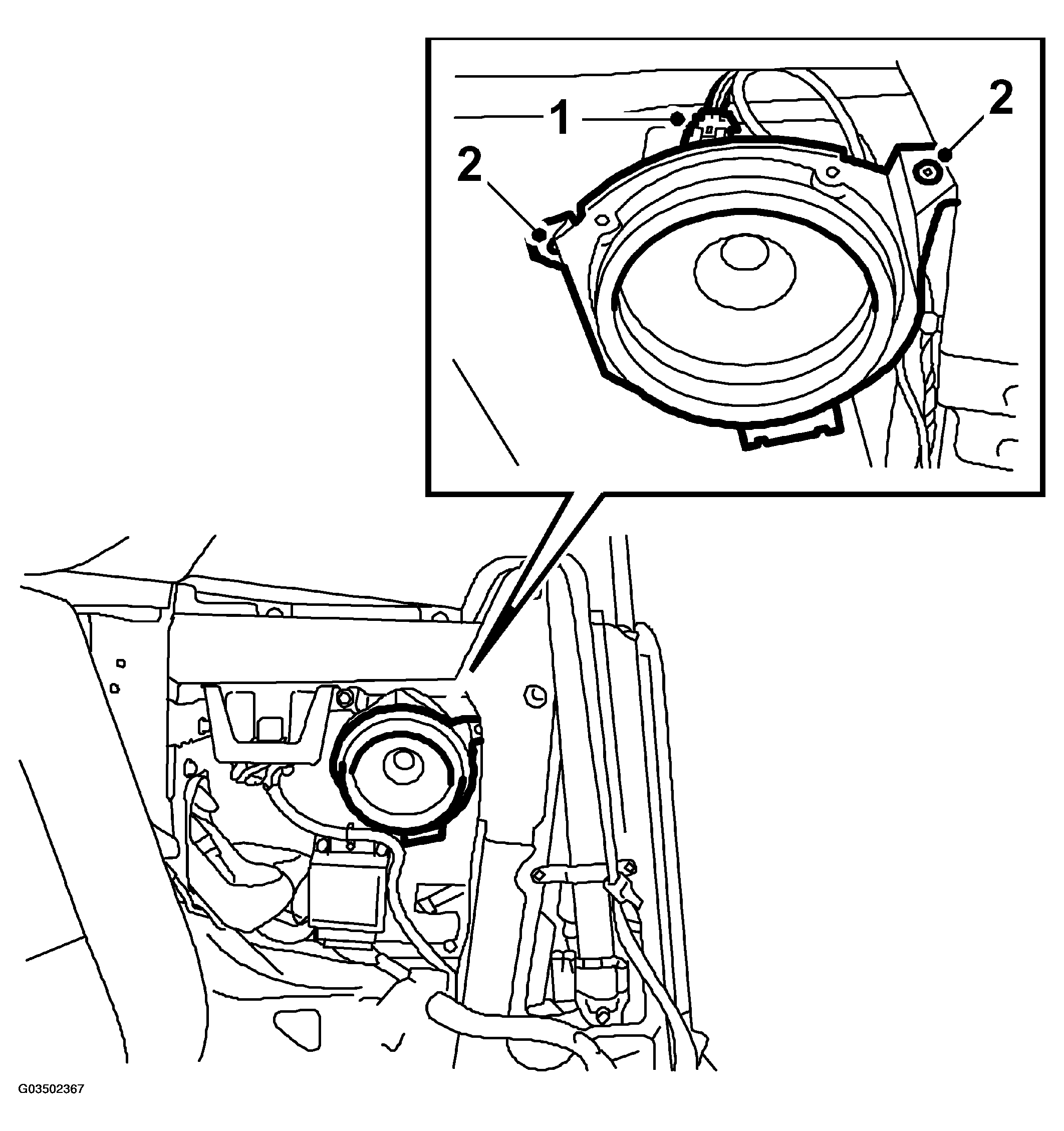

    3. Fig 1: Illustration For Step 1-2
    G03502367Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Refit the side trim.
