To remove

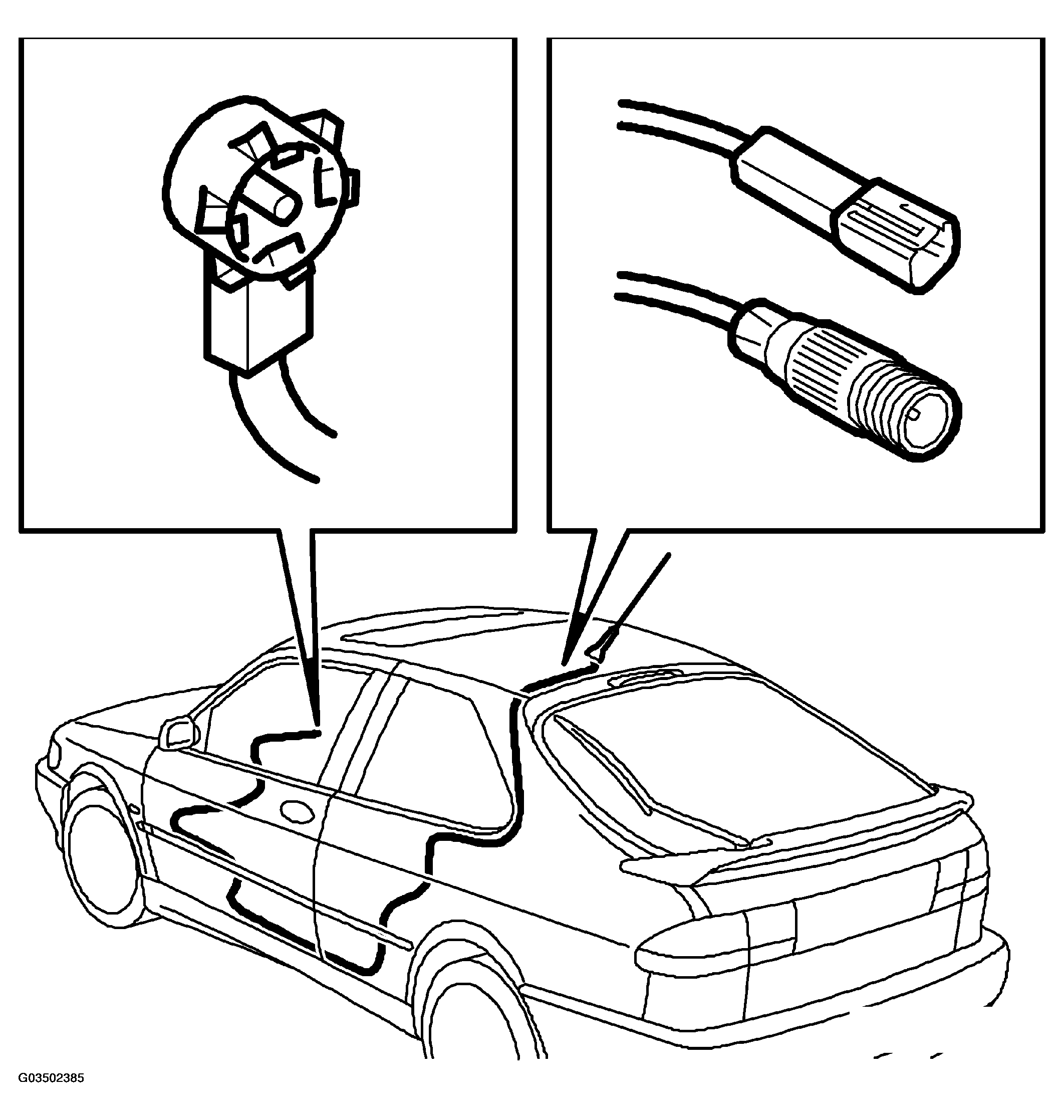

Fig 1: Identifying Antenna Cable/Power Cable - Radio (Viggen)
G03502385Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the front and rear scuff plates on the left-hand side.
  2. Remove the left front seat.
  3. Remove the left side panel on the centre console.
  4. Lift the rear left seat cushion and fold down the rear backrest.
  5. Undo the screws securing the loudspeaker grille and side trim on the left-hand side.
  6. Remove the trim of the left-hand C pillar.
  7. Lower the rear edge of the headlining. Exercise care when handling the headlining as it can easily break.
  8. Unplug the connectors.
