B. Additional components on RHD cars

COMPONENT CONNECTIONS

  Via crimp J90 FUSES & CIRCUIT BREAKERS
16 Instrument lighting rheostat
88 Switch, extra fog lights
161 Fog light switch
445 Data link connector, 16-pin CARB
540 Main instrument unit

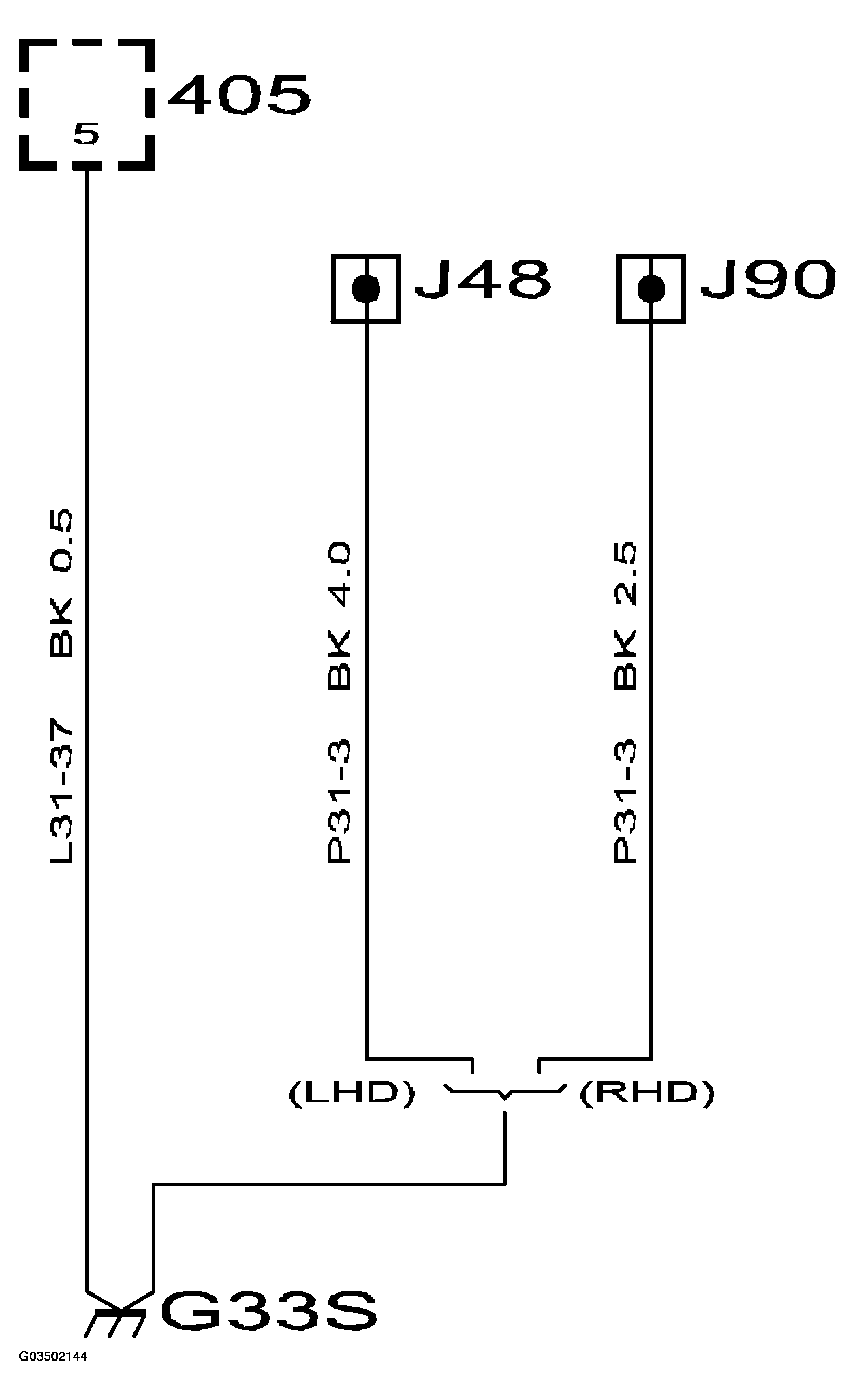

Fig 1: Crimp - Grounding Point G33S
G03502144Courtesy of SAAB-SCANIA OF AMERICA, INC.
