System overview, electrically heated rear window and door mirrors (Cars with ACC)

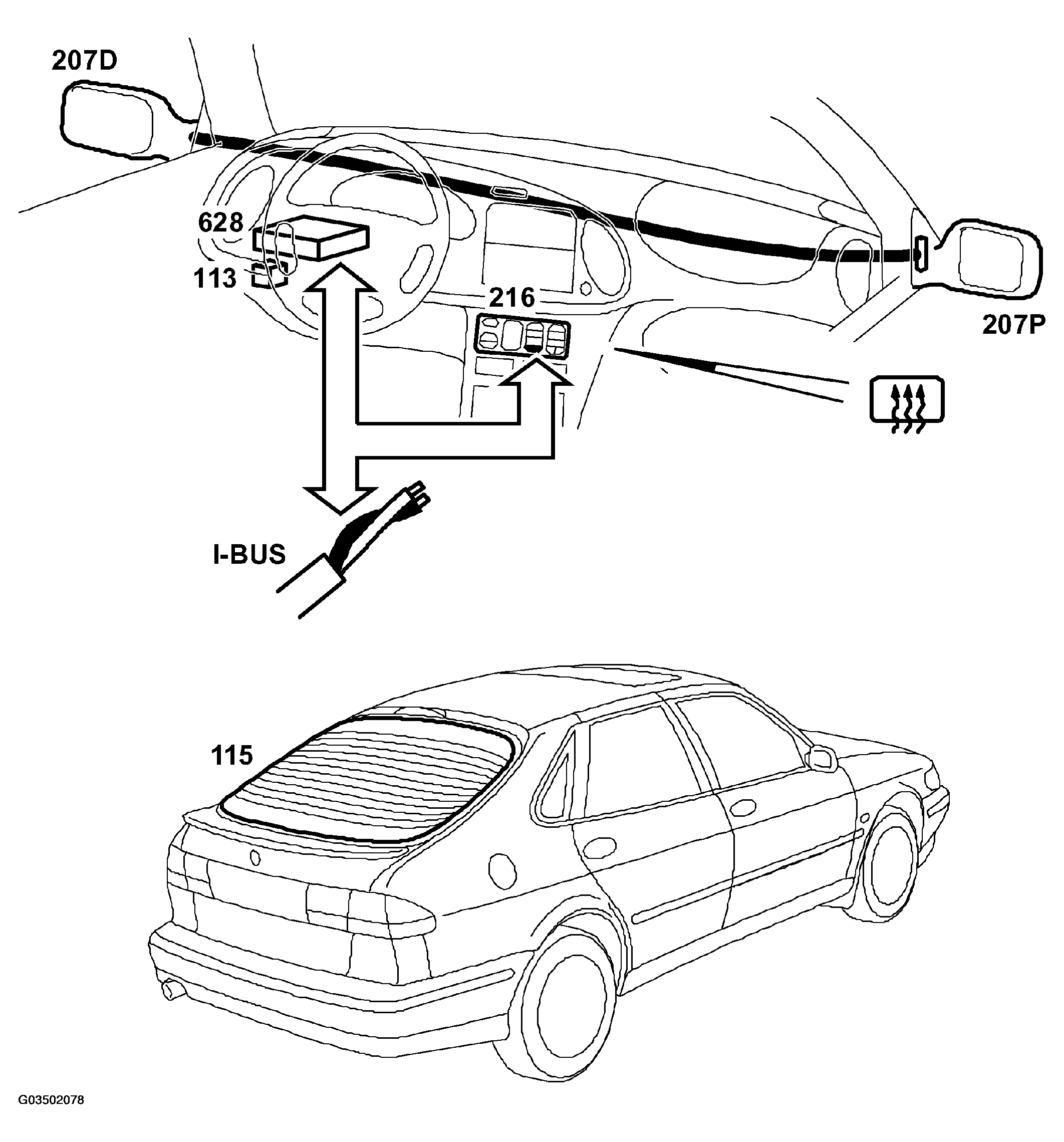

Fig 1: System Overview (Electrically Heated Rear Window And Door Mirrors (Cars With ACC))

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Control module, DICE (628)
• Relay, electrically heated rear window (113)
• Heating element, rear window (115)
• Heating elements, door mirrors (207)
• Control module, ACC (216)
