Main components, electrically heated rear window and door mirrors

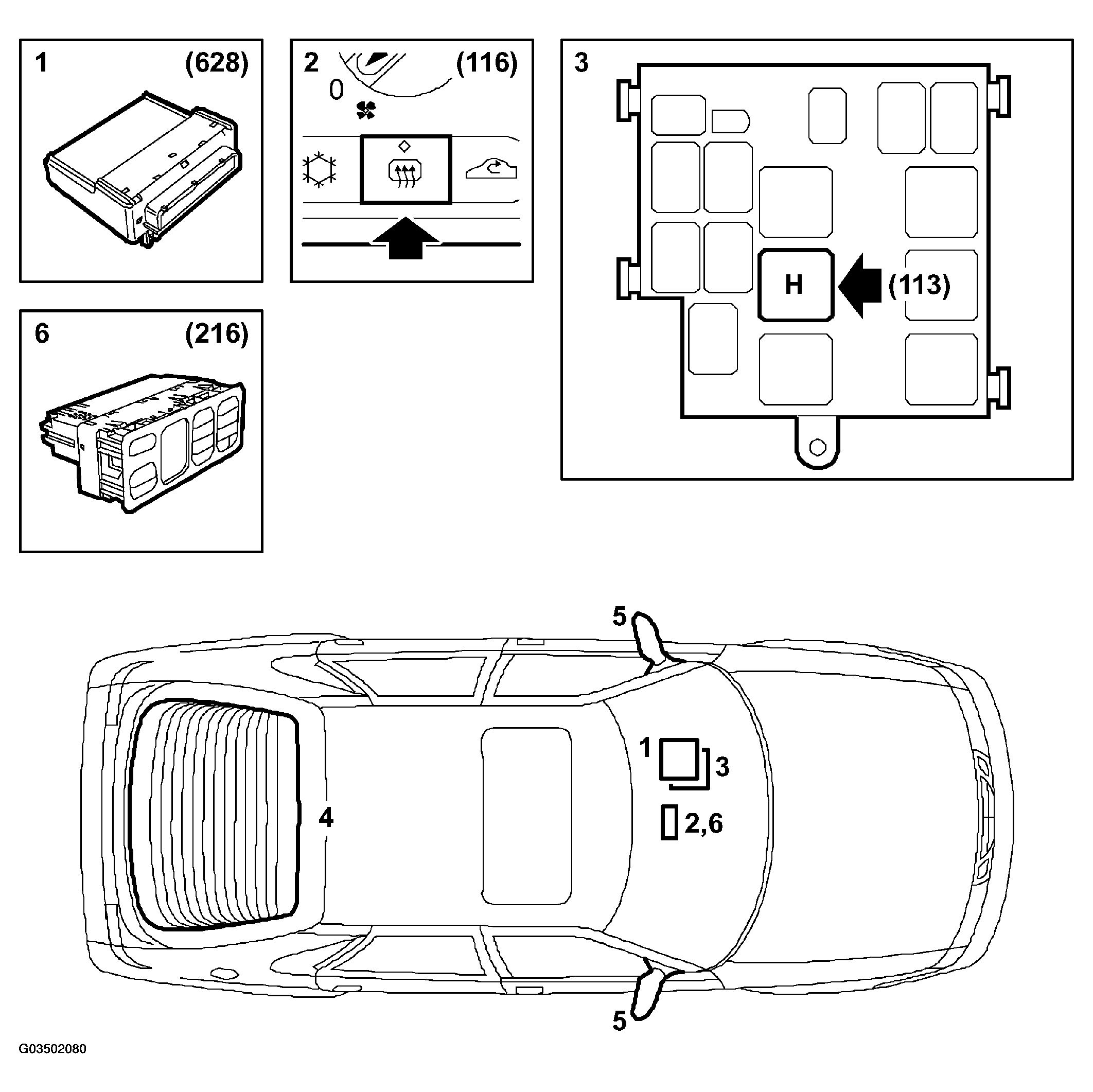

Fig 1: Identifying Main Components (Electrically Heated Rear Window And Door Mirrors)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Control module, DICE (628)
2. Switch, electrically heated rear window (116)
3. Relay, electrically heated rear window (113)
4. Heating element, rear window (115)
5. Heating elements, door mirrors (207)
6. Control module, ACC (216)
