B. Connected components on RHD cars

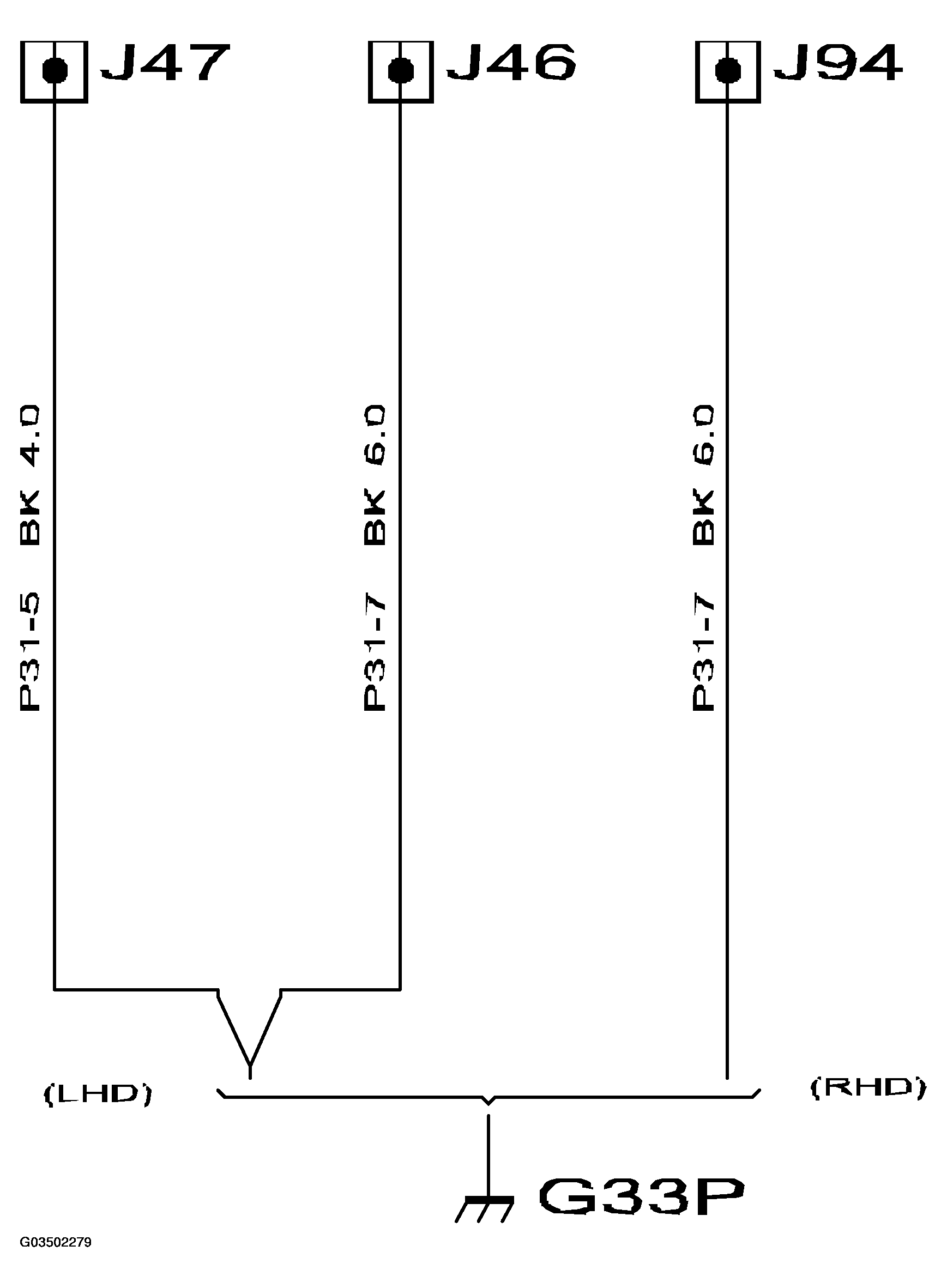

BATTERY GROUNDING COMPONENT CONNECTION SPECIFICATIONS - RHD CARS (G33P)
| Via crimp J94 SPLICES |
|
| 36 | Motor, ventilation fan (not ACC) |
| 42 | Level switch, brake fluid |
| 220 | Control unit, ventilation fan |
| 282 | Switch, headlamp beam adjustment |
| 375 | Connection, mobile telephone |
| 432 | Relay, washer fluid pump |
