Electric motor, central locking system, rear door

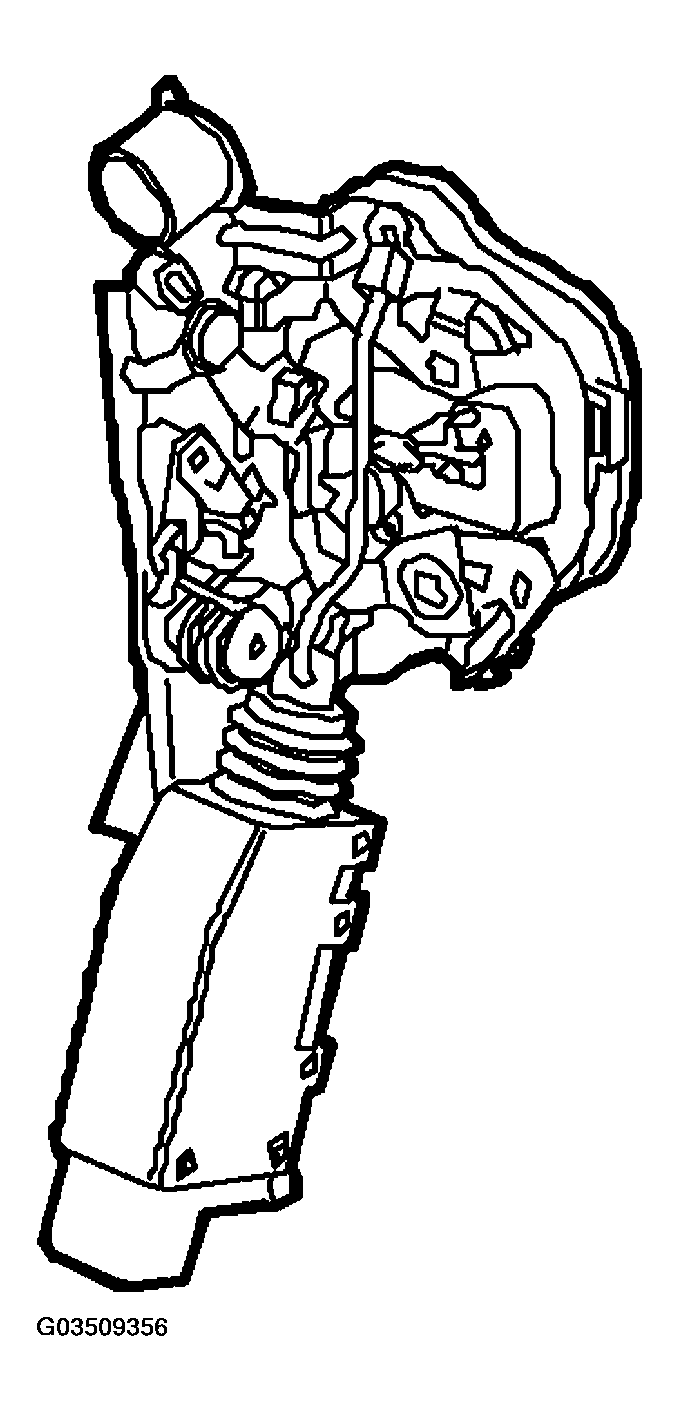

Fig 1: Identifying Central Locking System Electric Motor (Rear Door)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA - CENTRAL LOCKING SYSTEM ELECTRIC MOTOR (REAR DOOR)

Rated voltage	V	12
Current consumption at rated voltage	A	2 (at 23°C, jammed)
Max. current consumption at rated voltage	A	4

IMPORTANT: Electric motor must not be supplied with current for more than 45 seconds, the motor will overheat and malfunction.
