Charge air bypass valve: Notes

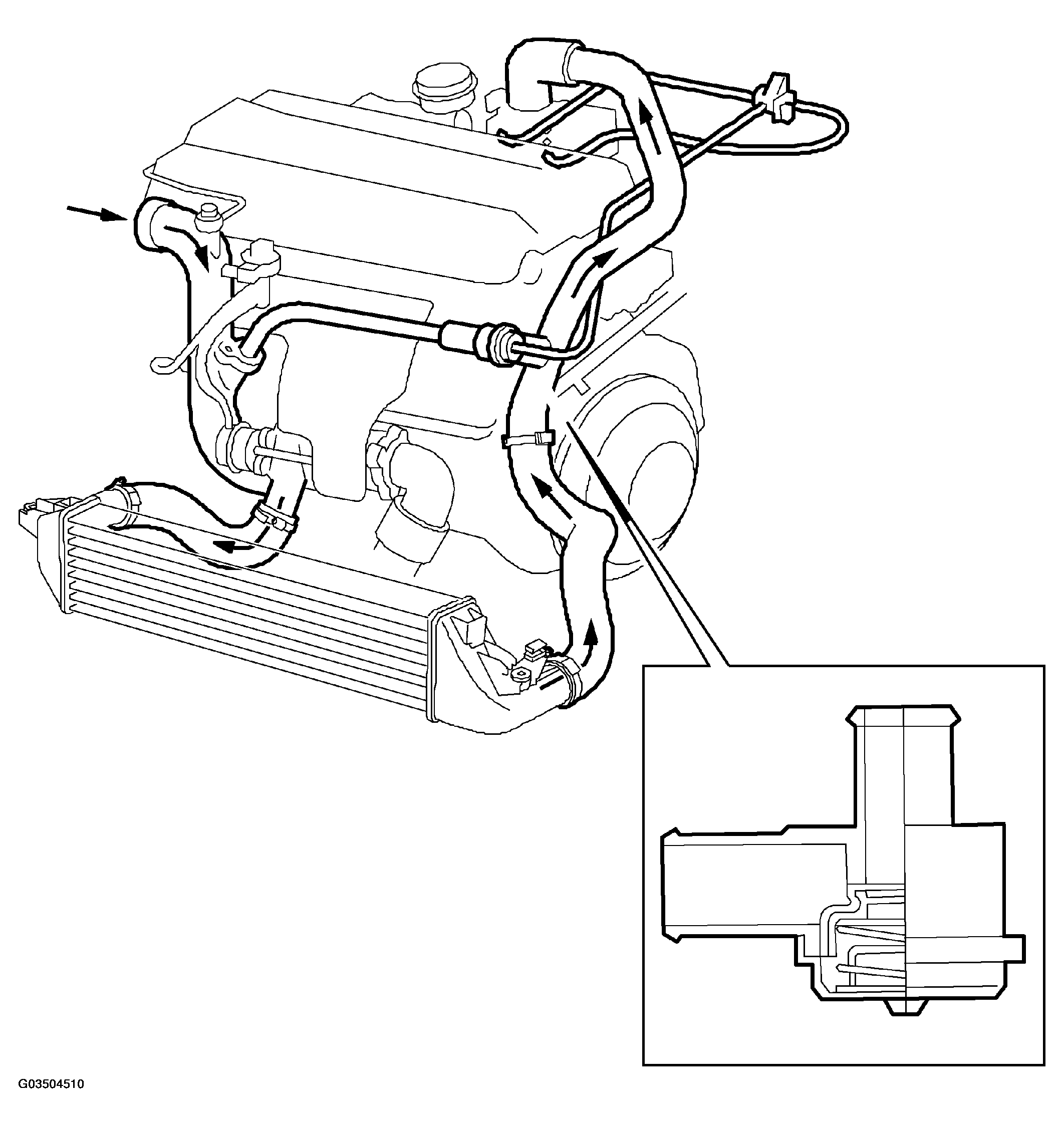

Fig 1: Charging Air Bypass Valve Diagram (With Accelerator Depressed)
G03504510Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Overpressure in the intake manifold
  2. Throttle valve open
  3. Charge air bypass valve closed
