To Remove

  1. Unplug the two-pin connector from the control valve.

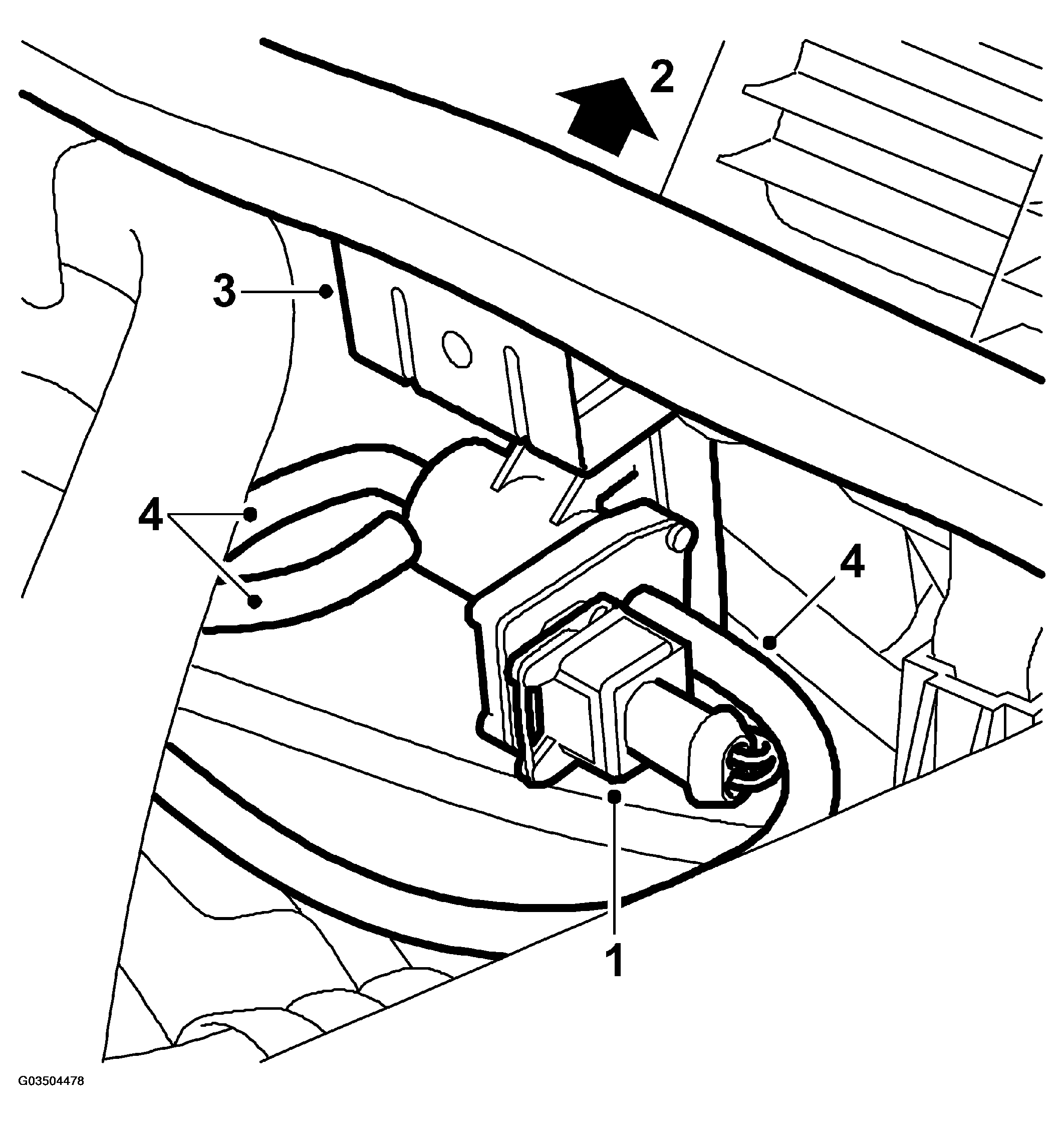

    Fig 1: Illustration For Steps 1-2-3-4
    G03504478Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fold up the bonnet sealing strip by the control valve mounting plate.
  3. Carefully pull the mounting plate outward and unhook it from the edge of the bulkhead. Lift up the unit.
  4. Mark the vacuum hoses and detach them from the valve.
  5. Drill out the pop rivets securing the control valve to the mounting plate.

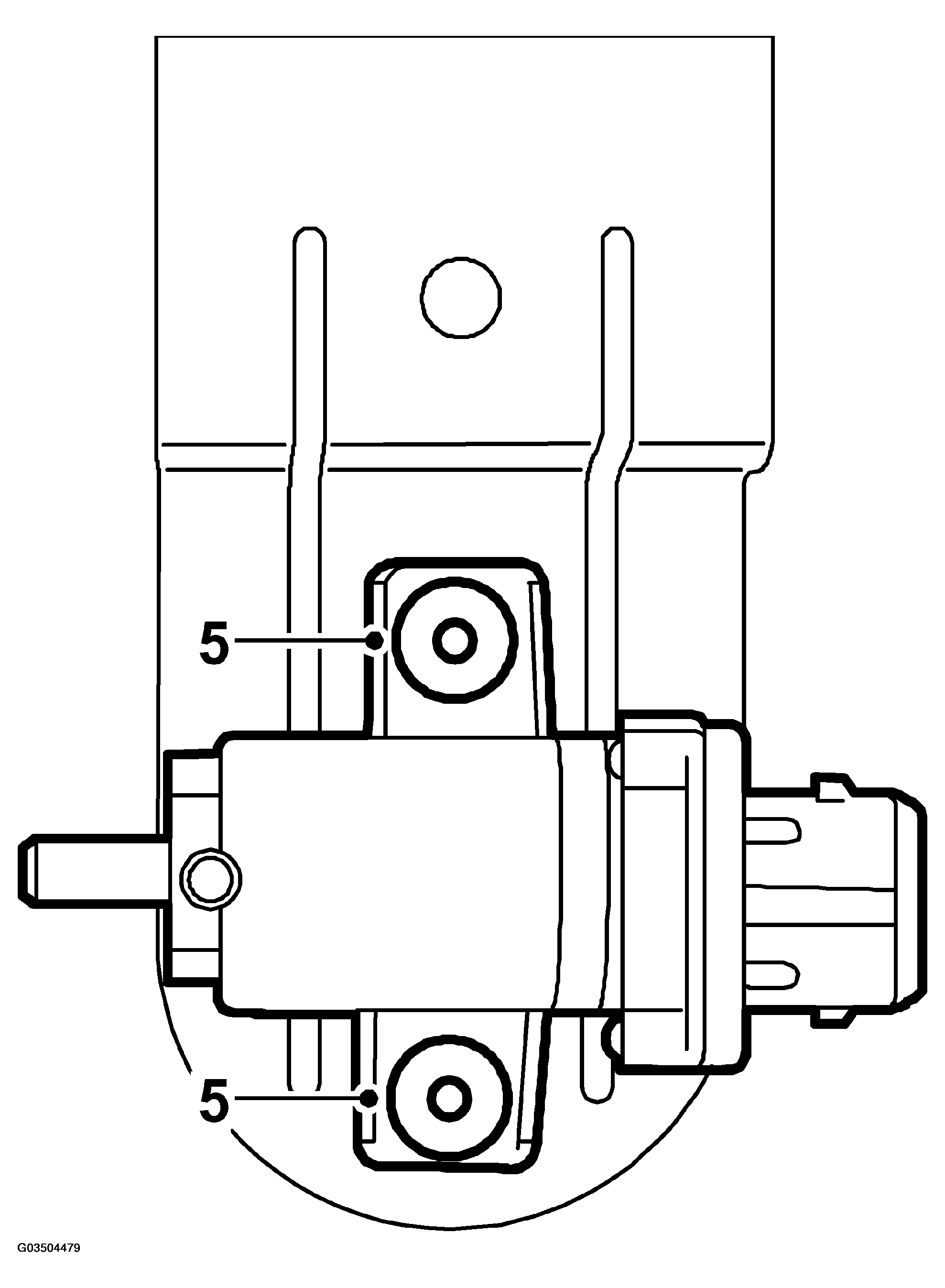

    Fig 2: Illustration For Step 5
    G03504479Courtesy of SAAB-SCANIA OF AMERICA, INC.
