To Fit

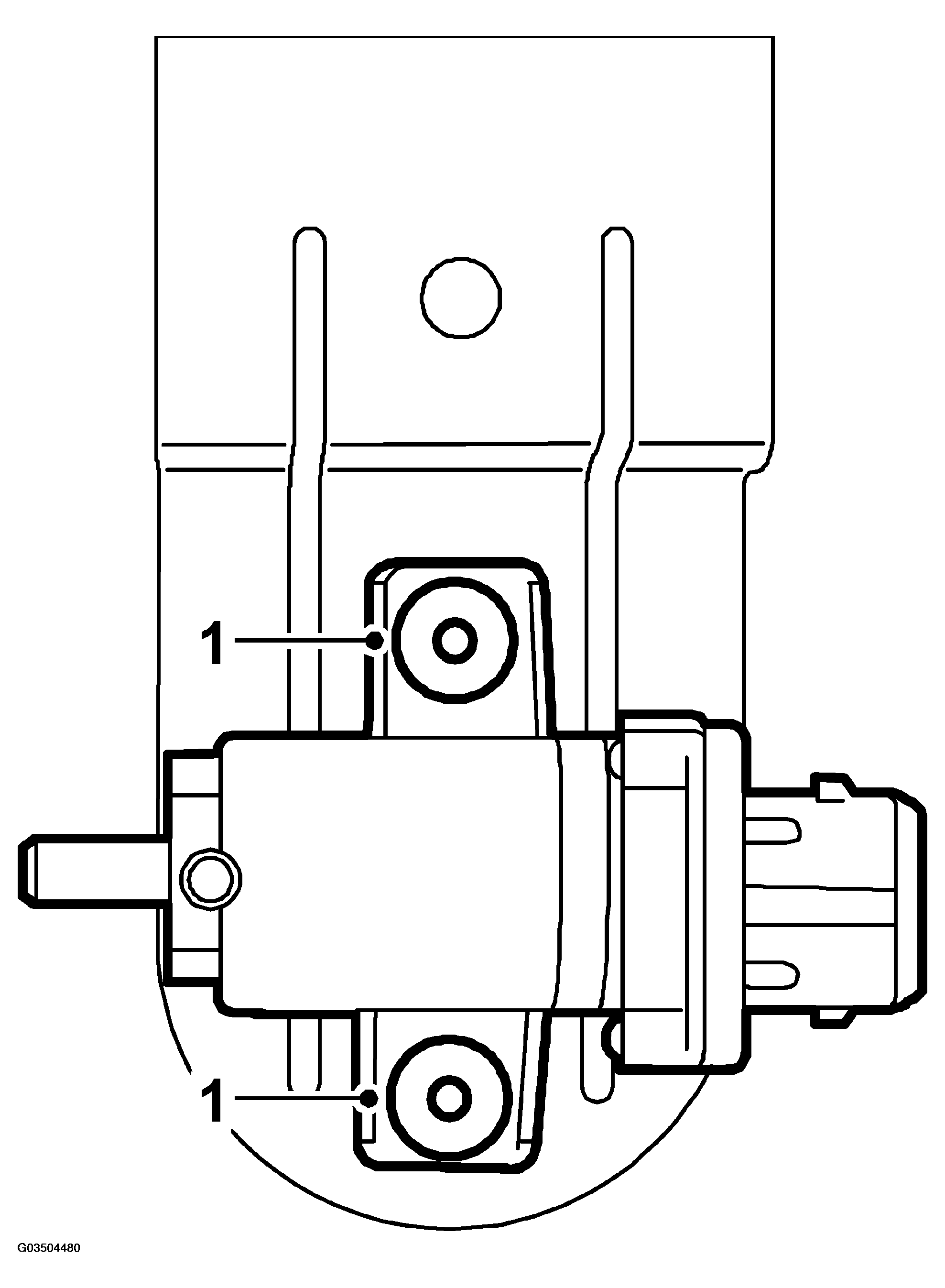

Fig 1: Illustration For Step 1
G03504480Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fasten a new valve to the mounting plate with pop rivets.
  2. Connect the vacuum hoses to the valve.

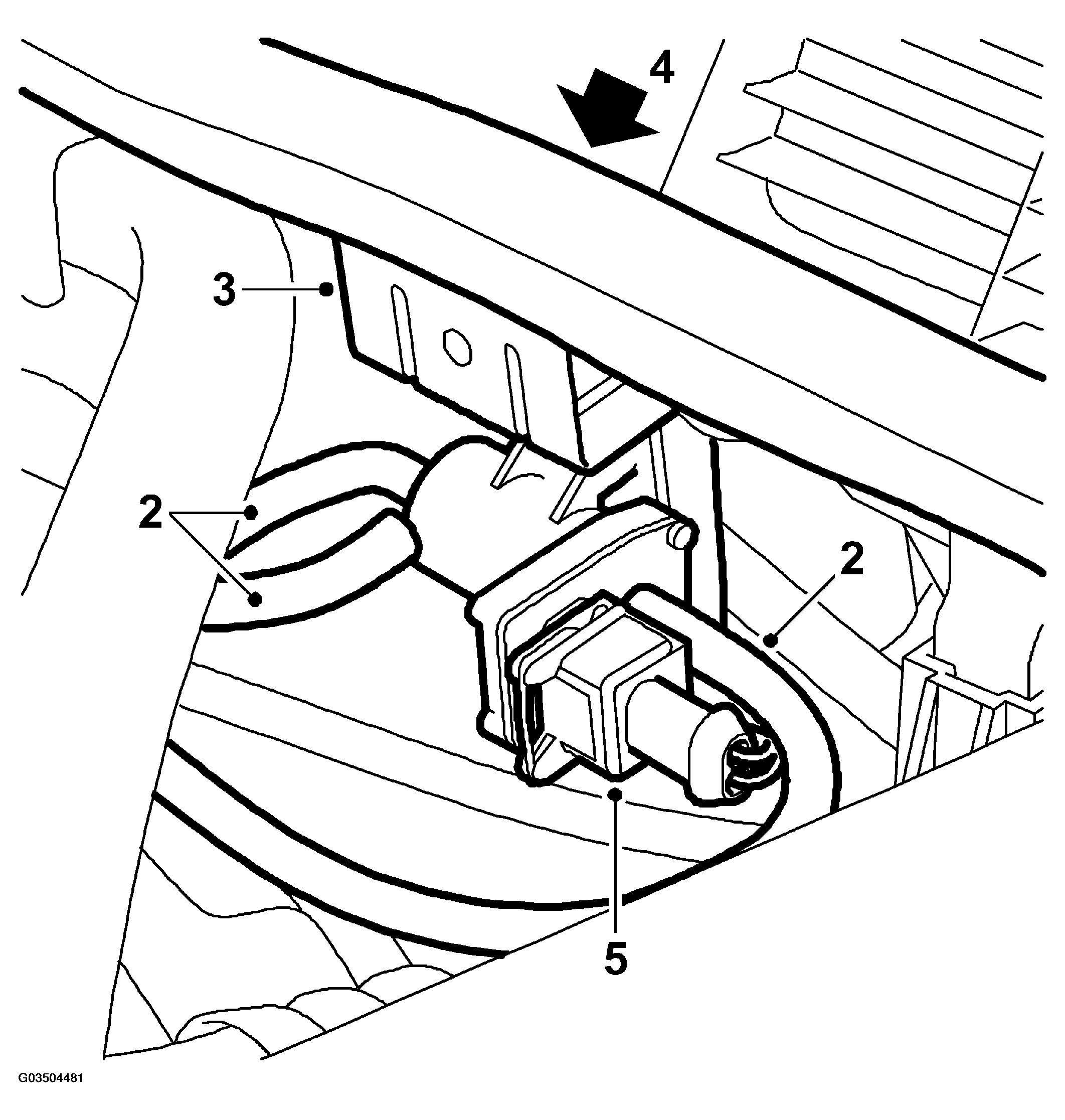

    Fig 2: Illustration For Steps 2-3-4-5
    G03504481Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the mounting plate.
  4. Fit the bonnet sealing strip.
  5. Spray the two-pin connector with Kontakt 61 (part no. 30 04 520) and connect it to the control valve.
