To Remove

  1. Unplug the connector.

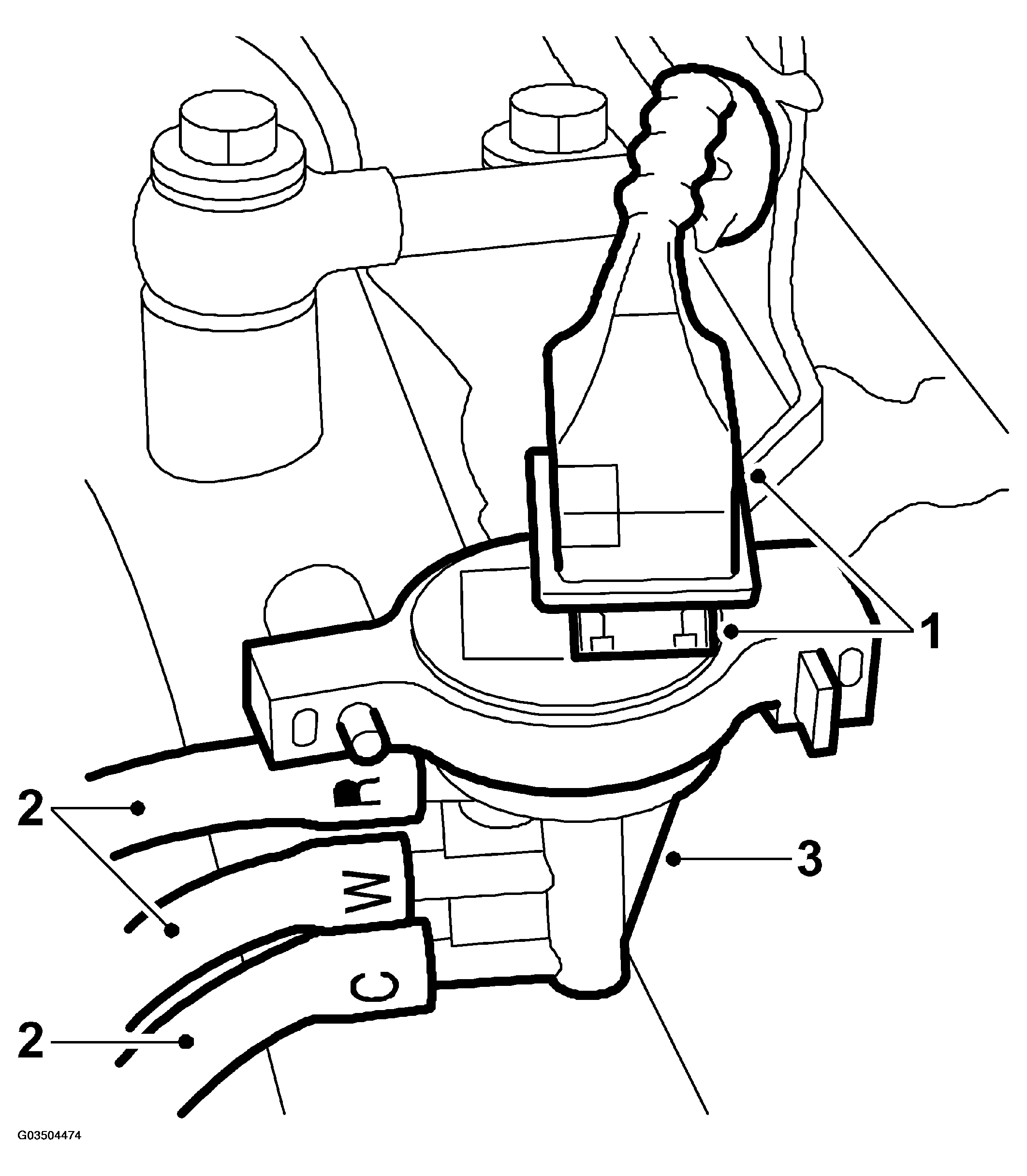

    Fig 1: Illustration For Steps 1-2-3
    G03504474Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Mark the hoses and detach them from the solenoid valve.
  3. Remove the valve from the spring pin and plate bracket.
