To Fit

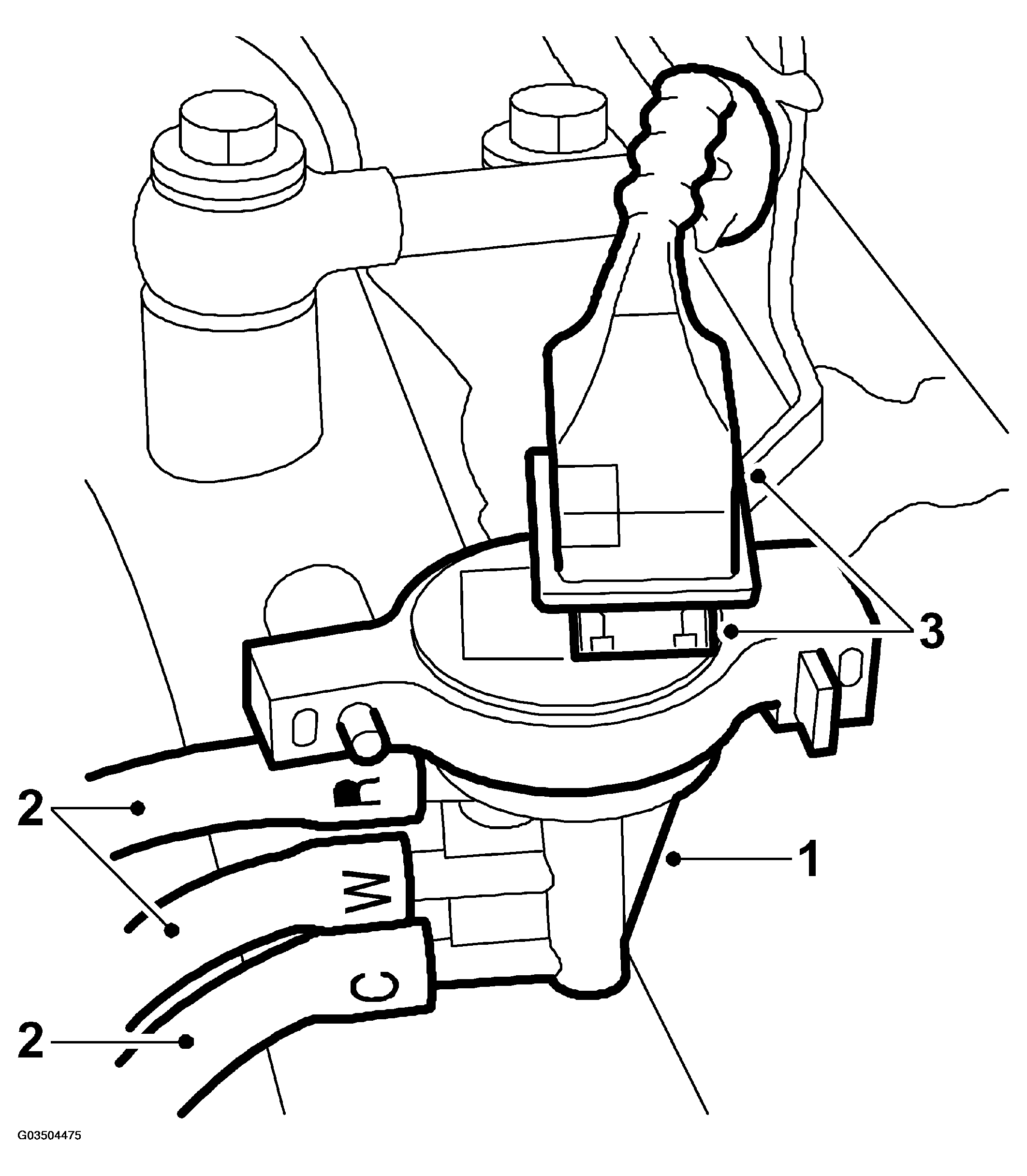

Fig 1: Illustration For Steps 1-2-3
G03504475Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the valve on the plate bracket and then on the spring pin.
  2. Connect the hoses to the solenoid valve. Make sure the markings on the hoses correspond with the markings on the solenoid valve.
  3. Spray the connector with Kontakt 61 (part no. 30 04 520) and plug it in.
