CHECK messages

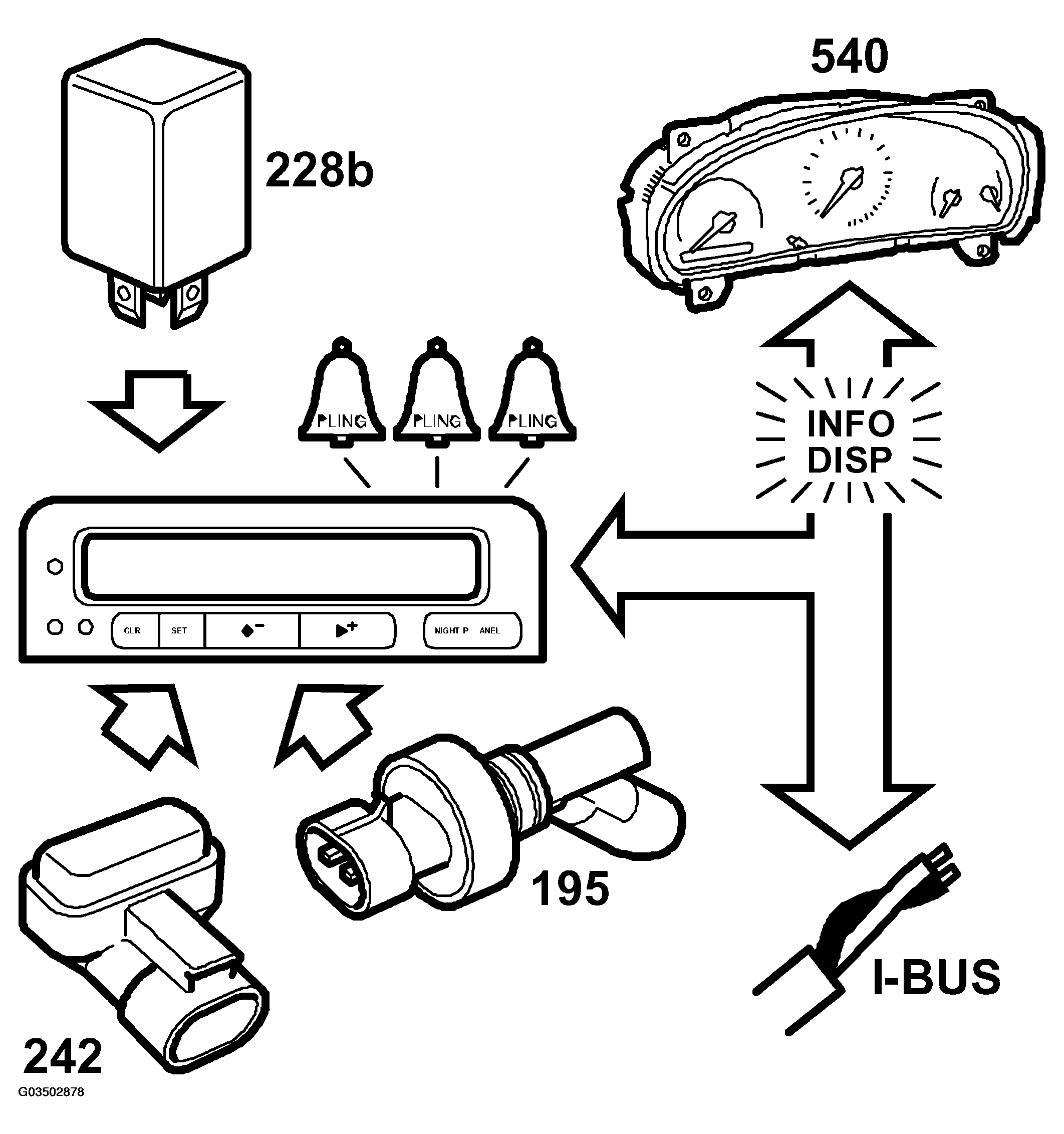

The SID unit can be used by all connected systems to show CHECK messages. When the ignition is turned ON, "CHECKING" appears for approx. 4 seconds, after which a CHECK message is shown if one is active.
The message "KEY NOT ACCEPTED" is displayed without the 4-second delay.
If a CHECK message is initiated, an acoustic signal is heard, the INFO DISPL lamp in the main instrument unit lights and a message is shown. If the message is preceded by a (+) sign, more than one message has been activated.
CHECK messages are shown in the following order of priority:
- KEY NOT ACCEPTED
- CHECK OIL LEVEL
- CHECK SOFT TOP STORAGE
- CLOSE TRUNK LID
- CHECK SOFT TOP LATCHES
- FINISH SOFT TOP MOTION
- CHECK SOFT TOP COVER
- SOFT TOP FAILURE
- CHECK SOFT TOP
- STOP FOR FUEL
- TRANSMISSION OVERHEATING
- BRAKE LIGHT FAILURE
- FRONT LIGHT FAILURE
- FOG LIGHT FAILURE
- REAR LIGHT FAILURE
- WASHER FLUID LEVEL LOW
- FILL COOLANT FLUID
- SERVICE THEFT ALARM
- REPLACE KEY BATTERY
- TIME FOR SERVICE
WASHER FLUID LEVEL LOW is displayed after a 70-second delay and FILL COOLANT FLUID is displayed after a 30-second delay (not when ignition ON "CHECKING").
The driver acknowledges a message by pressing any button except NIGHT PANEL. If more than one message is activated, the next message is displayed in the same way. When a message has been acknowledged, it is not shown again.
